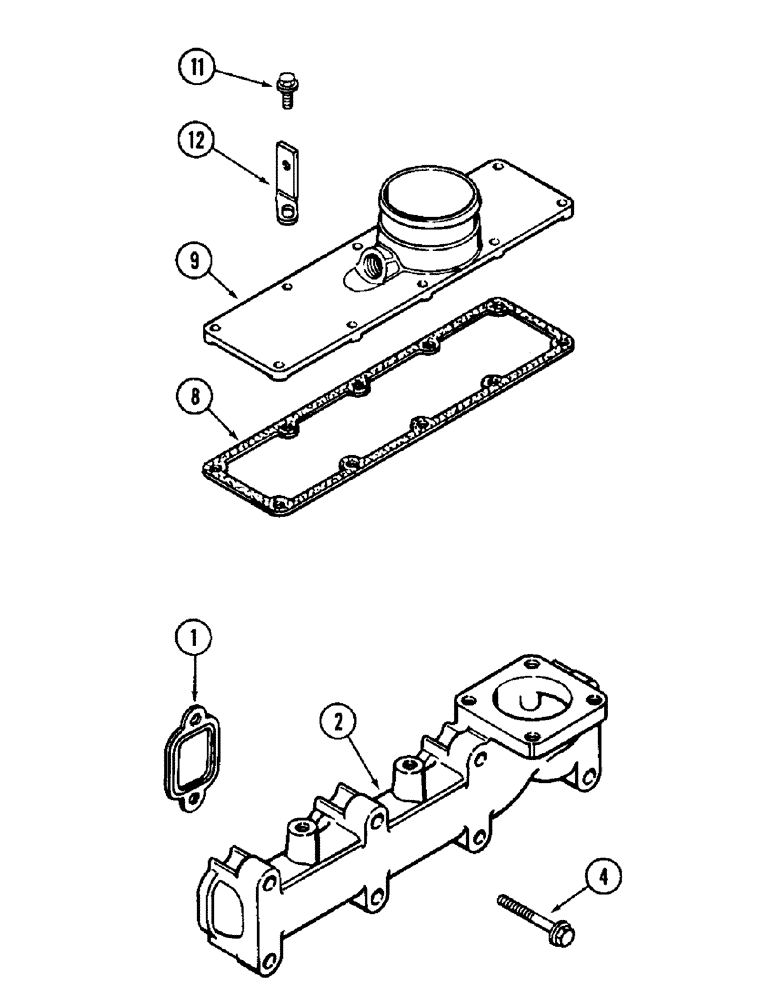

Запчасти Case IH 6500 (2-38) - MANIFOLDS EXHAUST, 4-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

2

J901223

MANIFOLD

- exhaust

1шт.

4

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, M10 x 70 MM

8шт.

8

J914028

GASKET

- intake manfold (Replaces J901999) INTAKE

1шт.

9

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Order A77415 kit) INTAKE

1шт.

11

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- intake manifold INTAKE

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE - fuel tube (See page 3-69) INTAKE

1шт.

A77415

COVER

MANIFOLD KIT - intake INTAKE

1шт.
