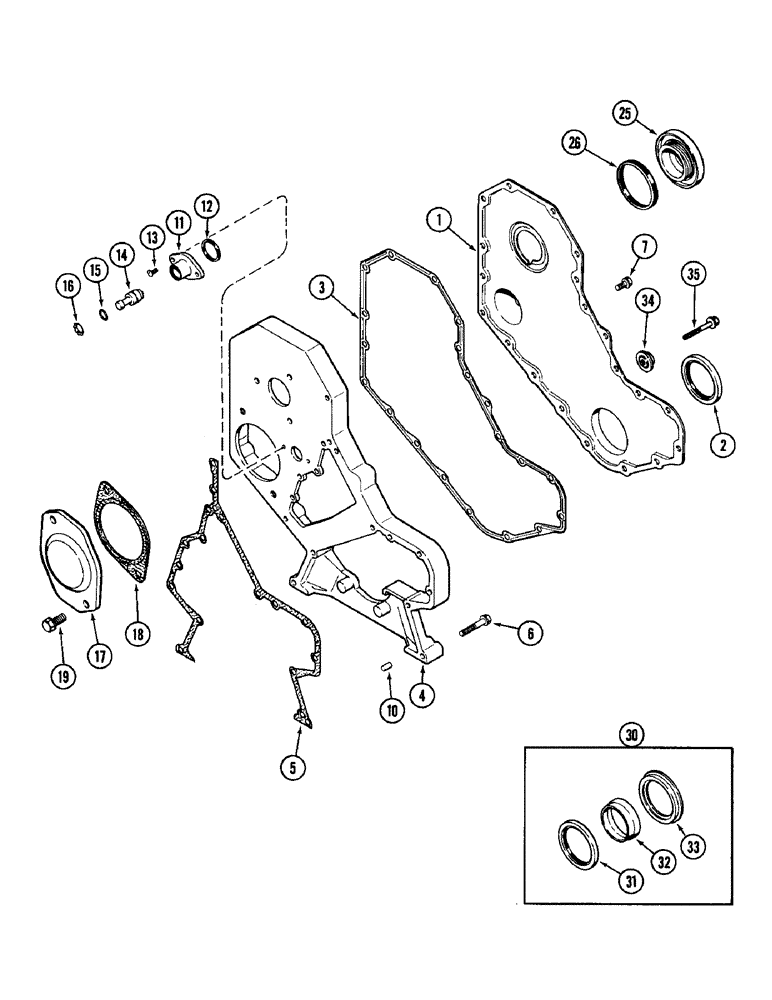

Запчасти Case IH 6500 (2-36) - FRONT GEAR COVER, 4-390 GAS ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order ref 30)

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover (Replaces J910500)

1шт.

4

J910411

HOUSING

- timing gear

1шт.

5

J914384

GASKET

- gear housing (Replaces J907836)

1шт.

6

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

- hex, M8 x 1.25 x 50 MM

11шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

11

J905933

HOUSING

- timing pin

1шт.

12

J905595

GASKET

- pin housing

1шт.

13

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

14

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

15

J903927

O-RING,15.6 mm ID

- sealing

1шт.

16

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

17

J909918

PLATE

- cover, access

1шт.

18

A77441

GASKET

- cover plate

1шт.

19

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - hex flange, M12 x 1.75 x 25 MM

2шт.

25

J903463

PLUG,M63 x 5

- tachometer drive hole

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

30

J904353

GASKET KIT

SEAT KIT - oil, crankshaft front

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

- bolt

1шт.

35

J901446

FLANGE BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

BOLT - hex flange, M8 x 1.25 x 60 MM

1шт.
