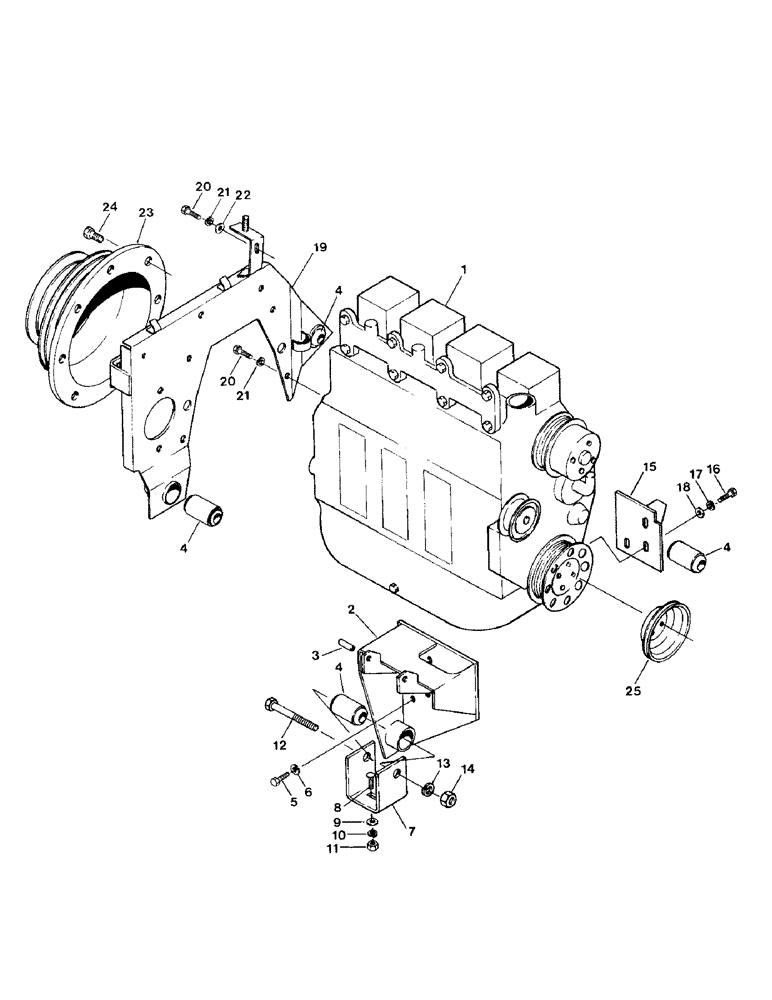

Запчасти Case IH 6500 (2-32) - DIESEL ENGINE MOUNTS AND PULLEYS (02) - ENGINE

1

A174032

ENGINE ASSEMBLY

ENGINE - 4-390 diesel, complete

1шт.

2

1336730C1

BRACKET

MOUNT ASSEMBLY - left front engine (Includes one each of items 3 & 4)

1шт.

3

1336437C1

SPACER

- mount

1шт.

4

825827C1

BUSHING

- rubber

4шт.

5

931843R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

CAPSCREW - hex head, M12 x 30 MM

3шт.

6

933966R1

LOCK WASHER,M12

WASHER - lock, M12

3шт.

7

1336181C1

BRACKET

- engine mount

3шт.

8

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head, square neck, 1/2 NC x 1-1/4 inch

3шт.

9

120396

WASHER

- flat, 17/32 inch I.D.

3шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

12

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

CAPSCREW - hex head, 5/8 NC x 4 inch

4шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

15

1336729C1

BRACKET

MOUNT ASSEMBLY - left rear engine c/w rubber bushing (Includes one of item 4)

1шт.

16

931843R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

CAPSCREW - hex head, M12 x 30 MM

3шт.

17

933966R1

LOCK WASHER,M12

WASHER - lock, M12

3шт.

18

30328R1

WASHER,M13.5 x 24.5 x 3, HT

- flat, M12 I.D.

3шт.

19

1336743C1

PLATE

BACKPLATE ASSEMBLY - c/w rubber bushings (Includes two of item 4)

1шт.

20

931843R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

CAPSCREW - hex head, M12 x 30 MM

9шт.

21

933966R1

LOCK WASHER,M12

WASHER - lock, M12

9шт.

22

30328R1

WASHER,M13.5 x 24.5 x 3, HT

- flat, M12 I.D.

3шт.

23

1336757C2

PULLEY

- flywheel

1шт.

24

1337269C1

BOLT,Hex, 3/8"

SCREW - hex head Whiz-Lock, 3/8 NC x 3/4 inch

8шт.

25

J903826

PULLEY,184.61mm OD

- crank

1шт.
