Запчасти Case IH 6500 (2-26) - OIL PAN AND RELATED PARTS, H225 GAS ENGINE (02) - ENGINE

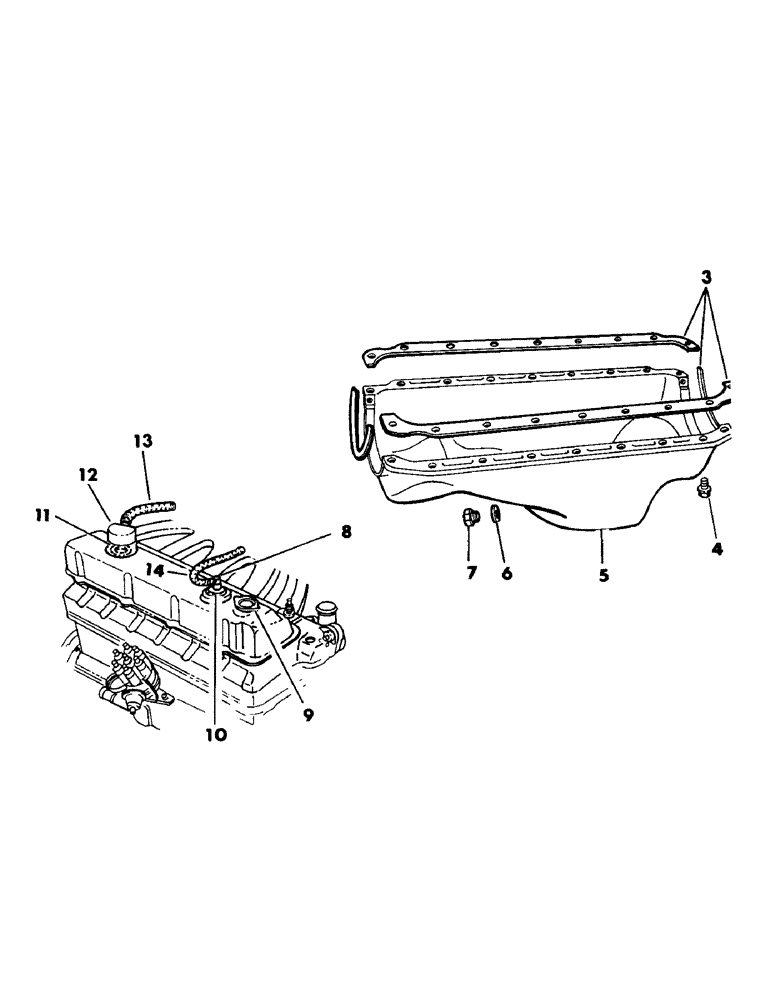

Схема запчастей Case IH 6500 - (2-26) - OIL PAN AND RELATED PARTS, H225 GAS ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

3

81540C1

OIL PAN GASKET SET

GASKET SET - oil pan

1шт.

4

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - oil pan mounting, 5/16 x 9/16 inch

18шт.

4

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

SCREW - oil pan mounting, 5/16 x 13/16 inch

5шт.

5

81539C1

PAN

- oil, rear sump

1шт.

6

830606C1

OIL PAN GASKET SET

- drain plug, 1/2 inch

1шт.

7

445078

PLUG

- oil drain, 1/2 inch

1шт.

8

830581C1

VALVE

- crankcase vent (PCV)

1шт.

9

830580C1

CAP

- oil filter, cylinder head cover

1шт.

10

830579C1

GROMMET

- crankcase vent valve (PCV)

1шт.

11

830578C1

GROMMET

- crankcase vent air cleaner

1шт.

12

AIR CLEANER - crankcase vent, see page 2-6

1шт.

13

HOSE - air cleaner to air intake, see page 2-6

1шт.

14

HOSE - crankcase vent valve to carburetor, see page 3-2

1шт.

Выбрано товаров: 13
