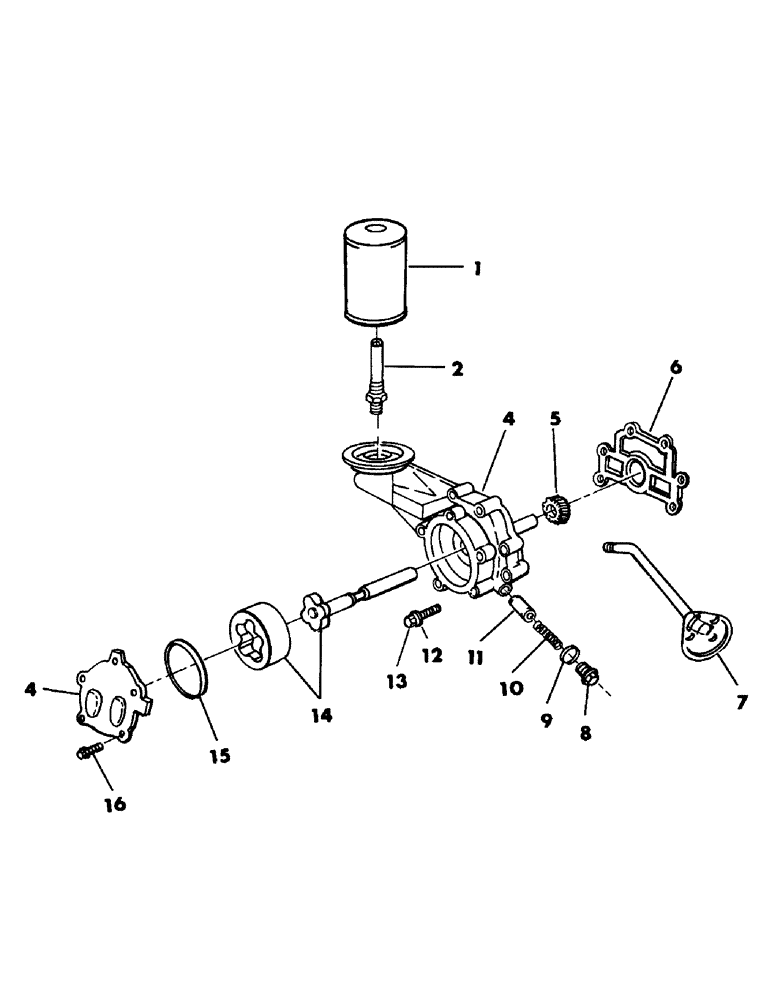

Запчасти Case IH 6500 (2-22) - OIL PUMP, H225 GAS ENGINE (02) - ENGINE

1

FILTER- oil, see page 2-12

1шт.

2

PIPE - stand, oil filter, see page 2-12

1шт.

3

81533C1

PUMP

- oil, includes ref items 5-16

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - oil pump drive

1шт.

6

81535C1

GASKET

- oil pump body

1шт.

7

81537C1

PIPE ASSY.

STRAINER - oil pump suction, rear sump

1шт.

8

830599C1

CAP

- oil pressure relief valve

1шт.

9

830600C1

GASKET

- oil pressure relief valve cap

1шт.

10

830598C1

SPRING

- oil pressure relief valve

1шт.

11

830597C1

PLUNGER

- oil pressure relief valve

1шт.

12

81534C1

WASHER

- oil pump screw

3шт.

13

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW - oil pump attaching, 5/16 x 1-1/2 inch

5шт.

14

NSS

NOT SOLD SEPARAT

SHAFT AND ROTOR PACKAGE

1шт.

15

830593C1

GASKET

- oil pump cover

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Oil pump cover Hex, 1/4"-20 x 3/4", G5, Full Thd

5шт.
