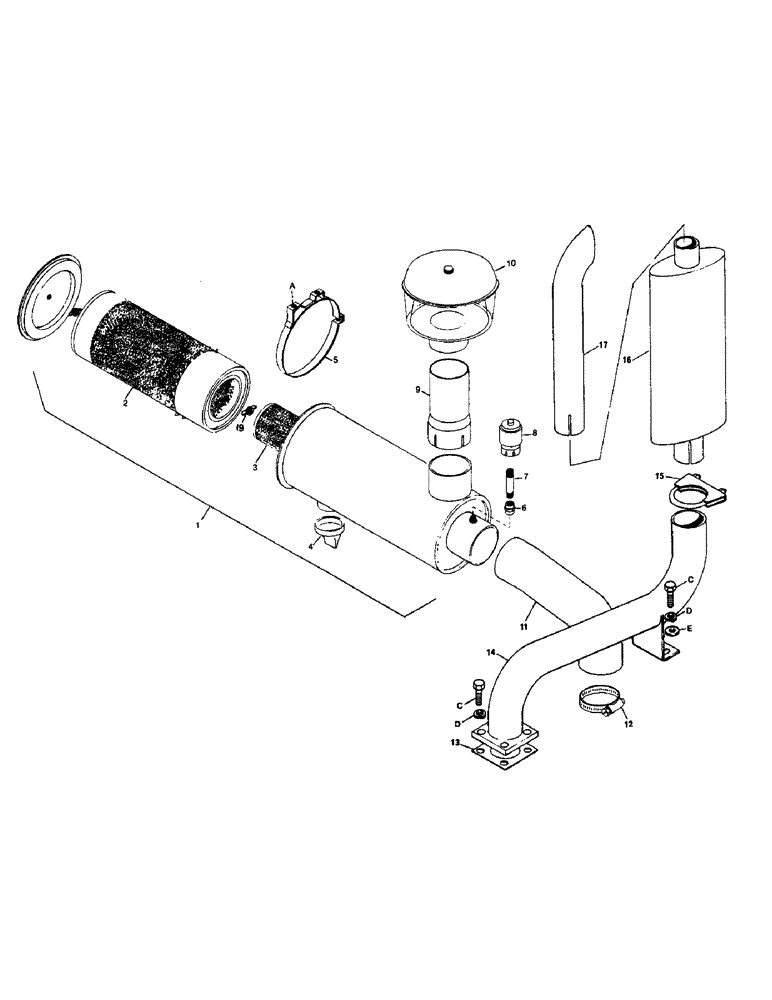

Запчасти Case IH 6500 (2-08) - AIR INTAKE/EXHAUST GROUP, DIESEL ENGINE (02) - ENGINE

1

1336990C1

CLEANER

ASSEMBLY - air (Includes items 2-4)

1шт.

2

1336992C1

ELEMENT

- primary

1шт.

3

1336993C1

ELEMENT

- safety

1шт.

4

625043C1

DUST VALVE

VALVE - vacuator

1шт.

5

1336130C1

BAND

- air cleaner mounting

2шт.

a

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

4шт.

6

444095

COUPLING

CONNECTOR - straight, 1/8-28 inch thread

1шт.

7

120549

NIPPLE - 1/8 NPT x 2-1/2 inch Nipple, 1/8" NPT x 2 1/2"

1шт.

8

366078C1

INDICATOR

- service

1шт.

9

1336761C1

TUBE,76.95 mm ID, 76.4 mm OD, 150 mm Length

- pre-cleaner

1шт.

10

321190R91

CLEANER

PRE-CLEANER - air

1шт.

11

1336762C1

HOSE

- air intake

1шт.

12

27392R1

HOSE CLAMP,#48, 2.56/3.50 Type F Worm, W/liner

CLAMP - hose

3шт.

13

A170151

MANIFOLD GASKET

- exhaust manifold

1шт.

14

1336290C1

PIPE

- exhaust

1шт.

c

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

CAPSCREW - hex head, M10 x 25 MM

6шт.

d

933965R1

LOCK WASHER,M10

6шт.

e

30282R1

WASHER,M10 x 20 x 2

- flat, M10 I.D.

2шт.

15

A62874

CLAMP

- muffler

2шт.

16

A173648

ARRESTER

MUFFLER - exhaust

1шт.

17

L74728

PIPE

- tail

1шт.

19

1336125C1

NUT

- wing

2шт.
