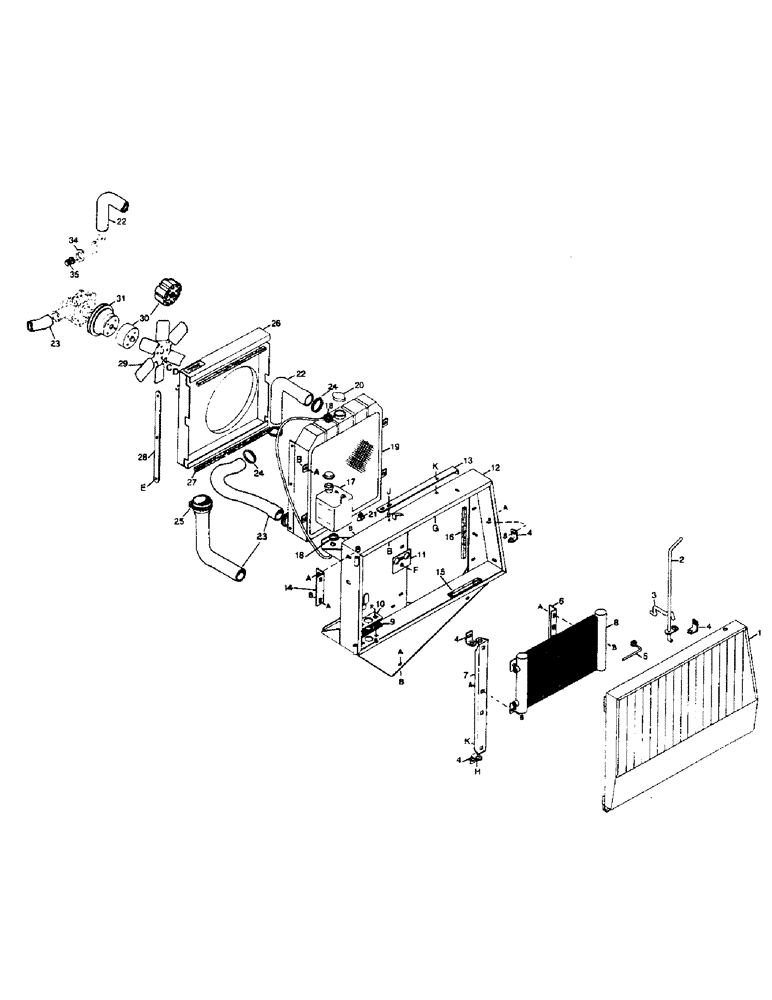

Запчасти Case IH 6500 (2-02) - COOLING GROUP, GAS AND DIESEL ENGINES (02) - ENGINE

1

1334054C1

SCREEN

- radiator

1шт.

2

1334055C1

LATCH

- screen

1шт.

3

1334056C1

CATCH

ROD - latching, screen

1шт.

4

1334045C1

ANGLE

- hinge

4шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head, square neck, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

5

1334040C1

RETAINER

- cooler

1шт.

6

1334043C1

ANGLE

MOUNT - cooler

1шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head, square neck, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

7

1334044C1

BRACKET

- hinge

1шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head, square neck, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

h

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8 NC x 1 inch

2шт.

k

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

8

See traction drive and header lift hydraulics

1шт.

9

1334047C1

PROTECTOR

- hose

1шт.

10

1334048C1

BAR

BACKPLATE - protector, hose

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

f

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head, square neck, 3/8 NC x 1 inch

2шт.

11

1334042C1

BAR

BACKPLATE - A.C. hose protector see air conditioning for hose protector

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

f

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head, square neck, 3/8 NC x 1 inch

2шт.

12

1334039C1

HOUSING

MOUNT - radiator c/w decal & sponge stripping (Includes item 16)

1шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head, square neck, 3/8 NC x 3/4 inch

2шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

13

1334050C1

GUIDE

- mount, radiator

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

j

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

g

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head, square neck, 3/8 NC x 1-1/2 inch

1шт.

k

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

14

1334046C1

ANGLE

SUPPORT - radiator mount

1шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head, square neck, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

15

1334049C1

SEAL

- screen

1шт.

16

1334041C1

SEAL

SPONGE - stripping

1шт.

17

1334071C1

KIT

BOTTLE - recovery, coolant

1шт.

18

930548R1

BOLT

CLAMP - hose

2шт.

19

1334072C1

RADIATOR

- coolant

1шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

20

1334074C1

CAP

- radiator (Continued from page 2-2)

1шт.

21

103647

VALVE

- drain 1/4 NPT

1шт.

22

1334051C1

RADIATOR HOSE

- Top - Gas engine

1шт.

22

1334080C1

HOSE

- top radiator - diesel engine

1шт.

23

1334081C1

RADIATOR HOSE

- Lower - Gas engine

1шт.

23

1334082C1

RADIATOR HOSE,44.00 mm ID, 60.00 mm ID x 295.00 mm, SAE 20R4

- Lower - Diesel engine 44.00 mm ID, 60.00 mm ID x 295.00 mm, SAE 20R4

1шт.

24

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - hose, gear type, 2-1/2 inch max. dia. (3 req'd for diesel engine)

4шт.

25

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

gear type (Not req'd for gas engine) #36, 1.81/2.75 Type F Worm

1шт.

26

1334083C1

SHROUD ASSY.

SHROUD - fan c/w decal & sponge stripping - gas engine (Includes item 27)

1шт.

26

1334084C1

SHROUD ASSY.

SHROUD - fan c/w decal & sponge stripping - diesel engine (Includes item 27)

1шт.

27

1334052C1

SEAL

SPONGE - stripping

2шт.

28

1334053C1

STRAP

- fan shroud

2шт.

e

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

6шт.

29

1334075C1

FAN

- gas engine

1шт.

A173545

FAN

- diesel engine

1шт.

c

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Gas engine 5/16"

4шт.

196-1

WASHER,13/32" x 13/16" x .089", HDN

- hardened - diesel engine

4шт.

d

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

CAPSCREW - hex head, 5/16 NC x 2-1/2 inch - gas engine

4шт.

CAPSCREW - hex head, M10 x 90 MM - diesel engine

4шт.

30

1334076C1

SPACER

- fan - gas engine

1шт.

30

A173331

SPACER

- fan - diesel engine

1шт.

31

1334077C1

PULLEY

- water pump - gas engine

1шт.

34

830516C1

GASKET

- thermostat - gas engine

1шт.

35

1334079C1

THERMOSTAT

- 180 degrees F (82 degrees C) - gas engine

1шт.
