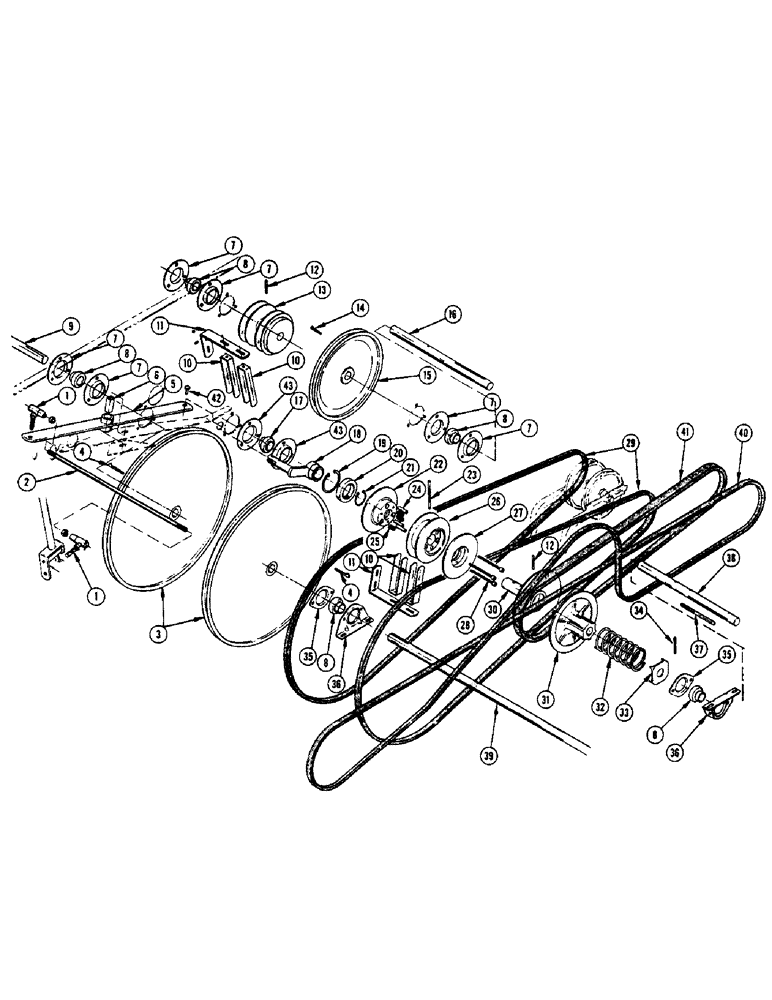

Запчасти Case IH 650 (10) - TRANSMISSION, DRIVE AND TRIM STEERING

1

FH721142

JOINT - ball

2шт.

2

FH318014

ROD

1шт.

3

FH296640

SHEAVE - 23" dia.

2шт.

4

FHO61739

KEY

- gib 1/4" x 1/4" x 2-1/4"

2шт.

5

FH317891

PIVOT - trim seating

1шт.

6

FH317933

SPACER - 2" long

1шт.

7

O650CB

X

FLANGE

4шт.

8

N3382

BALL BEARING

BEARING

5шт.

N3384

COLLAR CLAMP

COLLAR

1шт.

9

FH320614

SHAFT - drive, R.H.

1шт.

10

FH318121

GUIDE - (Replaced by FH384040 when exhausted)

4шт.

FH384040

GUIDE - (Replaces FH318121 when exhausted)

4шт.

11

FH318113

BRACKET - guide

2шт.

12

135-90

PULLEY

GROOVE PIN - 5/16" x 2"

2шт.

13

FH318360

SHEAVE - double, 5-7/8" dia.

1шт.

14

FHO61622

KEY

- gib, 1/4" x 1/4" x 1-1/2"

1шт.

15

FH297127

SHEAVE - 13-1/2" dia.

1шт.

16

FH318402

SHAFT - reverse

1шт.

17

F7481

BEARING, BALL

BEARING

1шт.

N3384

COLLAR CLAMP

COLLAR

1шт.

18

F317701

BRACKET - bearing

1шт.

19

49477

RING, SNAP

3.156", Int, #315

1шт.

20

FHO50500

BEARING

1шт.

21

100-11196

SNAP RING,#196, Ext

Ring, Snap, #196, Ext

1шт.

22

FH317941

HALF SLEEVE - R.H.

1шт.

23

13-580

X,Hex, 5/16" - 18 x 5", Gr 5

BOLT - 5/16" x 5" N.C. hex, nut and l. w.

1шт.

24

FH318006

SPACER - 1-1/2" long

3шт.

25

FHO58487

SPRING - (Replaced by FH440354 when exhausted)

6шт.

25

FH440354

SPRING - (Pkg. of 6) (Replaces FHO58487 when exhausted)

1шт.

26

FH317966

SHEAVE - spool

1шт.

27

FH317958

HALF SHEAVE - L.H.

1шт.

28

61-548

HEX SOC SCREW,5/16"-18 x 3"

- 5/16" x 3" hex. socket hd.

3шт.

29

FHO57505

V-BELT

Transmission, Replaced by FH855106 When Exhausted

2шт.

29

FH855106

BELT

Transmission, Replaces FHO57505 When Exhausted

2шт.

30

FH318386

VARI-SHEAVE - stationary

1шт.

31

FH297457

VARI-SHEAVE - floating

1шт.

32

FHO58453

SPRING

1шт.

33

FH297267

RETAINER

1шт.

34

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

1шт.

35

FH710293

FLANGE

2шт.

36

FH710541

FLANGE

2шт.

37

FH761015

KEY - 6-5/8" long

1шт.

38

FH318394

SHAFT - forward drive (Replaced by FH383893 when exhausted)

1шт.

FH383893

SHAFT - forward drive (Replaces FH318394 when exhausted)

1шт.

39

FH320606

SHAFT - drive, L.H.

1шт.

40

FHO57497

V-BELT - reverse

1шт.

41

FHO57356

BELT - vari drive (Replaced by FHO57760 when exhausted)

1шт.

FHO57760

BELT - vari drive (Replaces FHO57356 when exhausted)

1шт.

42

FHO63594

CLEVIS

PIN - 3/8" x 1-1/4"

1шт.

43

O4210CS

FLANGE

2шт.
