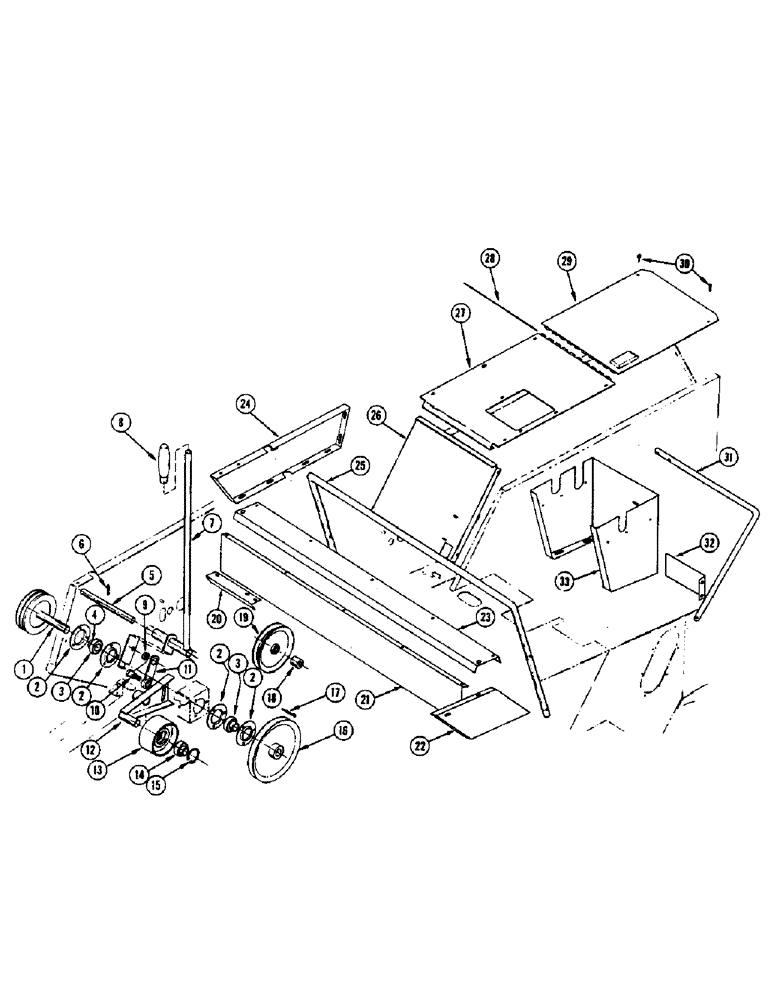

Запчасти Case IH 650 (04) - OPERATORS PLATFORM AND HEADER CLUTCH

1

FH295428

JACKSHAFT - double sheave

1шт.

2

B18282

FLANGE

4шт.

3

F82057

BEARING

2шт.

4

F62108

COLLAR

1шт.

5

FH317800

SHAFT

1шт.

6

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

7

FH317529

LEVER - header clutch

1шт.

8

FHO27086

X

GRIP

1шт.

9

K8171

BUSHING

1шт.

10

FH320333

BOLT - bushing

1шт.

11

FH317560

LINK

1шт.

12

FH295451

ARM - pivot

1шт.

13

FH296145

IDLER - flat

1шт.

14

F40948

BEARING

1шт.

15

A31708

RING - retainer

1шт.

16

FHO54551

SHEAVE - 10" dia.

1шт.

17

FHO61739

KEY

- gib 1/4" x 1/4" x 2-1/4"

1шт.

18

FH159707

SPACER

1шт.

19

FHO53538

PULLEY

V-IDLER

1шт.

20

FH322701

TRIM

1шт.

21

FH322784

PANEL - front

1шт.

22

FH322743

PANEL - L.H.

1шт.

23

FH322776

PANEL - top front

1шт.

24

FH322750

PANEL - R.H.

1шт.

25

FH322735

RAIL - guard

1шт.

26

FH317297

SHIELD

1шт.

27

FH317255

COVER - front, transmission

1шт.

28

FH317818

PIN - hinge

1шт.

29

FH317271

COVER - rear, transmission

1шт.

30

FH701565

SCREW - 1/4" x 3/4" self-tap type F

9шт.

31

FH323121

RAIL - guard

1шт.

32

FH322768

BAFFLE

1шт.

33

FH323089

MOUNT - seat

1шт.

B12470

CHAIN (AG)

CHAIN SECTION - (50 links #40 roller chain)

1шт.

B12474

CHAIN (AG)

CHAIN SECTION - (50 links #50 roller chain)

1шт.

B12477

CHAIN (AG)

CHAIN SECTION - (6 links #50 roller chain)

1шт.

B12501

LINK

- connecting, #40 roller chain

1шт.

B12502

OFFSET LINK

LINK - offset, #40 roller chain

1шт.

B12504

CLIP - lock spring, for #40 conn. link

1шт.

B13030

HARDWARE

ROLLER CHAIN - 10 ft. roll, #40 (240 links)

1шт.

B13031

CHAIN (AG)

ROLLER CHAIN - 10 ft. roll, #50 (192 links)

1шт.

FHO86462

LINK - double chain connector, #40

1шт.

FHO86470

LINK - double chain offset, #40

1шт.

F94699

CONNECTOR, ELEC

LINK - connecting, with "S" cotters, #50 roller chain

1шт.

FHO86454

CHAIN - conditioner drive (Use 2-B12474, 1-B12477 #50) (105 riveted, 1 conn.)

1шт.

FHO86595

CHAIN - drive wheel (#40 double roller) (187 riveted, 1 conn. 3 offset)

2шт.

FHO86629

CHAIN - reel drive (Use 1-B12470, 1-B12502 #40) 48 riveted, 1 offset, 1 conn.)

1шт.

FHO55228

BELT - reel drive

1шт.

FHO57356

BELT - vari drive (Replaced by FHO57760 when stocks are exhausted)

1шт.

FHO57497

BELT - reverse

1шт.

FHO57505

V-BELT

Transmission, Replaced by FH855106 When Exhausted

2шт.

FHO57539

BELT

Round Section, Sickle drive

1шт.

FHO57760

BELT - vari drive (Replaces FHO057356 when stocks are exhausted)

1шт.

FH297481

BELT - clutch (Matched set of 2) (Replaced by FH384149 when exhausted)

1шт.

FH384149

SET OF 2 BELTS

BELT - clutch (Matched set of 2) (Replaces FH297481 when exhausted)

1шт.

FH855106

BELT

Transmission, Replaces FHO57505 When Exhausted

2шт.

FH855205

BELT

Clutch, Power Band, Replaces FH384149 When Exhausted

1шт.
