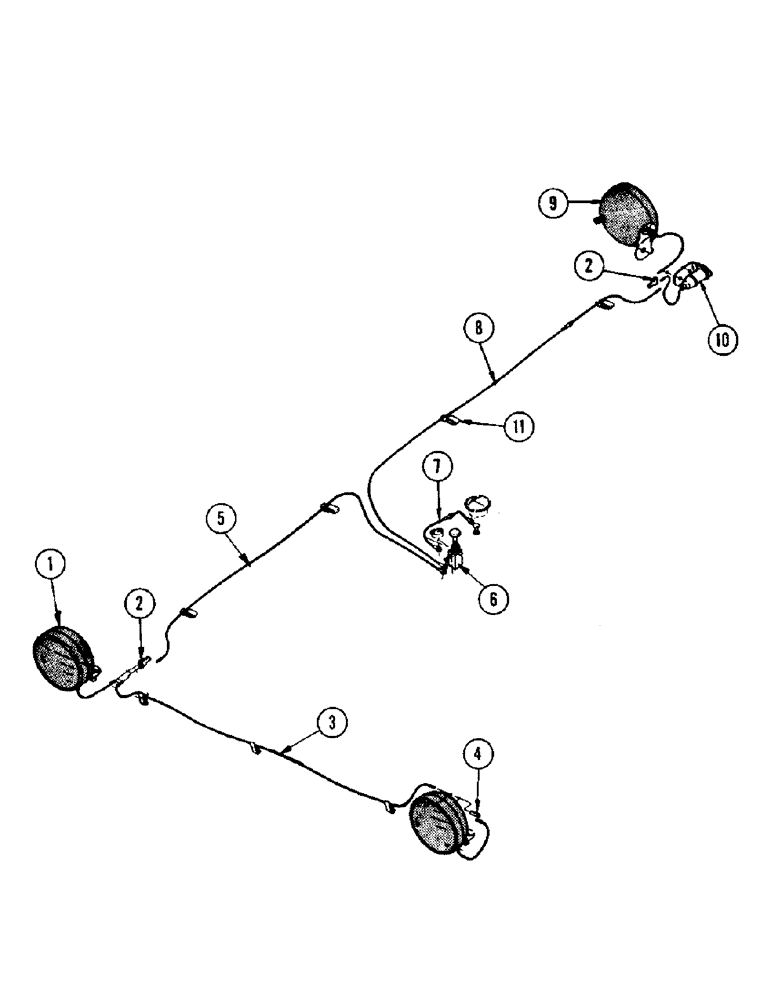

Запчасти Case IH 650 (30) - LIGHTING ATTACHMENT

1

FHO41624

LAMP - head

2шт.

2

FHO41681

CONNECTOR - 3 way

2шт.

3

FH721175

WIRE -, Serial Range: headlamp-headlamp

1шт.

4

FHO41145

CONNECTOR

1шт.

5

FH720250

WIRE -, Serial Range: headlamp-switch

1шт.

6

FHO41137

SWITCH

1шт.

7

FH720243

WIRE - switch to ammeter (w/fuse)

1шт.

223-9

FUSE,9 Amp, Type SFE

- 9 amp

1шт.

8

FH721167

WIRE - switch to tail lamp socket (w/fuse)

1шт.

223-10

FUSE,10 Amp, Type 3AG

- 10 amp

1шт.

9

FH720292

LAMP - tail

1шт.

10

A8170

SOCKET

- outlet

1шт.

11

FHO41152

CLIP - wire

7шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2 rhd.

2шт.

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

2шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

195-104

WASHER,3/8"

- flat 3/8"

3шт.
