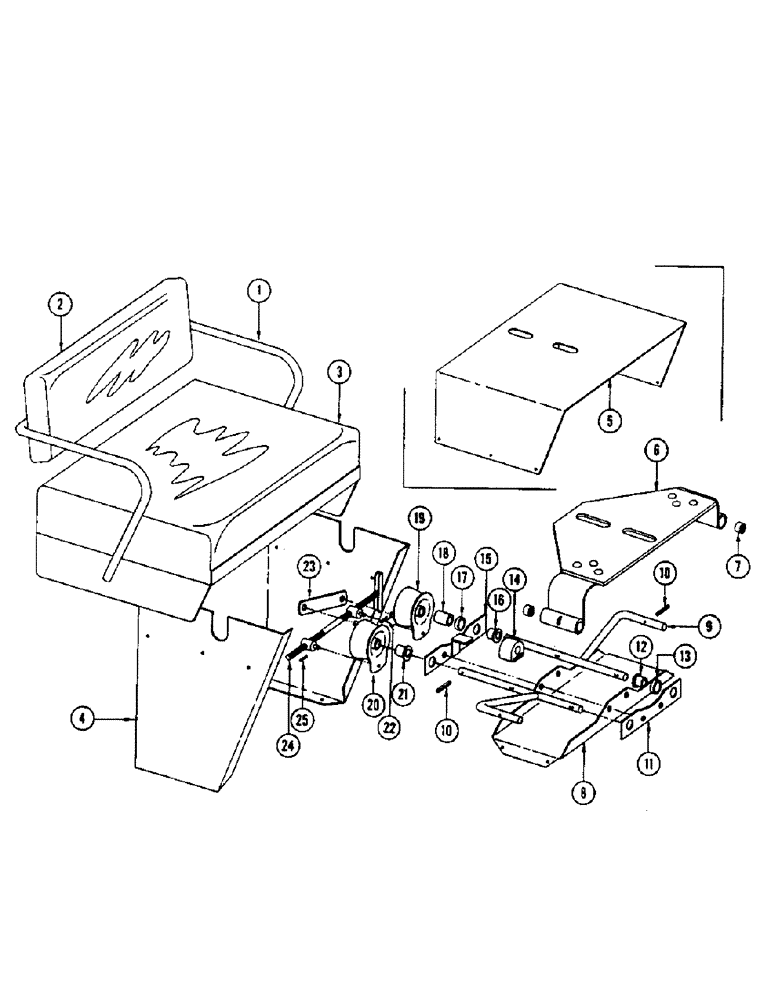

Запчасти Case IH 650 (28) - OPERATORS SEAT

1

FH268474

FRAME - seat

1шт.

2

FHO45161

CUSHION - back rest

1шт.

3

FHO45153

CUSHION - seat

1шт.

4

FH323089

MOUNTING - seat

1шт.

5

FH289736

ADAPTER - seat

1шт.

6

F94725

SUPPORT - seat suspension EASY RIDE SEAT ATTACHMENT PARTS

1шт.

7

E3330S

BUSHING EASY RIDE SEAT ATTACHMENT PARTS

4шт.

8

FH268573

ADAPTER - seat EASY RIDE SEAT ATTACHMENT PARTS

1шт.

9

F94728

SHAFT - spring - R.H. & L.H. EASY RIDE SEAT ATTACHMENT PARTS

2шт.

10

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Easy ride seat attachment parts 1/4" x 1 1/4", Slotted

4шт.

11

F94727

TIE BAR - front EASY RIDE SEAT ATTACHMENT PARTS

1шт.

12

G46002

FLANGED BEARING

BEARING - flanged EASY RIDE SEAT ATTACHMENT PARTS

2шт.

13

A26462

WASHER

- front, spring shaft EASY RIDE SEAT ATTACHMENT PARTS

4шт.

14

A30644

BUMPER

- rubber, rear tie bar EASY RIDE SEAT ATTACHMENT PARTS

1шт.

15

F94726

TIE BAR - rear EASY RIDE SEAT ATTACHMENT PARTS

1шт.

16

G46002

FLANGED BEARING

BEARING - flanged EASY RIDE SEAT ATTACHMENT PARTS

2шт.

17

195-41

WASHER,5/8"

Rear, spring shaft EASY RIDE SEAT ATTACHMENT PARTS 5/8"

4шт.

18

10953K

SPACER - spring shaft EASY RIDE SEAT ATTACHMENT PARTS

2шт.

19

G45003

SPRING SEAT

SPRING - rubber, L.H. EASY RIDE SEAT ATTACHMENT PARTS

1шт.

20

G45002

SPRING SEAT

SPRING - rubber, R.H. EASY RIDE SEAT ATTACHMENT PARTS

1шт.

21

G46002

FLANGED BEARING

BEARING - flanged EASY RIDE SEAT ATTACHMENT PARTS

2шт.

22

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Easy ride seat attachment parts 1/8" x 3/4"

2шт.

23

G45005

LINK - stabilizing EASY RIDE SEAT ATTACHMENT PARTS

1шт.

24

F53363

STUD - adjusting EASY RIDE SEAT ATTACHMENT PARTS

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Easy ride seat attachment parts 1/8" x 3/4", Slotted

2шт.
