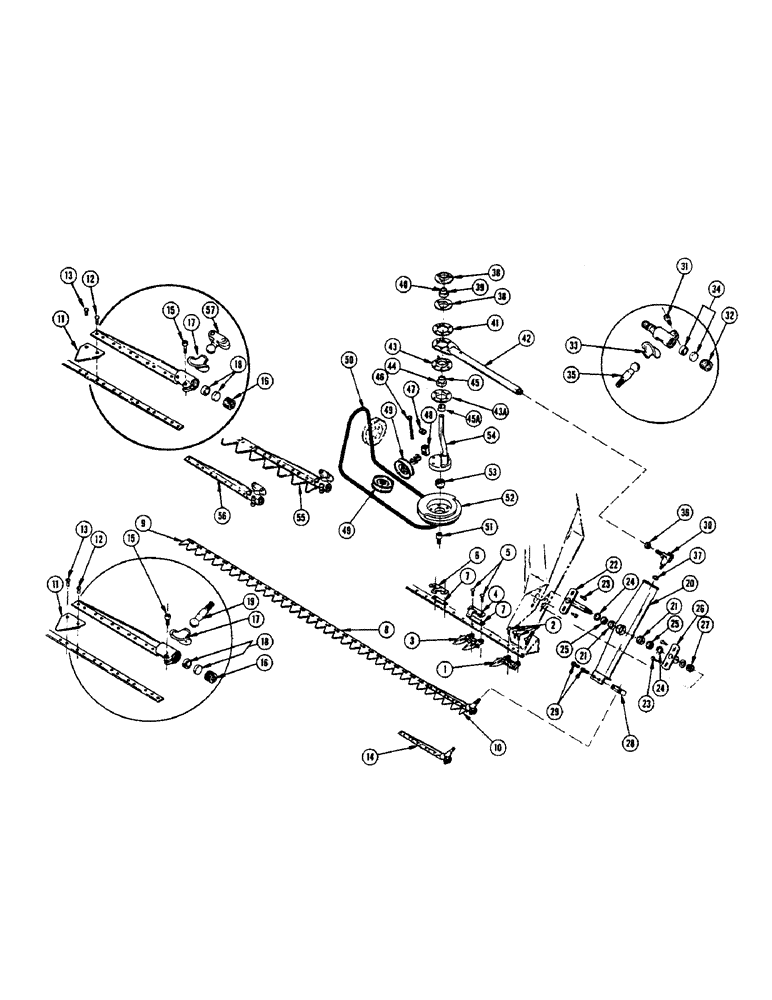

Запчасти Case IH 650 (18) - SICKLE AND SICKLE DRIVE

1

FHO49247

GUARD

- half

1шт.

2

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk.

22шт.

3

FHO49239

GUARD

- double

16шт.

4

FH142984

HOLDER

CLIP - hold down, hi clearance

1шт.

5

111-402

CARRIAGE BOLT

BOLT - 7/16" x 1-1/2" rhd. sq. nk.

16шт.

6

FH380592

CLIP - hold down

7шт.

7

FH320465

SHIM - hold down

8шт.

8

F94833

X

SICKLE - overserrated sections (Replaced by F94923 when exhausted)

1шт.

9

TF59129

CATALOG

SECTION - half, outer end, smooth

1шт.

10

F53353

KNIFE SECTION

SECTION - half, head end, smooth

1шт.

11

F59106

KNIFE SECTION

SECTION - sickle, top serrated, chrome (25 per box)

32шт.

12

Z1691

RIVET

- #5-1/2 x 14/16" oval head (1 lb. pkg.)

11шт.

13

Z1690

RIVET

- #5-1/2 x 9/16" oval head (1 lb. pkg.)

57шт.

14

F94834

HEAD - sickle

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" str.

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4"-90 degrees

1шт.

15

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - cap 3/8" x 1" N.C. hex. socket hd.

1шт.

16

FH264143

PLUG

1шт.

17

A31186

BOOT

COVER - dust

1шт.

18

FH720458

BEARING

2шт.

19

FH720441

STUD

1шт.

F94835

SICKLE - smooth sections (Replaced by F94922 when exhausted)

1шт.

T13009

KNIFE SECTION

SECTION - sickle, smooth. Also includes ref. 9, 10, 12, 13 and 14

32шт.

20

FH327353

SWAYBAR

2шт.

21

FHO50104

CUP

2шт.

22

FH123216

PIN

- swaybar

1шт.

23

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

4шт.

24

FH263764

WASHER

2шт.

25

FHO50112

BEARING

CONE

2шт.

26

FH123224

PLATE - reinforcement

1шт.

27

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. slotted hex.

1шт.

28

FH129213

BLOCK - sickle end, swaybar

1шт.

29

FHO26138

BOLT

BOLT - block mounting

2шт.

30

FH263665

HEAD - pitman

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" str.

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4"-90 degrees

1шт.

31

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - cap 3/8" x 1" N.C. hex. socket hd.

1шт.

32

FH264143

PLUG

1шт.

33

A31186

BOOT

COVER - dust

1шт.

34

FH720458

BEARING

2шт.

35

FH720441

STUD

1шт.

36

25-1514

JAM NUT,Jam, 7/8"-14, G5

- 7/8"-18 jam

1шт.

37

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. slotted hex.

1шт.

38

O650CB

X

FLANGE - bearing

2шт.

39

F51085

BEARING

1шт.

40

O697CB

X

COLLAR

1шт.

41

FH383349

STABILIZER - pitman

1шт.

42

FH383331

PITMAN

1шт.

43

FH383315

FLANGE

1шт.

43a

FH383307

FLANGE

1шт.

44

FH711630

BEARING

1шт.

45

TD4510

COLLAR

1шт.

45a

FH395871

SPACER

1шт.

46

115-210

BOLT - 3/8" x 6" full thread

1шт.

47

FH320564

NUT

1шт.

48

FH320598

BLOCK

1шт.

49

FHO54833

FRONT IDLER

"V" IDLER

2шт.

50

FHO57539

BELT

Round Section

1шт.

51

FH320002

STUD

1шт.

52

FH320499

SHEAVE - pitman drive

1шт.

53

FH710574

BEARING

1шт.

54

FH298034

CRANK - pitman

1шт.

55

F94923

KNIFE ASSY

SICKLE - overserrated sections (Replaces F94833 when exhausted)

1шт.

56

F94924

HEAD - sickle

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4"-28

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4-28 x 90 degrees

1шт.

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. soc. hd. cap

1шт.

FH264143

PLUG

1шт.

A31186

BOOT

CAP - dust

1шт.

FH720458

BEARING

2шт.

57

FH338228

BALL

BLOCK - stud. Also includes ref 9, 10, 11, 12 and 13

1шт.

F94922

KNIFE ASSY

SICKLE - smooth sections (Replaces F94835 when exhausted)

1шт.

T13009

KNIFE SECTION

SECTION - sickle, smooth. Also includes ref. 9, 10, 12, 13 and 56.

32шт.
