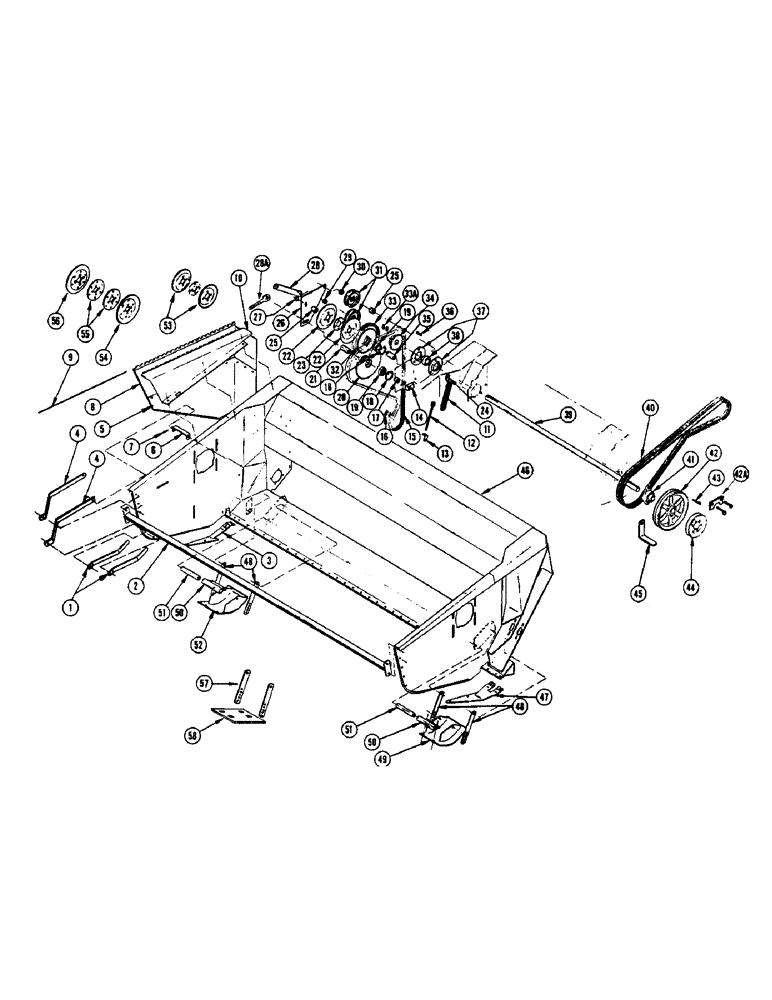

Запчасти Case IH 650 (16) - HEADER FRAME, DRIVE, AND JACKSHAFT

1

FH262626

STRAP

DEFLECTOR

2шт.

2

FH297655

BAR - lean

1шт.

3

FH288217

SHOE - divider, R.H.

1шт.

4

FH322883

DEFLECTOR

2шт.

5

FH322925

SHIELD - lower

1шт.

6

FH323014

BRACE

1шт.

7

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

COTTER - hair pin

1шт.

8

FH322917

SHIELD - side

1шт.

9

FH323006

PIN

1шт.

10

FH322958

SHIELD - top

1шт.

11

FHO58123

SPRING

1шт.

12

FH263350

DRAWBOLT

1шт.

13

FH298224

CLIP

1шт.

14

FH298323

BLOCK

1шт.

15

FHO86454

CHAIN - (Use 2-B21474 and 1-B12477 chain #50)

1шт.

16

F94699

CONNECTOR, ELEC

LINK - conn. w/"S" cotter pins #50 roller chain

1шт.

17

FH319434

SPACER

1шт.

18

A31708

SNAP RING

2шт.

19

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING

2шт.

20

FH318824

SPROCKET - double

1шт.

21

FH319574

SPACER

1шт.

22

FH318808

HALF SHEAVE - 7" dia.

2шт.

23

FH318758

SHIM

1шт.

24

FH129593

EAR

1шт.

25

FH318725

SPACER

1шт.

26

FH318683

BRACKET

1шт.

27

FH383976

BUSHING - tightener arm

1шт.

28

FH383174

ARM - reel drive tightener

1шт.

28a

FH241018

DRAW BOLT

1шт.

29

O1202TS

BUSHING

1шт.

30

FH319558

SPACER

1шт.

31

F81408

BEARING

IDLER - flat, 4-5/8" dia.

2шт.

32

FH318816

SPROCKET

1шт.

33

FHO86629

CHAIN - (Use 1-B12470 chain, 1-B12502 offset #40 chain)

1шт.

33a

B12501

LINK

- connecting #40 roller chain

1шт.

34

FHO86439

SPROCKET - 20T

1шт.

35

FH318717

SPACER

1шт.

36

FHO61424

KEY

- gib, 1/4" x 1/4" x 1-1/4"

1шт.

37

O650CB

X

FLANGE

2шт.

38

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

SPHERICAL BALL

1шт.

O697CB

X

COLLAR

1шт.

39

FH298166

JACKSHAFT - header

1шт.

40

FH297481

BELTS - clutch (Matched set of 2) (Replaced by FH384419 when exhausted)

1шт.

FH384149

SET OF 2 BELTS

BELTS - clutch (Matched set of 2) (Replaces FH297481 when exhausted)

1шт.

40

FH855205

BELT

Clutch, Power Band, Replaces FH384149 When Exhausted

1шт.

41

FH334466

BEARING

1шт.

42

FH298299

SHEAVE - double groove (Replaced by FH380980 when exhausted)

1шт.

FH380980

SHEAVE - double groove (Replaces FH298299 when exhausted)

1шт.

42a

FH382671

CLIP

1шт.

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

BOLT - 5/16" x 1-1/2" socket head

2шт.

43

FHO61978

KEY

- gib, 1/4" x 1/4" x 2-1/2"

1шт.

44

FH320507

SHEAVE - 7-3/16" dia.

1шт.

45

FH310896

GUIDE - belt

1шт.

46

FH319277

FRAME - header

1шт.

47

FH288209

SHOE - divider, L.H.

1шт.

48

FH310136

STRAP - adjustment

4шт.

49

FH320622

SHOE - skid, L.H.

1шт.

50

FH319160

PIVOT - skid shoe

2шт.

51

FH299420

SPACER

2шт.

52

FH320630

SHOE - skid, R.H.

1шт.

53

FH318766

HALF SHEAVE - 5-1/2" dia.

2шт.

54

FH318782

HALF SHEAVE - 8-1/2" dia.

1шт.

55

FH241208

SHIM

- spacer

2шт.

56

FH318774

HALF SHEAVE - 8-1/2" dia.

1шт.

57

FH384057

STRAP - skid shoe SKID SHOE EXTENSION

4шт.

58

FH389692

EXTENSION - skid shoe SKID SHOE EXTENSION

2шт.
