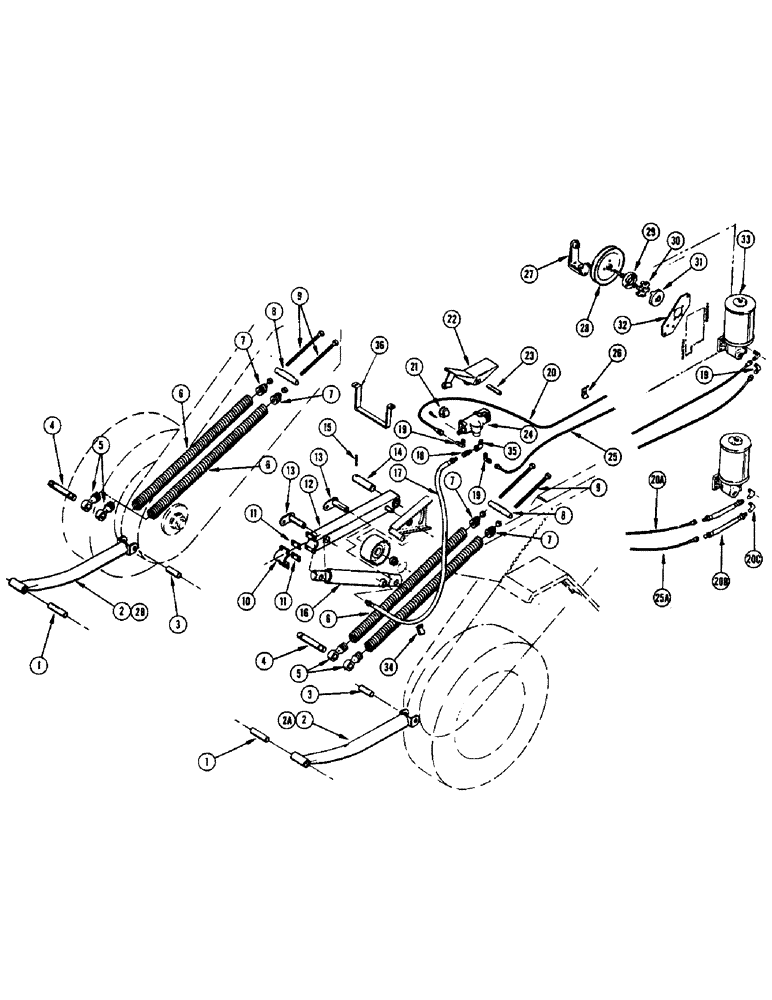

Запчасти Case IH 650 (14) - HEADER LINKAGE, HYDRAULICS AND FLOTATION

1

FH158501

BUSHING - 4-1/8" long

2шт.

2

FH318287

ARM - lower lift (Replaced by FH384651 L.H. and FH384669 R.H when exhausted)

2шт.

2a

FH384651

ARM - lower lift, L.H. (Replaces FH318287 when exhausted)

1шт.

2b

FH384669

ARM - lower lift, R.H. (Replaces FH318287 when exhausted)

1шт.

3

FH299487

BUSHING - 2-15/16" long

2шт.

4

FH320580

PIN - lower

2шт.

5

FH320515

PLUG - spring, lower

4шт.

6

FHO58933

SPRING

4шт.

7

FH264424

PLUG - spring, upper

4шт.

8

FH320572

PIN - upper

2шт.

9

FH702282

BOLT - hex., grade 5, 5/8" x 10" full threaded

4шт.

10

FH296541

FLANGE - lift

1шт.

11

FH299586

SHIM

2шт.

12

FH317479

ARM - upper lift

1шт.

13

FH295360

PIN - hydraulic cylinder

2шт.

14

FH317503

PIN - shaft

1шт.

15

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

1шт.

16

FH742114

CYLINDER - header lift

1шт.

17

FHO42754

HOSE - hydraulic (46" long)

1шт.

18

218-902

HYD CONNECTOR,3/8" NPT x 3/8" - 18 ORFS

FITTING - swivel adapter, 3/8" NPTF

1шт.

19

222-769

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 3/8" NPT

- flared, 3/8" SAE x 3/8" NPTF

4шт.

20

FH296368

LINE - hydraulic (Replaced by FH389957 and FHO42192 when exhausted)

1шт.

222-834

NUT - flared, 3/8"

2шт.

20a

FH389957

LINE - hydraulic (Replaces FH296368 when exhausted) (See ref. 20B)

1шт.

222-834

NUT - flared, 3/8"

2шт.

20b

FHO42192

HOSE - hydraulic (See ref. 20A and 25A)

2шт.

20c

221-413

ELBOW,90 Degree, 3/8"-18, NPT

FITTING - street elbow 3/8" NPTF x 90 degrees

2шт.

21

FH751438

CLIP

- handle

1шт.

22

FH296293

PEDAL - hydraulic

1шт.

23

O2054AB

BUSHING - 3-1/4" long

1шт.

24

FH742122

VALVE - hydraulic

1шт.

25

FH296343

LINE - hydraulic (Replaced by FH389965 and FHO42192 when exhausted)

1шт.

222-834

NUT - flared, 3/8"

2шт.

25a

FH389965

LINE - hydraulic (Replaces FH296343 when exhausted) (See ref. 20B)

1шт.

222-834

NUT - flared, 3/8"

2шт.

26

FH294314

CLAMP

2шт.

27

FH296137

BRACKET - idler

1шт.

28

FH296632

V-SHEAVE

1шт.

29

FH296178

COUPLING - driver

1шт.

30

FHO86397

SPIDER ASSY.

COUPLING - spider

1шт.

31

FH296160

COUPLING - driver

1шт.

32

FH296103

MOUNTING - pump

1шт.

33

FH742130

PUMP - hydraulic

1шт.

34

FH296624

CLAMP

1шт.

35

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 3/8" NPTF x 90 degrees

1шт.

36

FH323998

GUARD

1шт.
