Запчасти Case IH 6000 (9-16) - CAB (09) - CHASSIS

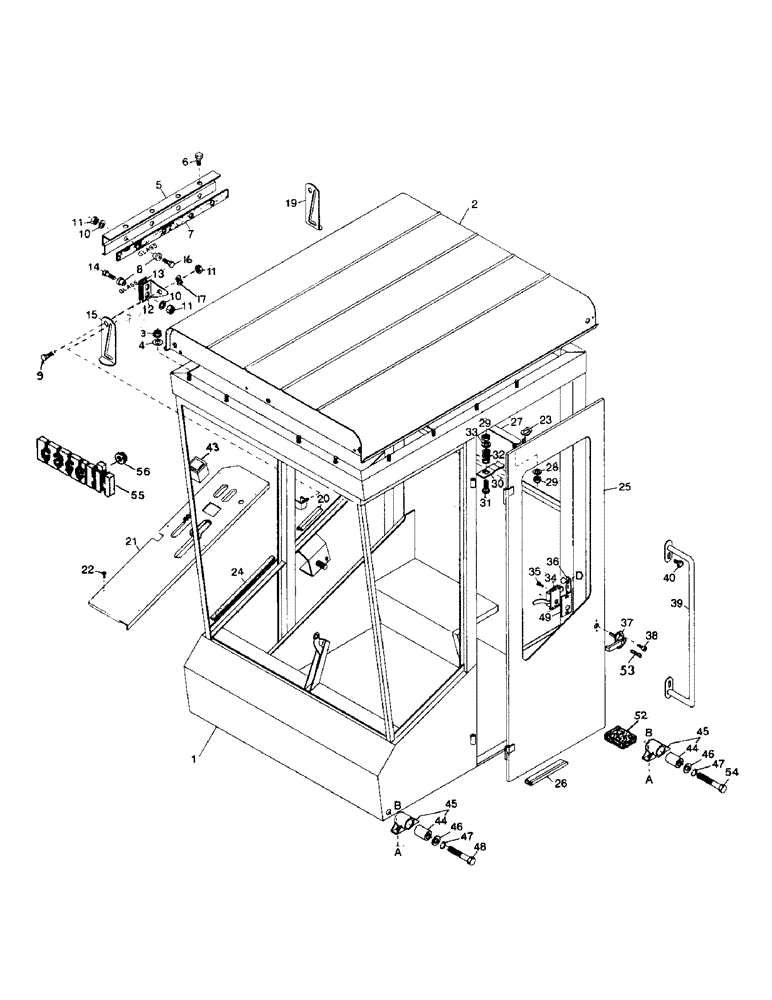

Схема запчастей Case IH 6000 - (9-16) - CAB (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

1336228C1

BODY - cab

1шт.

2

1336229C1

CAB

ROOF - cab, c/w weatherstripping

1шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

17шт.

4

20803R1

WASHER

- flat

17шт.

5

1336230C1

HINGE

- window

1шт.

6

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- flange head, 1/4 NC x 1/2 inch

4шт.

7

1336231C1

INSULATOR

ISOLATOR - hinge

1шт.

8

1336232C1

INSULATOR

- nylon machine screw

8шт.

9

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

CAPSCREW - hex head, 1/4 NC x 5/8 inch

2шт.

10

120392

WASHER,1/4", SAE

- flat, 9/32 inch I.D.

8шт.

11

9413950

LOCK NUT,1/4"-20, GB

NUT - lock, 1/4 inch NC distorted thread

10шт.

12

1336233C1

LUG

- window

2шт.

13

1336234C1

INSULATOR

ISOLATOR - window lug

2шт.

14

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

15

1336236C1

LATCH

- window, front

1шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

17

1336235C1

WASHER

- tension, wave spring, 1/4 inch I.D.

2шт.

19

1336237C1

LATCH

- window, rear

1шт.

20

1336238C1

SEAL

- R/H window

1шт.

21

1336239C1

PANEL

- control, top

1шт.

22

27667R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - sheet metal, #10 NC x 5/8 inch

6шт.

23

1336307C1

WASHER

- tension , wave spring, 3/8 inch I.D.

1шт.

24

1336302C1

SEAL

- dash top

1шт.

25

1336301C1

DOOR

- cab

1шт.

26

1336303C1

SEAL

- door

1шт.

27

1336304C1

ARM

- door

1шт.

28

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

1шт.

29

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

30

1336306C1

CLIP

- door latch

1шт.

31

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT - round head square neck, 3/8 NC x 2 inch

1шт.

32

1336305C1

SPRING

- compression

1шт.

33

120396

WASHER

- flat, 17/32 inch I.D.

1шт.

34

1336308C1

LOCK

- cab door, L/H type

1шт.

35

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- flange head, 1/4 NC x 3/4 inch

2шт.

36

1336309C1

PLATE

STRIKER - door latch

1шт.

c

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

2шт.

d

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- serrated flange lock, 1/4 inch NC

2шт.

37

1336311C1

HANDLE

- cab door

1шт.

38

28411R1

HEX SOC SCREW,#10 - 24 x 3/4"

CAPSCREW - flat socket head, #10 NC x 3/4 inch

2шт.

39

1336316C1

RAIL

- hand

1шт.

40

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

2шт.

43

1336300C1

TRAY

ASHTRAY - cigarette

1шт.

44

1336314C1

BUSHING

- rubber

4шт.

45

1336313C1

BRACKET

MOUNT - cab, c/w rubber bushing

4шт.

a

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 NC prevailing torque

8шт.

b

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

8шт.

46

131016

WASHER

- flat, 21/32 inch I.D.

4шт.

47

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

48

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

CAPSCREW - hex head, 5/8 NC x 4-1/2 inch (Continued from page 9-16)

2шт.

49

1336310C1

PLATE

- back-up, lock

1шт.

52

1336315C1

PAD

- rubber

2шт.

53

1336312C1

KEY

- cab door lock

1шт.

54

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

CAPSCREW - hex head, 5/8 NC x 5 inch

2шт.

55

A181437

EMBLEM CASE/IH

MEDALLION - Case I.H.

1шт.

56

1324788C1

NUT

- self threading, for 1/4 inch stud

2шт.

Выбрано товаров: 55
