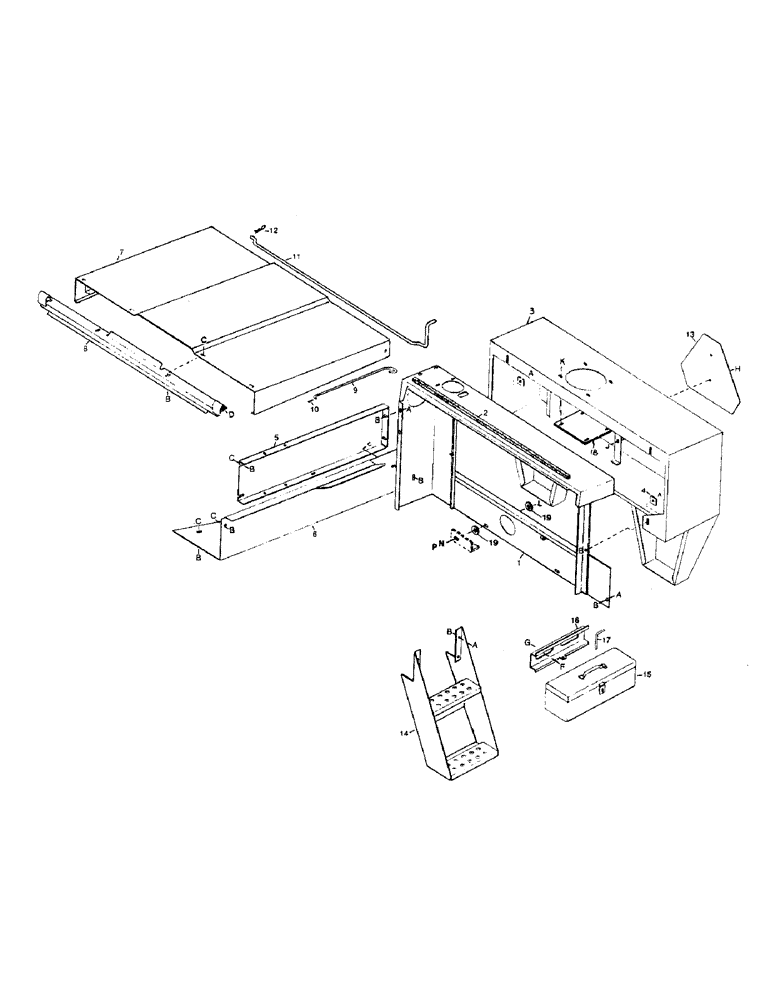

Запчасти Case IH 6000 (9-14) - SHEET METAL, LADDER AND TOOL BOX (09) - CHASSIS

1

1336206C1

PANEL

- rear, gasoline engine

1шт.

1334106C1

PANEL

- rear, diesel engine

1шт.

a

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

2шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

l

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

n

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

2шт.

p

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

2

1336207C1

STRIP

SPONGE - stripping

1шт.

3

1336208C1

PANEL

SHEET METAL - rear (For diesel-powered units, also order item #18)

1шт.

4

1336209C1

WASHER

- square

4шт.

a

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

5

1336211C1

PANEL

- R/H side

1шт.

a

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

2шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

c

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

6

1336212C1

SHIELD

- drives, c/w decal

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

c

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

7

1336213C1

HOOD

COVER - engine

1шт.

8

1336214C1

SUPPORT

STIFFENER - front, engine cover

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

c

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

d

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

9

1336215C1

SHAFT

PROP - engine cover

1шт.

10

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

11

1336216C1

LATCH

- engine cover

1шт.

12

591107R1

COTTER PIN

- hair

1шт.

13

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

SIGN - slow moving vehicle

1шт.

h

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

j

174097C1

FLANGE NUT,Flg, USR, #10-24

- serrated flange lock, #10 NC

2шт.

14

1336217C1

LADDER

- mounting

1шт.

a

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

15

1336218C1

BOX

- tool

1шт.

16

1336219C1

BRACKET

- mounting, tool box

1шт.

f

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

g

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

2шт.

17

1336220C1

PIN

- "L"

1шт.

18

1336210C1

COVER

- rear sheet metal, diesel engine

1шт.

k

27667R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, #10 NC x 5/8 inch

4шт.

19

1337159C1

RUBBER WASHER

- rubber

4шт.
