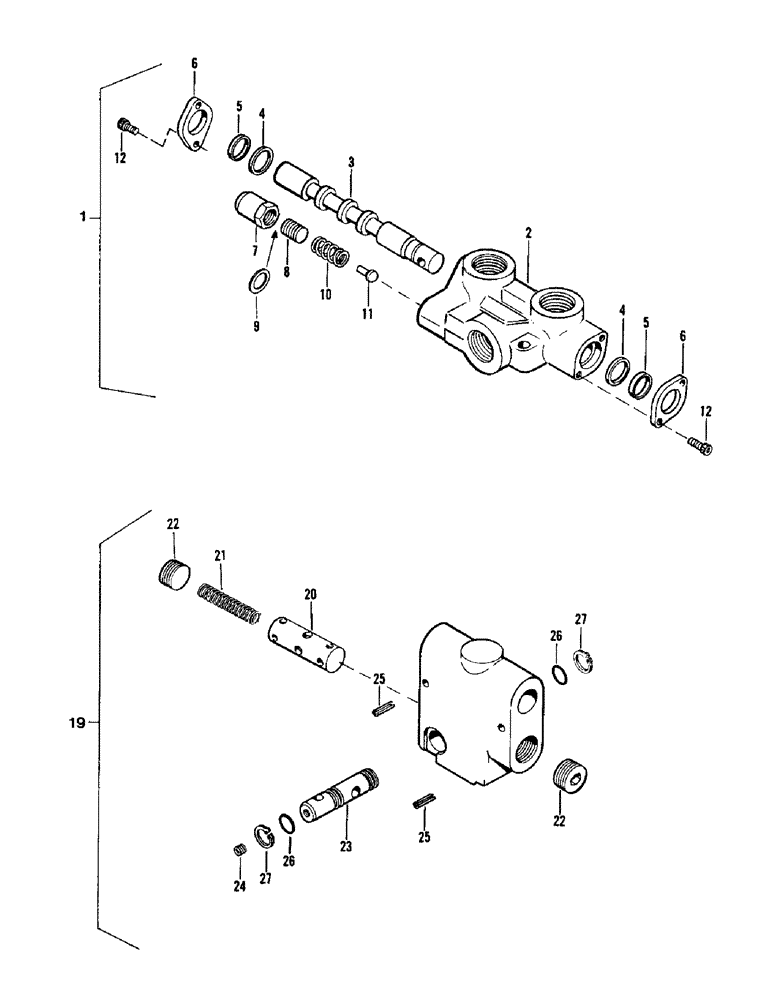

Запчасти Case IH 6000 (8-16) - FOUR WAY VALVE ASSEMBLY AND FLOW CONTROL ASSEMBLY (08) - HYDRAULICS

1

1336532C1

VALVE

ASSEMBLY - 4-way

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - spool

2шт.

Part of Repair Seal Kit, P/N 1336567C1

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - spool

2шт.

Part of Repair Seal Kit, P/N 1336567C1

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - seal

2шт.

7

NSS

NOT SOLD SEPARAT

CAP - relief

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - adjusting, relief

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - relief, aluminum

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET - relief

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - hex socket head, 1/4 NC x 1/2 inch

4шт.

1336567C1

KIT

SEAL KIT - repair, Includes: ref. nos. 4 and 5

1шт.

19

1336533C1

VALVE

FLOW CONTROL ASSEMBLY

2шт.

20

NSS

NOT SOLD SEPARAT

SPOOL - metering

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - metering

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - pipe, 3/4 NPT

2шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - side lever

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - set, hex socket head, 1/4 NC x 1/4 inch

1шт.

25

NSS

NOT SOLD SEPARAT

PIN - spring, 3/16 x 7/8 inch

2шт.

26

NSS

NOT SOLD SEPARAT

O-RING - 3/4 I.D. x 3/32 inch

2шт.

Part of Repair Seal Kit, P/N 1336568C1

1шт.

27

NSS

NOT SOLD SEPARAT

RING - external retaining, .042 inch thick

2шт.

1336568C1

KIT

SEAL KIT - repair, Includes: ref. no. 26

1шт.
