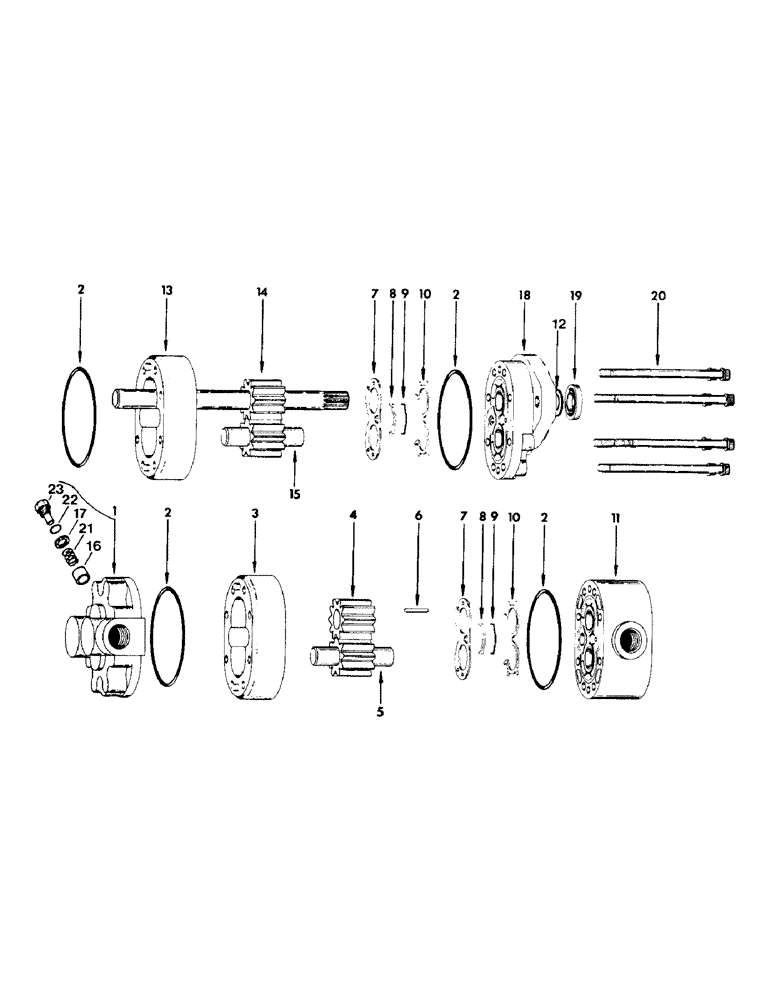

Запчасти Case IH 6000 (6-08) - DOUBLE GEAR PUMP (06) - POWER TRAIN

1960547C1

PUMP

DOUBLE GEAR PUMP ASSEMBLY - complete

1шт.

1

1960562C1

KIT

- repair, back plate

1шт.

2

26225R1

O-RING,-041, 90 Duro, 2.989" ID x .070" Thk

4шт.

3

NSS

NOT SOLD SEPARAT

BODY - rear

1шт.

4

1960556C1

GEAR

1шт.

5

1960550C1

GEAR-SET

GEAR ASSEMBLY - idler, rear

1шт.

6

1960555C1

KEY

- round

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - bearing

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - molded

2шт.

10

NSS

NOT SOLD SEPARAT

GASKET - back-up

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - adapter

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - front

1шт.

14

1960557C1

GEAR-SET

GEAR ASSEMBLY - drive, splined

1шт.

15

1960549C1

GEAR

ASSEMBLY - idler, front

1шт.

16

1336508C1

SUPPORT

POPPET

1шт.

17

1960558C1

WASHER

- flat, .048 inch thick

1шт.

17

1960559C1

WASHER

- flat, .015 inch thick

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - front

1шт.

19

1960551C1

SEAL

- shaft

1шт.

20

1960571C1

BOLT,12 Pt, 5/16" x 4 3/4"

CAPSCREW - flanged 12 pt. head, 5/16 NC x 4-3/4 inch

8шт.

21

1960560C1

SPRING

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING

1шт.

23

9410359

PLUG

1шт.

1960546C1

KIT

SEAL KIT - repair, Includes: Ref. 2, 7, 8, 9, 10, 12, 19 & 22

1шт.

Included in Kit 1960565C1

1шт.
