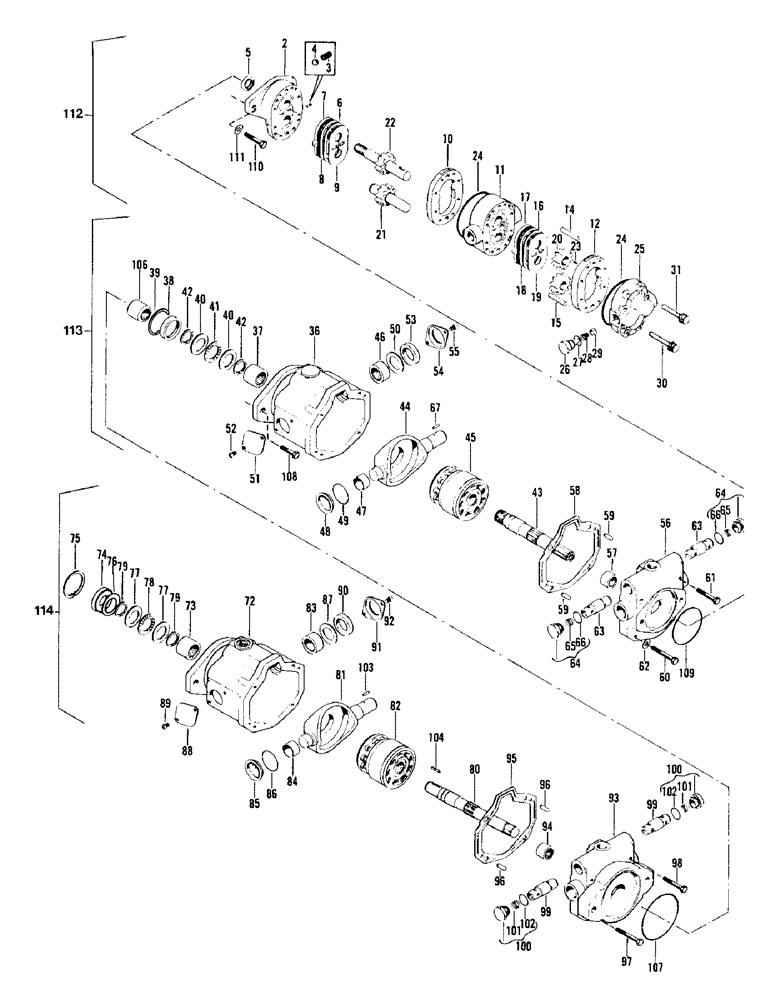

Запчасти Case IH 6000 (6-02) - TRIPLE PUMP ASSEMBLY (06) - POWER TRAIN

1

1960567C1

PUMP

ASSEMBLY - triple, complete

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - front pump

1шт.

3

F9883

SPRING

- plate

2шт.

Included in Kit 1336509C1

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - 7/32 inch diameter

2шт.

Included in Kit 1336509C1

1шт.

5

632855R91

SEAL

- oil

1шт.

Included in Kit 1336509C1

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - seal

1шт.

Included in Kit 1336509C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - diaphragm

1шт.

Included in Kit 1336509C1

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - connector

1шт.

Included in Kit 1336509C1

1шт.

9

NSS

NOT SOLD SEPARAT

DIAPHRAGM - pump

1шт.

Included in Kit 1336509C1

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - front pump

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - front pump

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - dowel, 5/16 x 1-1/4 inch

2шт.

15

NSS

NOT SOLD SEPARAT

PIN - dowel

2шт.

16

NSS

NOT SOLD SEPARAT

GASKET - seal

1шт.

Included in Kit 1336509C1

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - diaphragm

1шт.

Included in Kit 1336509C1

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET - connector

1шт.

Included in Kit 1336509C1

1шт.

19

NSS

NOT SOLD SEPARAT

DIAPHRAGM - pump

1шт.

Included in Kit 1336509C1

1шт.

20

1336502C1

GEAR

- front pump

2шт.

21

1336503C1

GEAR

ASSEMBLY - idler

1шт.

22

1336504C1

GEAR

ASSEMBLY - drive

1шт.

23

NSS

NOT SOLD SEPARAT

KEY - rectangular, 1/8 x 3/16 x 35/64 inch

1шт.

24

26225R1

O-RING,-041, 90 Duro, 2.989" ID x .070" Thk

- 3 x 3-1/8 x 1/16 inch

2шт.

Included in Kit 1336509C1

1шт.

25

NSS

NOT SOLD SEPARAT

BACKPLATE ASSEMBLY - front pump

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - 3/4 inch NF

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - 5/8 I.D. x 3/32 inch

1шт.

Included in Kit 1336509C1

1шт.

28

1336507C1

SPRING

- plug

1шт.

29

1336508C1

SUPPORT

POPPET - front pump release

1шт.

30

NSS

NOT SOLD SEPARAT

CAPSCREW - 12 pt., 5/16 NC x 4 inch

4шт.

31

NSS

NOT SOLD SEPARAT

CAPSCREW - 12 pt., 5/16 NC x 4-1/4 inch

4шт.

1336509C1

KIT

SEAL KIT - repair, Includes: Ref. 3, 4, 5, 6, 7, 8, 9, 16, 17, 18, 19, 24 & 27

1шт.

Included in Kit 1336525C1

1шт.

36

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY

1шт.

37

143996H1

NEEDLE BEARING

BEARING - needle

1шт.

38

1336510C1

SPACER

- ring

1шт.

39

NSS

NOT SOLD SEPARAT

RING - snap, internal, 2 inch

1шт.

Included in Kit 1336519C1

1шт.

40

NSS

NOT SOLD SEPARAT

RACE - thrust, 1-1/8 x 1-3/4 x 3/32 inch

2шт.

41

619150C91

BEARING

- thrust

1шт.

42

NSS

NOT SOLD SEPARAT

RING - snap, external 1-3/64 I.D. x 3/64 inch thick

2шт.

Included in Kit 1336519C1

1шт.

43

1336511C1

SHAFT

- pump drive

1шт.

44

NSS

NOT SOLD SEPARAT

CAMPLATE - piston

1шт.

45

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - pump

1шт.

46

363244R91

NEEDLE BEARING

- needle

2шт.

47

NSS

NOT SOLD SEPARAT

RACE - trunnion bearing

1шт.

48

NSS

NOT SOLD SEPARAT

RETAINER - race

1шт.

49

343907R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

- 1-3/8 I.D. x 1/8 inch

1шт.

Included in Kit 1336519C1

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - flat, 1 x 1-39/64 x 3/64 inch

2шт.

51

NSS

NOT SOLD SEPARAT

COVER PLATE

1шт.

52

NSS

NOT SOLD SEPARAT

SCREW - terminal, #10 NF x 3/8 inch, special

2шт.

53

D73666

SEAL

- oil trunnion

1шт.

Included in Kit 1336519C1

1шт.

54

NSS

NOT SOLD SEPARAT

COVER PLATE

1шт.

55

NSS

NOT SOLD SEPARAT

SCREW - terminal, #10 NF x 3/8 inch, special

2шт.

56

NSS

NOT SOLD SEPARAT

BACKPLATE ASSEMBLY - middle pump

1шт.

57

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

58

1336516C1

GASKET

-, Serial Range: backplate-housing

1шт.

Included in Kit 1336519C1

1шт.

59

NSS

NOT SOLD SEPARAT

PIN - front, Serial Range: plate-housing

2шт.

60

NSS

NOT SOLD SEPARAT

CAPSCREW - hex head, 3/8 NC x 2 inch

2шт.

61

NSS

NOT SOLD SEPARAT

CAPSCREW - hex head, 3/8 NC x 2-1/2 inch

2шт.

62

NSS

NOT SOLD SEPARAT

WASHER - flat, 13/32 x 13/16 x 1/16 inch

6шт.

63

D66351

VALVE

ASSEMBLY - relief (5025 PSI)

2шт.

64

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY

2шт.

65

NSS

NOT SOLD SEPARAT

SPRING - valve

2шт.

66

NSS

NOT SOLD SEPARAT

O-RING - 7/8 I.D. x 3/32 inch

2шт.

Included in Kit 1336519C1

1шт.

67

NSS

NOT SOLD SEPARAT

KEY - 1/4 square x 3/4 inch

1шт.

1336519C1

KIT

SEAL KIT - repair, Includes: Ref. 39, 42, 49, 53, 58 & 66

1шт.

Included in Kit 1336525C1

1шт.

Included in Kit 1960565C1

1шт.

72

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - end pump

1шт.

73

143996H1

NEEDLE BEARING

BEARING - needle

1шт.

74

631883C1

SEAL

- oil

1шт.

Included in Kit 1336523C1

1шт.

75

NSS

NOT SOLD SEPARAT

RING - snap, internal, 2 inch

1шт.

Included in Kit 1336523C1

1шт.

76

NSS

NOT SOLD SEPARAT

WASHER - flat, 1-19/32 x 2 x 5/64 inch

1шт.

77

NSS

NOT SOLD SEPARAT

RACE - thrust, 1-1/8 x 1-3/4 x 3/32 inch

2шт.

78

619150C91

BEARING

- thrust

1шт.

79

NSS

NOT SOLD SEPARAT

RING - snap, external, 1-3/64 I.D. x 3/64 inch thick

2шт.

Included in Kit 1336523C1

1шт.

80

1336520C1

SHAFT

- end pump

1шт.

81

NSS

NOT SOLD SEPARAT

CAMPLATE - piston

1шт.

82

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - pump

1шт.

83

363244R91

NEEDLE BEARING

- needle

2шт.

84

NSS

NOT SOLD SEPARAT

RACE - trunnion bearing

1шт.

85

NSS

NOT SOLD SEPARAT

RETAINER - race

1шт.

86

343907R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

- 1-3/8 I.D. x 1/8 inch

1шт.

Included in Kit 1336523C1

1шт.

87

NSS

NOT SOLD SEPARAT

WASHER - flat, 1 x 1-39/64 x 3/64 inch

2шт.

88

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

89

NSS

NOT SOLD SEPARAT

SCREW - terminal #10 NF x 3/8 inch, special

2шт.

90

D73666

SEAL

- oil trunnion

1шт.

Included in Kit 1336523C1

1шт.

91

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

92

NSS

NOT SOLD SEPARAT

SCREW - terminal #10 NF x 3/8 inch, special

2шт.

93

NSS

NOT SOLD SEPARAT

BACKPLATE ASSEMBLY - end pump

1шт.

94

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

95

1336516C1

GASKET

-, Serial Range: backplate-housing

1шт.

Included in Kit 1336523C1

1шт.

96

NSS

NOT SOLD SEPARAT

PIN - front, Serial Range: plate-housing

2шт.

97

NSS

NOT SOLD SEPARAT

CAPSCREW - hex head, 3/8 NC x 2 inch

2шт.

98

NSS

NOT SOLD SEPARAT

CAPSCREW - hex head, 3/8 NC x 2-1/2 inch

2шт.

99

D66351

VALVE

ASSEMBLY - relief (5025 PSI)

2шт.

100

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY - valve

2шт.

101

NSS

NOT SOLD SEPARAT

SPRING - valve

2шт.

102

NSS

NOT SOLD SEPARAT

O-RING - 7/8 I.D. x 3/32 inch

2шт.

Included in Kit 1336523C1

1шт.

103

NSS

NOT SOLD SEPARAT

KEY - 1/4 square x 3/4 inch

1шт.

104

Q67

KEY,1/4" Sq x 1 1/8", Par

- 1/4 square x 1-1/8 inch

1шт.

1336523C1

KIT

SEAL KIT - repair, Includes: Ref. 74, 75, 79, 86, 90, 95 & 102

1шт.

Included in Kit 1336525C1

1шт.

Included in Kit 1960565C1

1шт.

106

1336524C1

COUPLING

- shaft

1шт.

107

28063R1

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

- 4 I.D. x 1/16 inch

1шт.

Included in Kit 1336525C1

1шт.

Included in Kit 1960565C1

1шт.

108

NSS

NOT SOLD SEPARAT

CAPSCREW - hex head 1/2 NC x 1-1/4 inch

2шт.

109

26970R1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

- 3-1/4 I.D. x 1/16 inch

1шт.

Included in Kit 1336525C1

1шт.

Included in Kit 1960565C1

1шт.

110

NSS

NOT SOLD SEPARAT

CAPSCREW - hex head, 3/8 NC x 1-1/4 inch

2шт.

111

NSS

NOT SOLD SEPARAT

WASHER - flat, 39 x 68 x 6 MM

2шт.

112

1960547C1

PUMP

ASSEMBLY - double gear (NOTE: If replacing pump stamped 24381-LAB, also order filter support 1960566C1)

1шт.

113

1337807C1

PUMP

ASSEMBLY - rear piston

1шт.

114

1337808C1

PUMP

ASSEMBLY - front piston (To pulley)

1шт.

1336525C1

KIT

SEAL KIT - repair, Includes: Kits 1336509C1, 1336519C1, 1336523C1, plus items 107 and 109

1шт.

1960565C1

SEAL KIT

SEAL KIT - repair, Includes: Kits 1336519C1, 1336523C1, 1960546C1, plus items 107 and 109

1шт.
