Запчасти Case IH 6000 (4-02) - ELECTRICAL GROUP, GAS AND DIESEL (04) - ELECTRICAL SYSTEMS

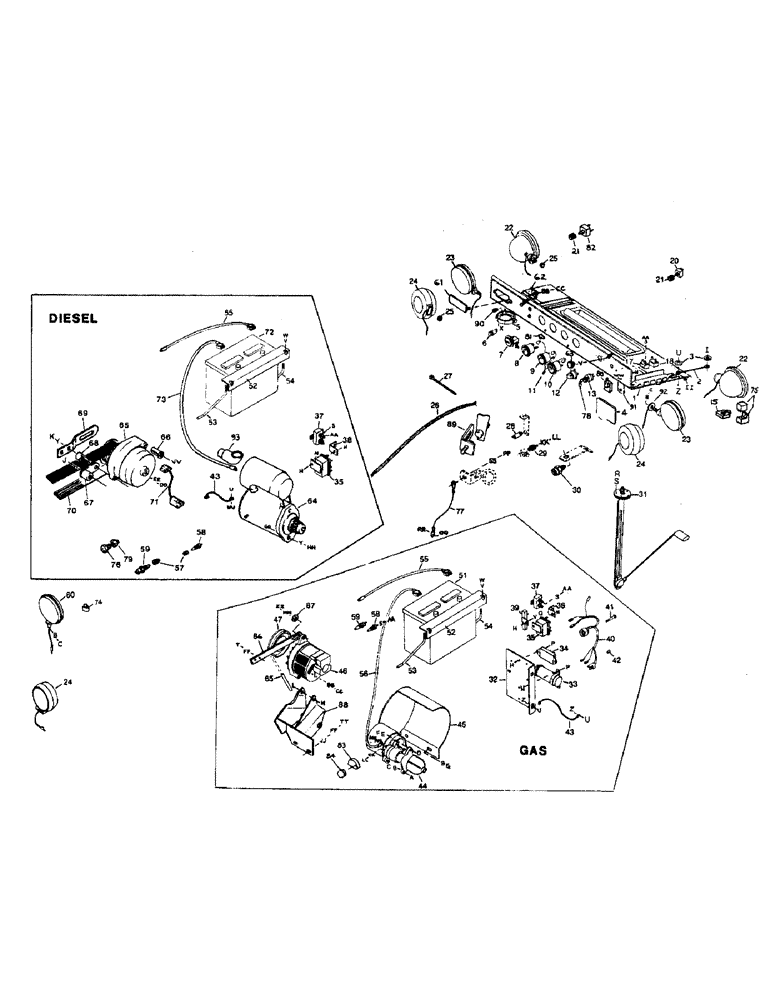

Схема запчастей Case IH 6000 - (4-02) - ELECTRICAL GROUP, GAS AND DIESEL (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

1336111C1

PANEL

PANEL - instrument

1шт.

2

1336112C1

CABLE

SPARE PART CABLE - instrument panel

2шт.

3

20803R1

WASHER

WASHER - flat

4шт.

i

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

BOLT - flange head, 3/8 NC x 3/4 inch

2шт.

u

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT - serrated flange lock, 3/8 inch NC

2шт.

ii

NLS

NO LONGER SERVICED

- flat, 17/32 inch I.D.

2шт.

z

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT- round head, square neck, 3/8 NC x 3/4 inch

2шт.

4

1336114C1

MIRROR

SPARE PART MIRROR - round

1шт.

4

1960323C1

MIRROR

MIRROR - rectangular

1шт.

5

1336080C1

LIGHT

LIGHT - dome

1шт.

x

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - round slotted head, thread-cutting type D #10 NCX x 3/4 inch

3шт.

6

1276734C1

LIGHT

LIGHT - indicator

3шт.

7

1336117C1

METER

SPARE PART HOUR METER - c/w mounting hardware

1шт.

8

1336118C1

METER

SPARE PART VOLT METER - c/w mounting hardware

1шт.

9

1336119C1

GAUGE

GAUGE - temperature, c/w mounting hardware

1шт.

10

1336120C1

GAUGE

GAUGE - fuel, c/w mounting hardware

1шт.

11

1336081C1

LIGHT

SPARE PART LIGHT ASSEMBLY - instrument

1шт.

131282

BULB,C2V, #53, 14.4V

BULB - 12 V, auto #53

3шт.

12

1336084C1

SWITCH ASSY

SWITCH - light, c/w knob & mounting hardware

1шт.

13

1336085C1

SWITCH

SWITCH - ignition, c/w keys & mounting hardware

1шт.

15

1336086C1

BUZZER

BUZZER - warning

4шт.

17

1336087C1

BREAKER

SPARE PART BREAKER - circuit, 25 amp

2шт.

18

1336089C1

BREAKER

SPARE PART BREAKER - circuit, 6 amp

2шт.

s

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

aa

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

20

1336090C1

SWITCH

SWITCH - blower

1шт.

21

1336091C1

KNOB

SPARE PART KNOB - switch

2шт.

22

1336078C1

LIGHT

HEADLIGHT - c/w mounting hardware (Halogen sealed beam #H-7610)

2шт.

23

1960435C1

LIGHT

LIGHT - double faced amber

2шт.

b

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

c

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

2шт.

24

1336079C1

LIGHT

LIGHT - work c/w mounting hardware (Halogen sealed beam #H-7606)

3шт.

25

1336065C1

GROMMET

SPARE PART GROMMET - mounting

6шт.

26

1336062C1

HARNESS

HARNESS - wiring

1шт.

27

1336064C1

CABLE TIE

CABLE STRAP TIE - cable, 7-1/2 inch

1шт.

470492C1

STRAP

TIE - cable, 5-1/2 inch

1шт.

28

1336092C1

SWITCH

SWITCH - brake

1шт.

29

1336093C1

SWITCH

SWITCH - hydraulic oil pressure

1шт.

kk

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

ll

120622

NUT,#8-32

NUT, #8-32

1шт.

30

1336755C1

SWITCH

SWITCH - header drive clutch

1шт.

31

1336094C1

GAUGE

SENDER - fuel gauge

1шт.

r

86511922

SCREW,Pan, #10 - 24 x 3/4"

- machine, Phillips pan head, #10 NC x 3/4 inch

5шт.

s

120217

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

32

1336100C1

PLATE

SPARE PART PLATE - mounting, electronic ignition

1шт.

u

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT - serrated flange lock, 3/8 inch NC

2шт.

z

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT- round head, square neck, 3/8 NC x 3/4 inch

2шт.

33

1336097C1

COIL

SPARE PART COIL - c/w bracket

1шт.

h

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - serrated flange lock, 1/4 inch NC

2шт.

p

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

BOLT - flange head, 1/4 NC x 1/2 inch

2шт.

34

1336096C1

CONTROL

CONTROL UNIT - electronic ignition (Continued from page 4-2)

1шт.

h

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - serrated flange lock, 1/4 inch NC

2шт.

p

161108R1

BOLT - flange head, 1/4 NC x 1/2 inch

2шт.

35

1336095C1

RELAY

RELAY - electrical

1шт.

n

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

BOLT - flange head, 1/4 NC x 3/4 inch (Diesel)

1шт.

h

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - serrated flange lock, 1/4 inch NC

1шт.

37

1336088C1

BREAKER

BREAKER - circuit, 50 amp manual re-set

1шт.

s

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

aa

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

38

1336098C1

SUPPORT

SPARE PART MOUNT - breaker

1шт.

h

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - serrated flange lock, 1/4 inch NC

1шт.

39

1336099C1

RESISTOR

SPARE PART RESISTOR - ballast

1шт.

h

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - serrated flange lock, 1/4 inch NC

1шт.

q

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/2", G5

1шт.

v

120392

WASHER,1/4", SAE

WASHER - flat, 9/32 inch I.D.

1шт.

40

1336061C1

HARNESS

SPARE PART HARNESS - wiring, electronic ignition

1шт.

41

1336101C1

SCREW,Spcl

SPARE PART SCREW - special

1шт.

42

1336102C1

CAP

SPARE PART CAP - rubber

1шт.

43

1336063C1

STRAP

SPARE PART STRAP - ground

1шт.

u

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT - serrated flange lock, 3/8 inch NC

1шт.

z

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

uu

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

44

1336069C1

STARTING MOTOR

STARTER - gas engine

1шт.

a

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

CAPSCREW - hex head, 7/16 NC x 1-3/4 inch

1шт.

b

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

c

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

1шт.

d

113-516

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

CAPSCREW - hex head, 9/16 NC x 1-3/4 inch

1шт.

e

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

f

124583

BRAKE SHOE

NUT - hex, 9/16 inch NC

1шт.

45

1336070C1

SHIELD

SPARE PART SHIELD - starter

1шт.

b

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , NC 7/16"

2шт.

g

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

CAPSCREW - hex head, 7/16 NC x 1 inch

2шт.

46

1336073C1

GENERATOR

ALTERNATOR - gas engine

1шт.

47

1336074C1

PULLEY

SPARE PART PULLEY - alternator, gas engine

1шт.

51

A186018

BATTERY, DRY

BATTERY DRY BATTERY - gas engine

1шт.

52

1334165C1

ANGLE

HOLD-DOWN - battery

1шт.

53

1334167C1

ROD

SPARE PART ROD - hold down, L/H

1шт.

54

1334166C1

ROD

SPARE PART ROD - hold down, R/H

1шт.

v

120392

WASHER,1/4", SAE

WASHER - flat, 9/32 inch I.D.

2шт.

w

26110R1

LOCK NUT,1/4"-20, GC

NUT - lock, 1/4 inch NC distorted thread

2шт.

55

1334168C1

CABLE

SPARE PART CABLE - ground

1шт.

56

1336060C1

CABLE

SPARE PART CABLE - battery

1шт.

mm

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

nn

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

1шт.

57

175778H1

ADAPTER

REDUCER - 3/8 NPT x 1/2 NPT

2шт.

58

1336106C1

GAUGE

SENDER - temperature

1шт.

s

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

aa

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

59

1336105C1

SWITCH

SWITCH - temperature

1шт.

60

1960436C1

LAMP

LIGHT - tail, red

1шт.

b

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

c

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

1шт.

61

1336113C1

PLATE

SPARE PART PLATE - cover (Continued from page 4-4)

1шт.

62

1336115C1

WASHER

SPARE PART WASHER - formed

2шт.

bb

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

cc

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

2шт.

63

1336116C1

KNOB

SPARE PART KNOB - knurled plastic

2шт.

v

120392

WASHER,1/4", SAE

WASHER - flat, 9/32 inch I.D.

2шт.

64

A170746

STARTING MOTOR

STARTER - diesel engine, complete (For components see page 4-85)

1шт.

64

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER

1шт.

64

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

gg

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

CAPSCREW - hex head, M10 x 35 MM

2шт.

y

933965R1

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

hh

30284R1

NUT,M10, Cl 10

NUT - hex, M10, class 9

2шт.

65

A181678

ALTERNATOR

ALTERNATOR - diesel engine, complete (For components see page 4-89)

1шт.

dd

30208R1

NUT,M6, Cl 10

NUT - hex, M6, class 9

1шт.

ee

933833R1

LOCK WASHER,M6

WASHER - lock, M6

1шт.

66

J902469

SPACER

SPACER - alternator

1шт.

vv

30872R1

CAPSCREW - hex head, M10 x 100 MM

1шт.

67

J903922

PLATE

BRACE - alternator

1шт.

j

934299R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

CAPSCREW - hex head, M8 x 45 MM

1шт.

68

1336764C1

SPACER

SPACER- brace

1шт.

69

1336434C2

BAR

BRACKET - adjusting

1шт.

k

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

CAPSCREW - hex head, M10 x 50 MM

1шт.

y

933965R1

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

70

J903091

V-BELT,3.56 mm W x 1422.40 mm L, 8 Ribs

Fan Alternator, Diesel

1шт.

71

1336758C1

HARNESS

SPARE PART HARNESS - wiring, alternator

1шт.

72

A186017

BATTERY, DRY

BATTERY DRY BATTERY - diesel engine

1шт.

73

1336067C1

CABLE

SPARE PART CABLE - battery

1шт.

74

1276725C1

CLIP

SPARE PART CLIP - wiring

1шт.

75

146461C1

RELAY

RELAY - air conditioning

1шт.

76

3060472R91

SWITCH ASSY

SENDER - oil pressure

1шт.

77

1336068C1

CABLE

SPARE PART CABLE - ground

1шт.

pp

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW - hex head, 1/2 NC x 1-1/4 inch

1шт.

ss

120384

WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

rr

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

BOLT - flange head, 1/2 NC x 1 inch

1шт.

qq

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

1шт.

78

1336103C1

KEY

KEY - ignition

1шт.

79

1336991C1

ADAPTER

SPARE PART ADAPTER - oil pressure sender

1шт.

80

1336104C1

LIGHT, WARNING

FLASHER UNIT - c/w knob

1шт.

81

1336082C1

LIGHT

SPARE PART LIGHT - turn indicator

1шт.

82

168251C1

SWITCH

SWITCH - wiper, c/w mounting hardware

1шт.

83

1336071C1

COVER

SPARE PART COVER - starter

1шт.

84

1336072C1

NUT

SPARE PART NUT - cap, #8 NC plastic

1шт.

kk

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

ll

120622

NUT,#8-32

NUT, #8-32

1шт.

85

1336075C1

BELT,0.38" W x 59.00" L

Fan Alternator, Gas

1шт.

86

1336435C1

BAR

SPARE PART BRACKET - adjusting (Continued from page 4-6)

1шт.

t

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

CAPBOLT - hex head, 3/8 NC x 3/4 inch

1шт.

ff

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

87

20893R1

WASHER

WASHER - flat

1шт.

mm

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

zz

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

BOLT - hex head, 5/16 NC x 1 inch

1шт.

88

1336077C1

SUPPORT

SPARE PART MOUNT - alternator/compressor

1шт.

l

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

CAPSCREW - hex head, 3/8 NC x 3 inch

1шт.

m

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 NC distorted thread

1шт.

tt

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex head, 3/8 NC x 1 inch

3шт.

ff

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

jj

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

3шт.

89

REF

INSTRUCTION

NEUTRAL START ASSEMBLY - see steering and ground speed

1шт.

90

1337800C1

COUPLER - insulated male

1шт.

91

1960324C1

BAR

SPARE PART BAR - rectangular mirror mounting

1шт.

h

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - serrated flange lock, 1/4 inch NC

2шт.

ww

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head, square neck, 1/4 NC x 3/4 inch

2шт.

92

1337159C1

RUBBER WASHER

WASHER - rubber

2шт.

93

1960281C1

BOOT

SPARE PART BOOT - rubber, protective

2шт.

Выбрано товаров: 166
