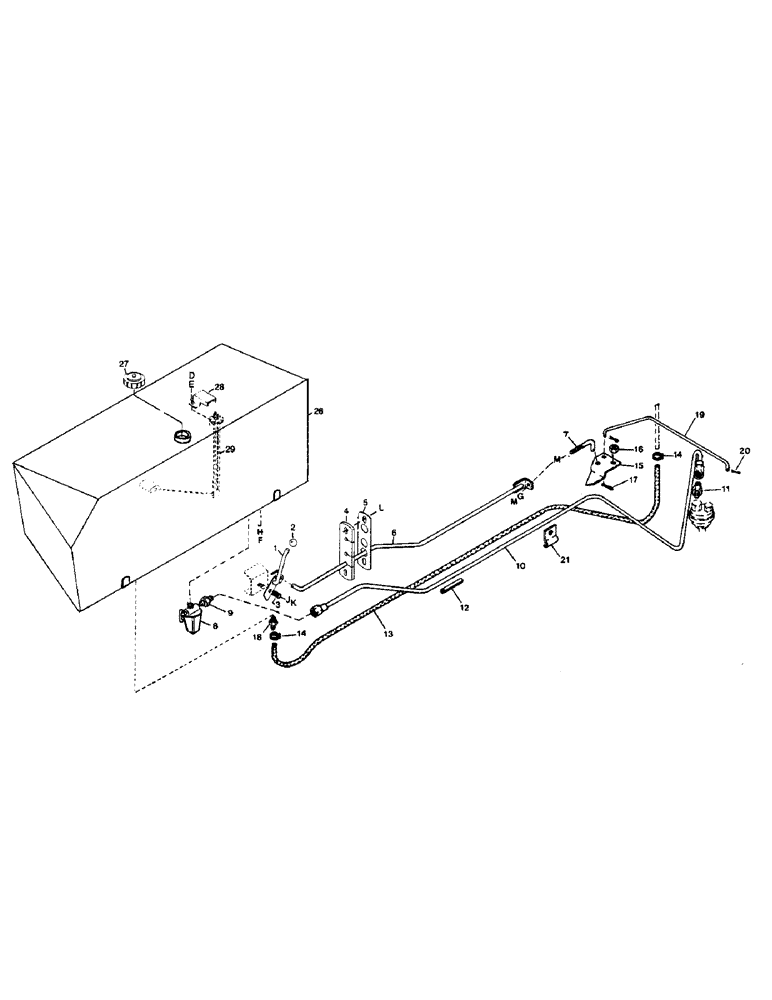

Запчасти Case IH 6000 (3-06) - FUEL GROUP, DIESEL ENGINE (03) - FUEL SYSTEM

1

1336190C1

THROTTLE

LEVER - throttle

1шт.

2

1336191C1

KNOB

- lever

1шт.

3

1334127C1

SPRING

- lever

1шт.

j

NLS

NO LONGER SERVICED

- flat, 17/32 inch I.D.

1шт.

k

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, , Distorted thread 1/2"-13, GC

1шт.

4

1336194C1

BRACKET

ISOLATOR - rubber

1шт.

5

1336195C1

COVER

- throttle rod

1шт.

l

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- flange head, 3/8 NC x 1 inch

2шт.

6

1336193C1

ROD

- throttle

1шт.

7

1336196C1

ROD

LINK - throttle

1шт.

g

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

m

120377

NUT,3/8" - 16, Gr 5

2шт.

8

1336176C1

BOWL

- sediment

1шт.

9

222-806

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/8" NPT

CONNECTOR - male, SAE 45 degrees 5/16 tube x 1/8 inch NPT

1шт.

10

1336759C1

TUBE,7.94 mm OD

LINE - fuel, suction

1шт.

11

191410

CONNECTOR - male, SAE 45 degrees 5/16 tube x 1/4 inch NPT

1шт.

12

1336856C1

HOSE

PROTECTOR - fuel line

1шт.

13

1336760C1

HOSE

- return

1шт.

14

930548R1

BOLT

CLAMP - hose

2шт.

15

1336749C1

CRANK

BELL-CRANK - throttle

1шт.

16

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

17

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

18

1336766C1

NIPPLE, LUBE

INSERT - barbed, 1/4 NPT x 3/16 inch I.D. hose

1шт.

19

1336756C1

ROD

- fuel pump

1шт.

20

132-329

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER) , 1/16" x 3/4"

2шт.

21

1276740C1

CLAMP

CLIP - fuel line

1шт.

26

1336173C1

FUEL TANK

TANK - fuel

1шт.

f

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW- hex head, 1/2 NC x 1-1/4 inch

3шт.

h

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

j

120396

WASHER

- flat, 17/32 inch I.D.

3шт.

27

1336174C1

CAP

- fuel tank

1шт.

28

1336175C1

SHIELD

- fuel gauge sender

1шт.

29

See electrical group

1шт.

d

86511922

SCREW,Pan, #10 - 24 x 3/4"

- machine, Phillips pan head, #10 NC x 3/4 inch

5шт.

e

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.
