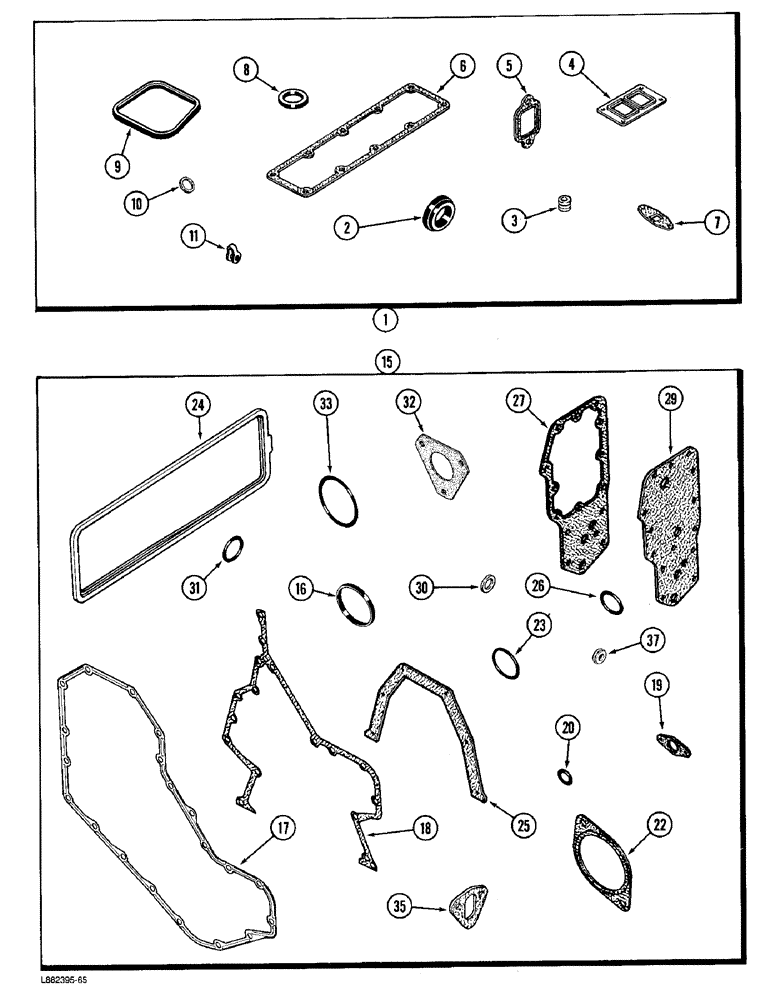

Запчасти Case IH 6000 (2-60) - ENGINE GASKET KITS, 4-390 ENGINE (02) - ENGINE

1

A77481

KIT

GASKET KIT - valve grind, engine (See note A)

1шт.

2

J903301

GASKET

- thermostat

1шт.

3

J901097

SEAL

- valve

8шт.

4

J901356

GASKET,0.5mm Thk

- turbocharger (Not used this application)

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold (Replaces J901999)

1шт.

7

J914388

GASKET

- drain tube (Not used this application)

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker cover

4шт.

10

J900808

SEAL

- injector

4шт.

11

J903380

SEAL

- connector

4шт.

15

A77640

GASKET KIT

- engine block (See note B) (Replaces A77480) CYLINDER BLOCK

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover CYLINDER BLOCK

1шт.

17

J914385

GASKET,1.02mm Thk

- front cover (Replaces J910500) CYLINDER BLOCK

1шт.

18

J914384

GASKET

- gear housing (Replaces J907836) CYLINDER BLOCK

1шт.

19

J905595

GASKET

- pin housing CYLINDER BLOCK

1шт.

20

J903927

O-RING,15.6 mm ID

- sealing CYLINDER BLOCK

1шт.

21

A77441

GASKET

- cover plate CYLINDER BLOCK

1шт.

23

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

- sealing CYLINDER BLOCK

1шт.

24

J904056

GASKET

- tappet cover CYLINDER BLOCK

1шт.

25

J914386

GASKET

- seal retainer (Replaces J901019) CYLINDER BLOCK

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 MM ID CYLINDER BLOCK

1шт.

27

J914387

GASKET

- cooler core (Replaces J904427) CYLINDER BLOCK

1шт.

29

J912532

GASKET

- filter head (Replaces J905589) CYLINDER BLOCK

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug CYLINDER BLOCK

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing CYLINDER BLOCK

1шт.

32

J914389

GASKET

- pump mounting (Replaces J905685) CYLINDER BLOCK

1шт.

33

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

- flywheel housing CYLINDER BLOCK

1шт.

35

J914304

GASKET

- mounting, pump (Replaces J904044) CYLINDER BLOCK

1шт.

37

J900267

SEAL

ASSEMBLY - cover bolt CYLINDER BLOCK

4шт.
