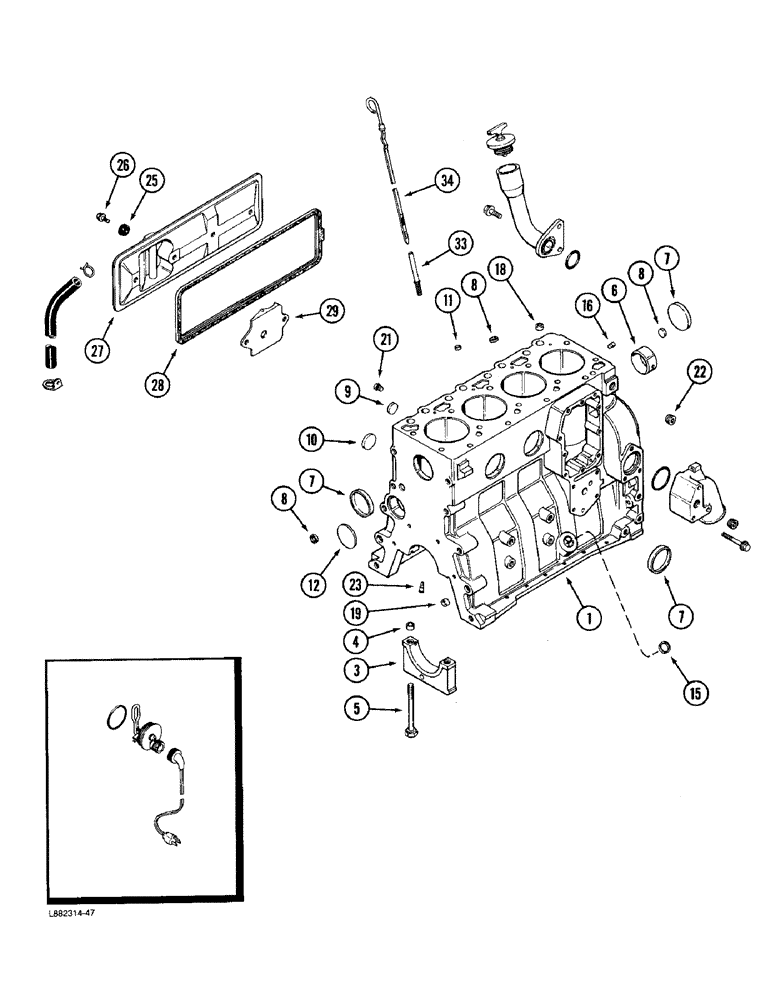

Запчасти Case IH 6000 (2-50) - CYLINDER BLOCK, 4-390 ENGINE (02) - ENGINE

1

J905377

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Order short block and J905813 kit)

1шт.

1

JR905377

ENGINE, EXCHANGE

Block Assembly short, engine, remanufactured

1шт.

1

JC905377

CORE

Return Part Number use this part number to return short block core for credit

1шт.

1

JR933238

REMAN-SHORT ENGINE

Remanufactured

1шт.

1

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905376

CRANKCASE

BLOCK ASSEMBLY - stripped, engine (Order block and J905813 kit)

1шт.

3

J900967

BEARING CAP

CAP - main bearing

5шт.

4

J900068

BEARING WASHER

RING - dowel, 18 MM OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING - camshaft front (See page 2-48)

1шт.

7

J900965

PLUG

- expansion, 58 MM OD

4шт.

8

J900956

PLUG

- expansion, 18 MM OD

3шт.

9

23624R1

PLUG

- expansion, 26 MM

2шт.

J905813

PACKAGE, REPAIR

KIT - block hardware

1шт.

10

J900958

PLUG

- expansion, 32 MM OD

2шт.

11

J900955

PLUG

- expansion, 10 MM OD

1шт.

12

J900687

PLUG

- expansion, (Welch), 60 MM OD

1шт.

15

A77439

PLUG

- expansion, 0.886 MM OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 MM long

2шт.

18

J902343

DOWEL

RING - dowel, 16 MM OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 MM OD

2шт.

21

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

- hex socket pipe, 1/4-18 PT

1шт.

23

J901020

NOZZLE CAP

NOZZLE - piston cooling

4шт.

25

J900267

SEAL

ASSEMBLY - cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

27

J905023

COVER

- tappet

1шт.

28

J904056

GASKET

- tappet cover

1шт.

29

J907586

BAFFLE

- tappet cover

1шт.

33

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick

1шт.

34

J905783

DIPSTICK

- oil level gauge

1шт.
