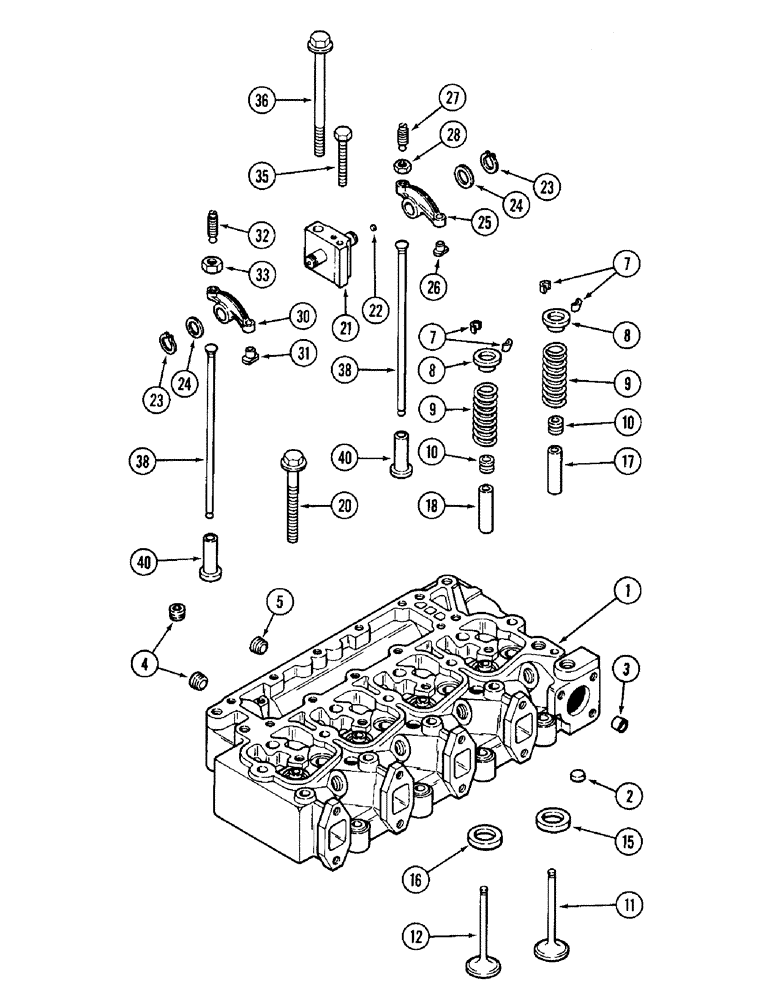

Запчасти Case IH 6000 (2-46) - CYLINDER HEAD AND VALVE MECHANISM, 4-390 ENGINE (02) - ENGINE

JR910275

HEAD (CYLINDER)

HEAD - cylinder, remanufactured (North America only)

1шт.

JC905864

HEAD

RETURN NUMBER - use this part number to return core for credit

1шт.

JC910275

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return head core for credit

1шт.

1

J910275

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new (With valves)

1шт.

1

J913389

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Without valves) (Replaces J909947)

1шт.

2

J902606

PLUG

- expansion (21 MM) OD

3шт.

3

J909403

BUSHING

SLEEVE - cylinder head

1шт.

4

A77429

PLUG

- hex socket pipe, 1/4-18 PT

5шт.

5

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

2шт.

7

J900250

SCREW

KEEPER - valve

16шт.

8

J900299

RETAINER

- valve spring

8шт.

9

J900276

VALVE SPRING

SPRING - valve

8шт.

10

J901097

SEAL

- valve

8шт.

11

J901117

VALVE

- intake

4шт.

12

J901607

VALVE

- exhaust

4шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve (Service repair only)

4шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve (Service repair only)

4шт.

17

J904408

GUIDE

- vlave, intake (Service repair only)

4шт.

18

J904409

GUIDE

- valve, exhaust (Service repair only)

4шт.

20

J903938

BOLT

- hex flange head, M12 x 1.75 x 70 MM

4шт.

20

J903939

BOLT

- hex flange head, M12 x 1.75 x 120 MM

10шт.

21

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm (Replaces J907048)

4шт.

22

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

23

J900242

SNAP RING

RING - retaining, rocker arm

8шт.

24

J900245

WASHER

- thrust, rocker arm

8шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake (Replaces J900540)

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 MM

1шт.

28

25-176

NUT,3/8"-24, G5, Hvy

- hex jam, 3/8 inch NF

1шт.

30

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust (Replaces J900539)

4шт.

31

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 MM

1шт.

33

25-176

NUT,3/8"-24, G5, Hvy

- hex heavy, 3/8 inch NF

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, M8 x 1.25 x 75 MM

4шт.

36

J903940

BOLT

- hex flange head, M12 x 1.75 x 180 MM

4шт.

38

J904679

PUSH ROD

ROD - push, rocker arm

8шт.

40

J907240

TAPPET

- valve, push rod

8шт.
