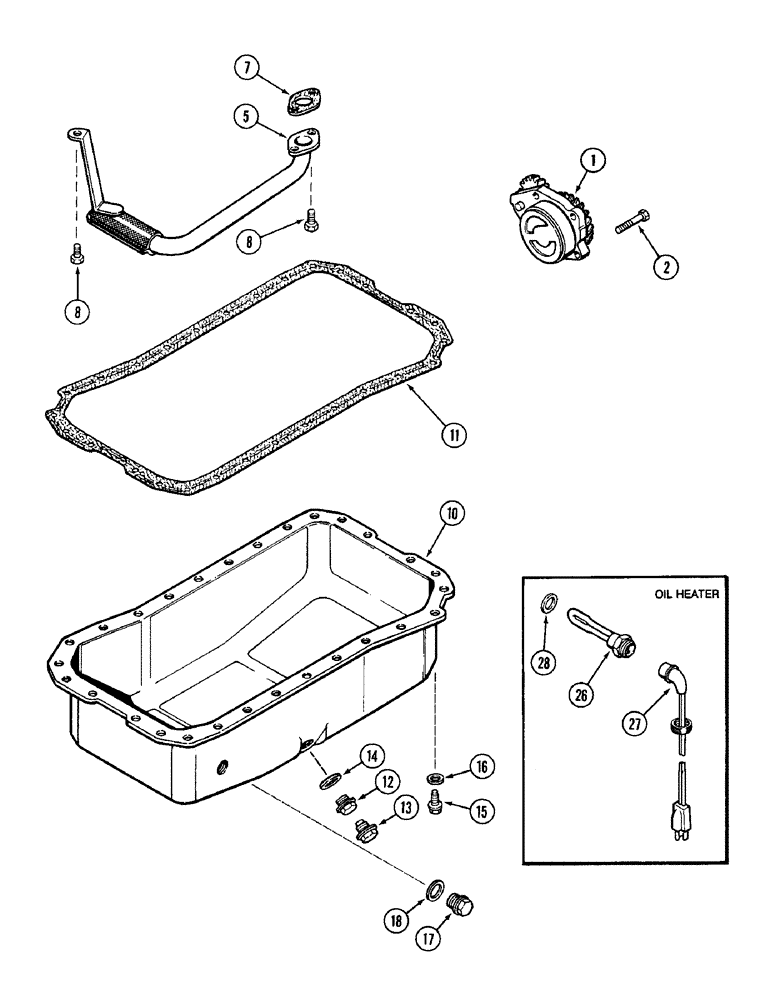

Запчасти Case IH 6000 (2-42) - OIL PUMP AND OIL PAN, 4-390 ENGINE, ENGINE OIL HEATER (02) - ENGINE

1

J906413

PUMP

PUMP ASSEMBLY - oil, engine

1шт.

JR906413

PUMP

PUMP - oil, remanufactured (North America only)

1шт.

JC906413

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, M8 x 1.25 x 30 MM

4шт.

5

J905223

TUBE

TUBE - suction, oil

1шт.

7

J914383

GASKET

GASKET - mounting, tube

1шт.

Part of oil pan gasket kit P/N A77482

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

3шт.

10

J907570

PAN

PAN - oil, engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

Part of oil pan gasket kit P/N A77482

1шт.

12

J900215

PLUG

PLUG - drain, oil (Alternate with J911638 plug)

1шт.

13

J911638

PLUG,M18 x 1.5

PLUG - drain, oil magnetic (Alternate with J900215 plug)

1шт.

14

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of oil pan gasket kit P/N A77482

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange head, M18 x 16

28шт.

16

J907537

SPRING WASHER

WASHER - spring

28шт.

17

J904386

PLUG

PLUG - pipe

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

A77482

KIT

GASKET KIT - oil pan, Includes: Ref. 7, 11 and 14

1шт.

25

A77490

KIT

KIT - heater, engine oil ENGINE OIL HEATER

1шт.

P/N J902425 washer must also be ordered

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt (Order A77490) ENGINE OIL HEATER

1шт.

27

J905113

CABLE

CABLE - heater electric ENGINE OIL HEATER

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal ENGINE OIL HEATER

1шт.
