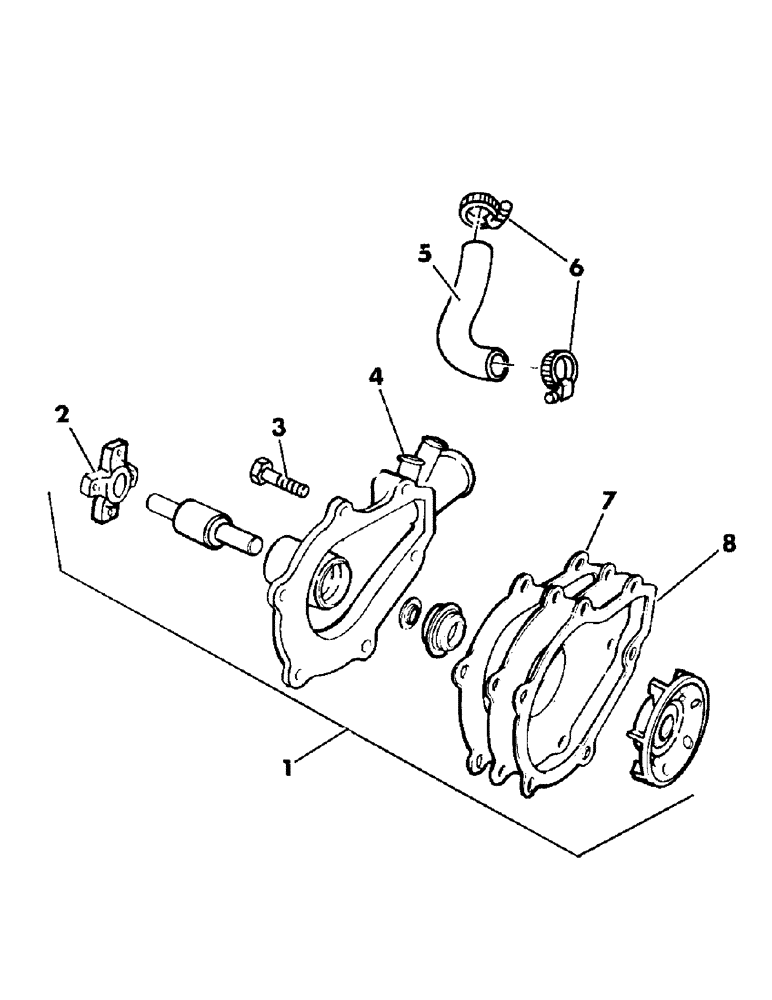

Запчасти Case IH 6000 (2-24) - WATER PUMP, H225 GAS ENGINE (02) - ENGINE

1

81489C1

PUMP

- water

1шт.

2

81493C1

HUB

- fan pulley

1шт.

3

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW - water pump, 3/8 x 1-1/4 inch

3шт.

3

113-2228

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

SCREW - water pump, 3/8 x 1-5/8 inch

1шт.

3

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW - water pump, 3/8 x 1-1/8 inch

1шт.

4

81491C1

NIPPLE, LUBE

NIPPLE - by-pass, water pump

1шт.

5

364359C1

HOSE

- by-pass, water pump, 3-1/2 inches

1шт.

6

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP - hose

2шт.

7

830510C1

GASKET

- water pump intermediate plate

1шт.

8

F19695

GASKET

- water pump body

1шт.
