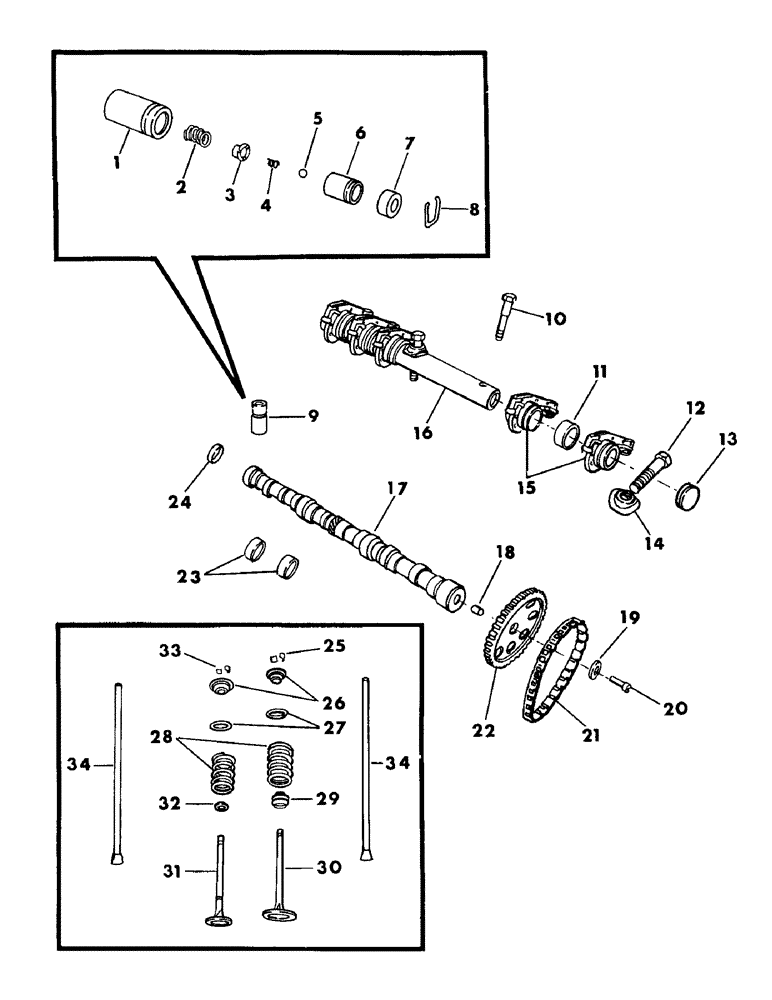

Запчасти Case IH 6000 (2-20) - CAMSHAFT, VALVES, ROCKET SHAFT AND TIMING CHAIN, H225 GAS ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
BODY - tappet
1шт.
2
NSS
NOT SOLD SEPARAT
SPRING - plunger
1шт.
3
NSS
NOT SOLD SEPARAT
RETAINER
1шт.
4
NSS
NOT SOLD SEPARAT
SPRING - check valve
1шт.
5
NSS
NOT SOLD SEPARAT
BALL - check
1шт.
6
NSS
NOT SOLD SEPARAT
PLUNGER
1шт.
7
NSS
NOT SOLD SEPARAT
CAP - plunger
1шт.
8
NSS
NOT SOLD SEPARAT
CLIP - retainer, plunger spring
1шт.
9
81519C1
TAPPET
- valve, includes items 1-8
12шт.
10
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
Rocker shaft retainer Hex, 3/8"-16 x 1 3/4", G5
6шт.
11
830566C1
SPACER
- valve rocker
6шт.
12
830570C1
SCREW,5/16" - 18 x 2.28"
- rocker shaft retainer, 5/16 x 2-1/4 inch
1шт.
13
830571C1
PLUG
- valve rocker shaft
2шт.
14
830568C1
RETAINER
- rocker shaft, ends and intermediate
6шт.
14
830569C1
RETAINER
- rocker shaft, center
1шт.
15
81521C1
ARM
ROCKER - valve
12шт.
16
81522C1
SHAFT
- rocker
1шт.
17
81476C1
CAMSHAFT
1шт.
18
81477C1
DOWEL
- camshaft sprocket
1шт.
19
830489C1
WASHER
- sprocket retaining screw
1шт.
20
181140
SCREW,Hex, 7/16" - 14 x 1 3/8"
- sprocket retaining
1шт.
21
830490C1
CHAIN (AG)
CHAIN - timing
1шт.
22
830488C1
SPROCKET ASSY.
SPROCKET - camshaft
1шт.
23
81478C1
CAMSHAFT BEARING
- camshaft, no. 1
1шт.
23
81479C1
CAMSHAFT BEARING
- camshaft, no. 2
1шт.
23
81480C1
CAMSHAFT BEARING
- camshaft, no. 3
1шт.
23
830494C1
CAMSHAFT BEARING
- camshaft, no. 4
1шт.
24
830524C1
PLUG
- camshaft rear bearing
1шт.
25
F19758
LOCK
- exhaust valve spring
12шт.
26
830552C1
RETAINER
- valve spring
12шт.
27
830554C1
WASHER
SPACER - valve spring
12шт.
28
830551C1
SPRING
- intake and exhaust valve
12шт.
29
81512C1
SHIELD
- oil, exhaust valve stem
6шт.
30
F21830
VALVE
- exhaust, std.
6шт.
31
830546C1
VALVE
- intake, std.
6шт.
32
81507C1
SHIELD
SEAL - oil, intake valve stem
6шт.
33
830553C1
LOCK
- intake valve spring
12шт.
34
81520C1
ROD
- push, valve
12шт.
Выбрано товаров: 38
