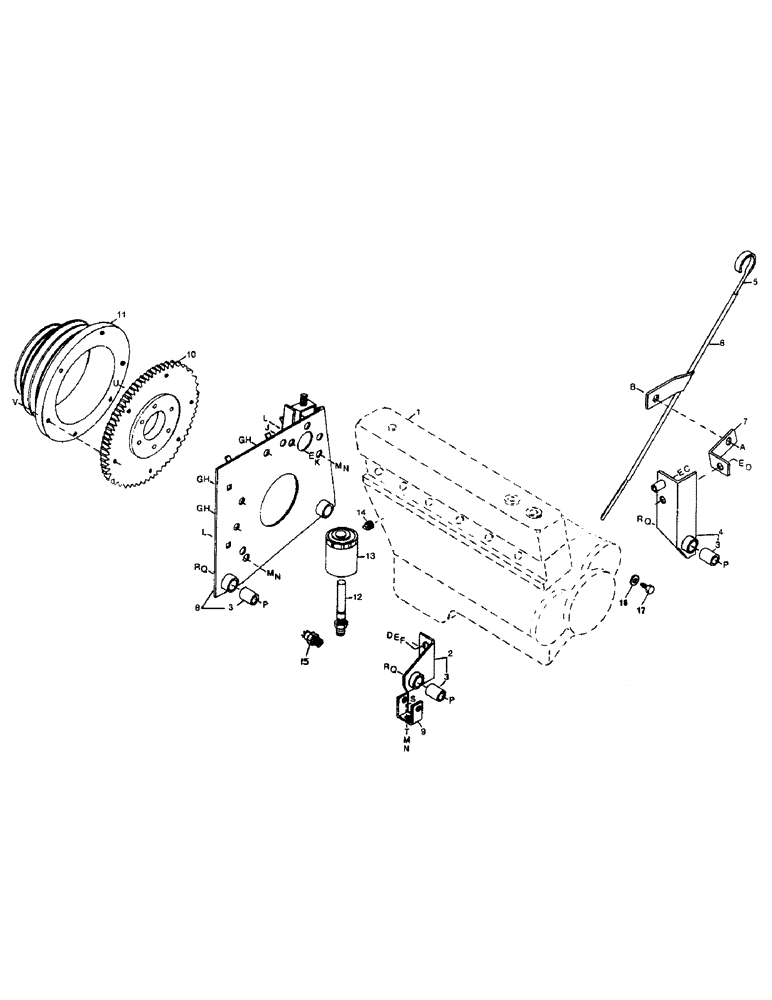

Запчасти Case IH 6000 (2-12) - GAS ENGINE, MOUNTS AND FLYWHEEL (02) - ENGINE

1

1336178C1

ENGINE ASSEMBLY

ENGINE - Chrysler H 225 Industrial

1шт.

2

1336179C1

BRACKET

MOUNT - left front motor, c/w rubber bushing

1шт.

d

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAPSCREW - hex head, 7/16 NC x 1-1/4 inch

2шт.

e

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

f

496-21047

WASHER

- flat, 15/32 inch I.D.

2шт.

3

825827C1

BUSHING

- rubber

4шт.

4

1336180C1

BRACKET

MOUNT - left rear motor, c/w rubber bushing

1шт.

c

180157

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

CAPSCREW - hex head, 7/16 NC x 2-1/2 inch

1шт.

d

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAPSCREW - hex head, 7/16 NC x 1-1/4 inch

1шт.

e

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

1336184C1

INDICATOR

- oil level

1шт.

6

1336183C1

TUBE

- oil level indicator

1шт.

7

1336182C1

BRACKET

- oil level tube

1шт.

a

131-1

LOCK NUT,1/4"-28, GB

CAPSCREW - hex head, 1/4 NC x 1/2 inch

1шт.

b

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- serrated flange lock, 1/4 inch NC

1шт.

8

1336185C1

PLATE

BACKPLATE - c/w rubber bushings

1шт.

g

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

h

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

j

113-323

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

e

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

k

129-104

NUT,7/16"-14, G5

1шт.

l

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

m

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

n

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

p

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

CAPSCREW - hex head, 5/8 NC x 4 inch

1шт.

q

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

r

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

9

1336181C1

BRACKET

- motor mount

3шт.

p

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

CAPSCREW - hex head, 5/8 NC x 4 inch

3шт.

q

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

r

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

3шт.

s

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head, square neck, 1-1/2 NC x 1-1/4 inch

3шт.

t

NLS

NO LONGER SERVICED

- flat, 17/32 inch I.D.

3шт.

m

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

n

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

10

1336186C1

FLYWHEEL

- c/w ring gear

1шт.

u

25796R1

BOLT,Hex, 7/16" - 20 x 1", Gr 8

CAPSCREW - hex head, 7/16 NF x 7/8 inch

6шт.

11

1336187C1

PULLEY

- flywheel

1шт.

v

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

Whiz-lock Hex Flg, 5/16"-18 x 1", Serr

6шт.

12

830463C91

PIPE

- oil filter stand

1шт.

13

1336188C1

FILTER

- oil

1шт.

14

397299R1

PLUG

- pipe, 1/4 inch NPT

1шт.

15

81538C1

SWITCH

- oil pressure (Continued from page 2-12)

1шт.

16

830544C1

WASHER

- vibration dampener

1шт.

17

830543C1

BOLT,1.88"

SCREW - vibration dampener

1шт.
