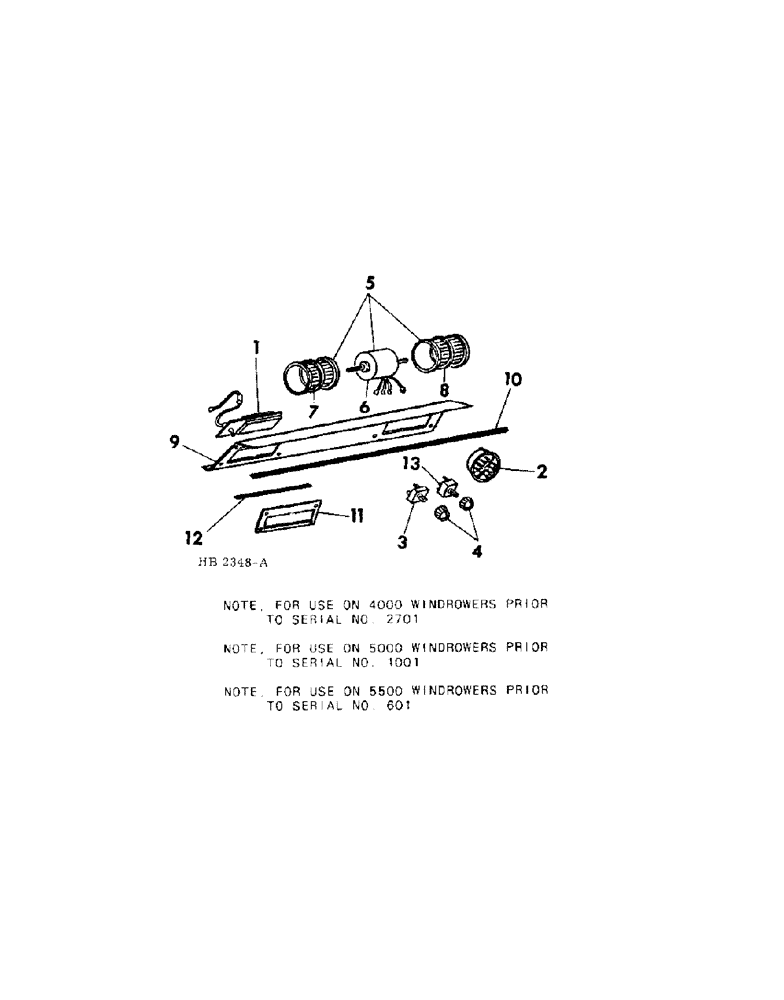

Запчасти Case IH 5500 (13-17[A]) - SUPERSTRUCTURE, OPERATORS CAB BLOWER (05) - SUPERSTRUCTURE

1

173907C1

LIGHT ASSY, dome

1шт.

455490

BULB,C-6, #1003, 12V, .94W

LAMP, dome light

1шт.

24416R1

SCREW,Cross Oval Hd, #6 x 3/8"

no. 6-20 x 3/8 pan hd cross recess tapping

4шт.

827439C1

CONNECTOR, male

1шт.

2

173913C1

DEFLECTOR

VENTILATOR, louvred air

6шт.

3

168251C1

SWITCH

ASSY, light control

1шт.

109311H

JAM NUT

switch mtg

1шт.

4

200860C1

KNOB

light and blower switch control

2шт.

5

175576C91

BLOWER

ASSY, Consists of

1шт.

175577C1

MOTOR

1шт.

174922C1

RIM

WHEEL

1шт.

175310C1

RIM

WHEEL

1шт.

6

175577C1

MOTOR

blower

1шт.

186494

SCREW, 1/4-20 x 1 hex-hd

8шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 tooth lock

2шт.

7

174922C1

RIM

WHEEL, counter clockwise rotation fan

1шт.

8

175310C1

RIM

WHEEL, clockwise rotation fan

1шт.

9

827442C1

BRACKET, blower mounting

1шт.

10

SEAL, bracket insulator 23.6 inch, For service order from bulk stock no. 198530C1

1шт.

11

827444C1

GASKET, blower mtg

2шт.

12

175578C1

INSULATOR

blower mount

8шт.

13

168822C2

SWITCH

ASSY, blower control

1шт.

109311H

JAM NUT

switch mtg

1шт.

827440C1

PRODUCT GRAPHIC, light control

1шт.

827431C1

PRODUCT GRAPHIC

blower control

1шт.
