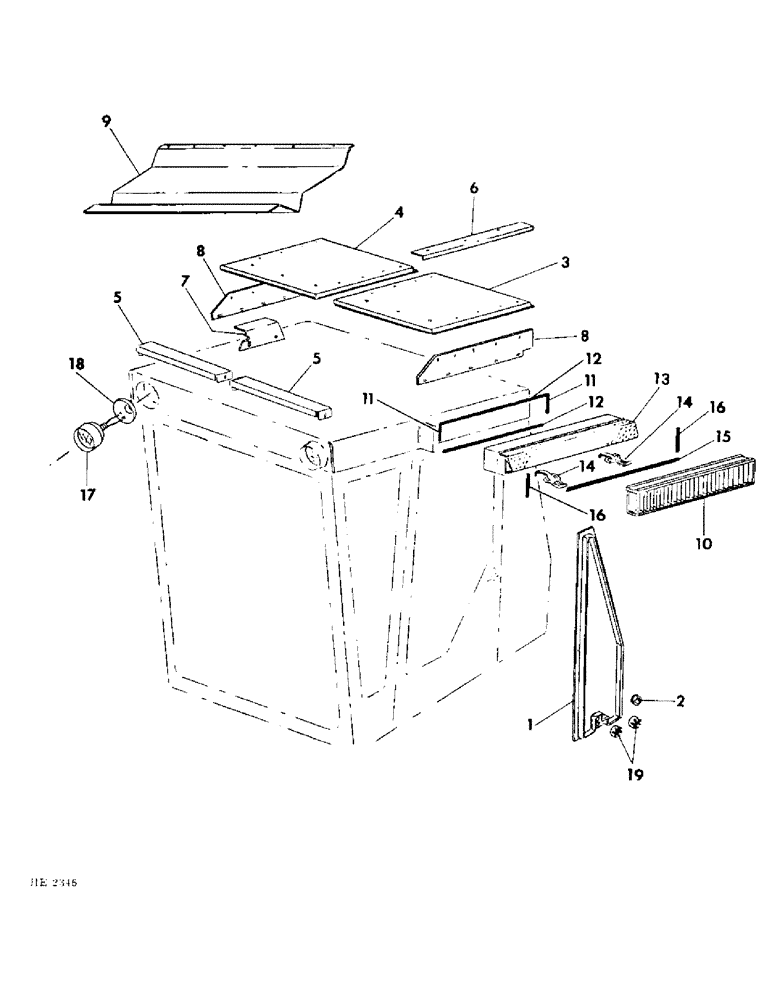

Запчасти Case IH 5500 (13-15) - SUPERSTRUCTURE, OPERATORS CAB SUPPORTS AND FILTER (05) - SUPERSTRUCTURE

1

827411C1

PANEL ASSY, cab inner LH side cover

1шт.

456107C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 pan-hd cross recess tapping

18шт.

2

117963

GROMMET,1/2" ID x 1 1/16" x .062"

1/2 I.D. size no. 7 in panel for wiring

1шт.

3

827418C1

PANEL ASSY, ceiling LH

1шт.

4

827419C1

PANEL ASSY, ceiling RH - Not for use with air conditioner shown

1шт.

4

827433C91

PANEL ASSY, ceiling RH - For use with air conditioning, For service parts refer to ceiling RH

1шт.

24397R1

SCREW, 10-16 x 7/8 pan-hd cross recess tapping type

22шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 tooth lock

22шт.

827420C1

SPACER, split

22шт.

5

827421C1

ANGLE, front insulator support

2шт.

463-6108

BOLT,Hex, #10 - 32 x 1/2"

10-32 x 1/2 hex-hd

4шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

6

827422C1

ANGLE, rear insulator support

3шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

9шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 tooth lock

9шт.

7

827423C1

ANGLE, support

1шт.

21026R1

SCREW

1/4-20 x 1/2 hex-hd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

827424C1

PANEL, roof side filler

2шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

20шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 tooth lock

20шт.

9

827438C1

PANEL ASSY, inside front

1шт.

431942

SUPPORT,Hex, #10 - 32 x 1/2"

10-32 x 1/2 hex-hd mach

6шт.

24407R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, 1/4" x 1/2"

9шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 pan-hd slt mach

3шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

6шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 tooth lock

6шт.

827435C1

NUT, 1/4-20 u-type speed

3шт.

10

827425C1

FILTER

dust

1шт.

11

SEAL, filter side 5.9 inch, For service order from bulk stock no. 198096C1

2шт.

12

SEAL, filter top & bottom 32.2 inch, For service order from bulk stock no. 198096C1

2шт.

13

198109C1

SCREEN

ASSY, air intake, Includes 2-168481C1 latch

1шт.

21026R1

SCREW

1/4-20 x 1/2 hex-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

14

168481C1

LATCH ASSY.

LATCH, air intake, Serial Range: screen-welded

2шт.

15

STRIP, screen rubber sealing 27.8 inch, For service order from bulk stock no. 198578C1

1шт.

16

STRIP, screen rubber sealing 9 inch, For service order from bulk stock no. 198578C1

2шт.

17

175569C91

HEADLAMP

LIGHT ASSY, head upper, For service parts refer to cab headlight section 8

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 hex jam

2шт.

18

196700C1

FLANGE

WASHER, light mounting retainer

2шт.

19

432366

HOLE PLUG BUTTON,1 3/8"

PLUG, 1-3/8 button, Not for use w/air conditioner

2шт.

827428C1

PRODUCT GRAPHIC, filter location

1шт.

827429C1

PRODUCT GRAPHIC, instruct

1шт.
