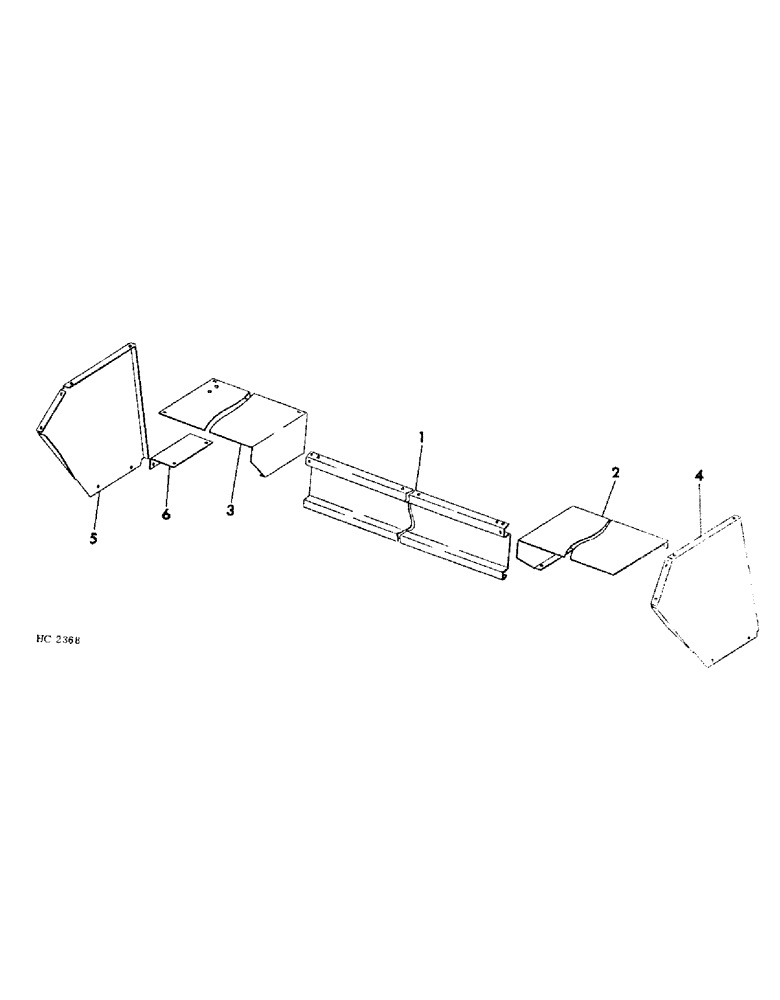

Запчасти Case IH 5500 (13-10) - SUPERSTRUCTURE, OPERATORS DECK COVERS AND SUPPORTS, FOR USE ON 5500 WINDROWERS (05) - SUPERSTRUCTURE

1

828974C1

PANEL ASSY, front cover upper

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

2

828979C1

COVER, front cover panel top LH

1шт.

3

828981C1

COVER, front cover panel top RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

4шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

20893R1

WASHER

.344 x 1.000 x .105

8шт.

4

828977C1

COVER, front panel end LH

1шт.

5

828978C1

COVER, front panel end RH

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

4шт.

6

830104C1

SUPPORT, front panel cover RH

1шт.

850677C1

SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

5/16 x 1/2 taptite

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.
