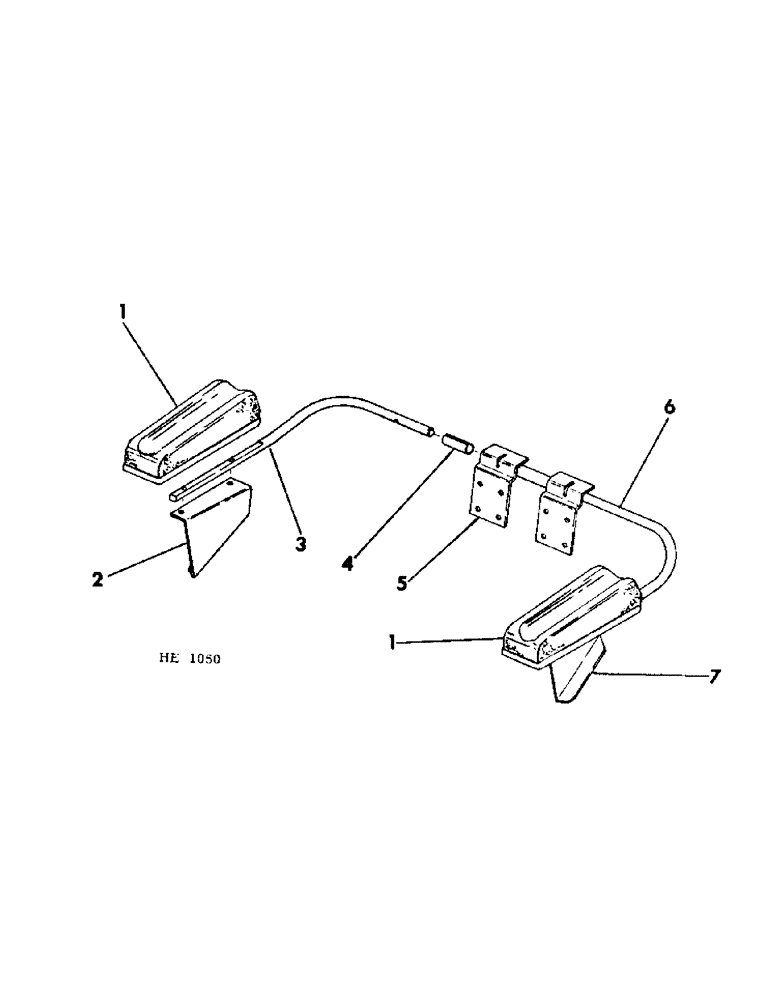

Запчасти Case IH 5500 (13-09) - SUPERSTRUCTURE, OPERATORS SEAT ARM REST BOSTRUM (05) - SUPERSTRUCTURE

825242C91

ARMREST

REST ASSY, seat arm, Consists of all parts listed

1шт.

1

825243C2

ARMREST

REST, arm

2шт.

160568

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

1/4-20 x 1-1/4 pan hd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

825246C1

SUPPORT, RH

1шт.

3

825261C1

ROD, arm rest RH

1шт.

20895R1

PIN,1/4" x 1", Coiled

1шт.

4

825263C1

STRIP, bearing

2шт.

5

825262C1

TUBE, rear bracket

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex hd

4шт.

6

825260C1

ROD, arm rest LH

1шт.

20895R1

PIN,1/4" x 1", Coiled

1шт.

7

825245C1

SUPPORT, LH

1шт.
