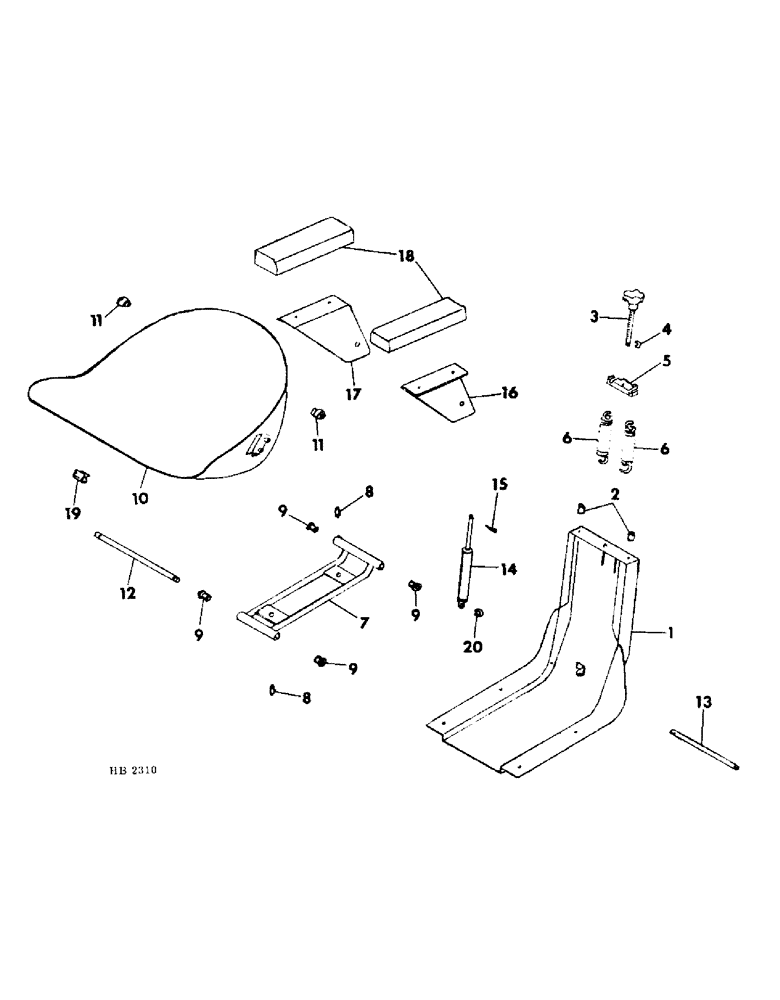

Запчасти Case IH 5500 (13-08) - SUPERSTRUCTURE, OPERATORS SEAT GRAMMER (05) - SUPERSTRUCTURE

827357C92

SEAT

ASSY, operators, Consists of all parts listed

1шт.

1

827365C1

BASE ASSY, seat

1шт.

2

826879C1

BUMPER

seat suspension

2шт.

931568R1

SCREW,Pan Slotted, M4.8 x 1.6 x 32mm

A4 9 x 32 din pan-hd slotted tapping

2шт.

3

827359C1

ADJUSTMENT SCREW

tension adjusting

1шт.

4

827360C1

WASHER

WASHER, screw retaining

1шт.

5

3134838R1

HOLDER

BRACKET, spring

1шт.

6

827361C1

SPRING

seat tension

2шт.

7

827366C1

STABILIZER, seat

1шт.

8

3134835R1

BUMPER

seat

2шт.

9

3134834R1

BUSHING

stabilizer pivot

4шт.

10

827367C1

CUSHION

seat

1шт.

11

3217347R1

ROLLER

seat cushion

2шт.

12

PIN, seat stabilizer with cotter pin locking, For service order 1-3217343R1 pin and 2-3217345R1 retaining ring

1шт.

12

3217343R1

PIN

seat stabilizer

1шт.

3217345R1

WASHER

RING, retaining

2шт.

13

827362C1

PIN

seat base pivot

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

2шт.

14

827363C1

SHOCK ABSORBER

ABSORBER, seat shock

1шт.

15

827364C1

RIVET,Flat Hd, M4 x 25

shock absorber

1шт.

16

826874C1

SUPPORT

arm rest LH

1шт.

17

826875C1

SUPPORT

arm rest RH

1шт.

717444R1

NUT

hex self locking

2шт.

21796R1

WASHER

.656 x 1.000 x .054

4шт.

18

826881C1

CUSHION

arm rest

2шт.

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, Hex, M8 x 16, 8.8, Full Thd

4шт.

934676R1

LOCK WASHER,M8

WASHER

4шт.

19

827368C1

CLIP

CLAMP, seat cushion

10шт.

20

826877C1

RING

shock absorber retaining

1шт.
