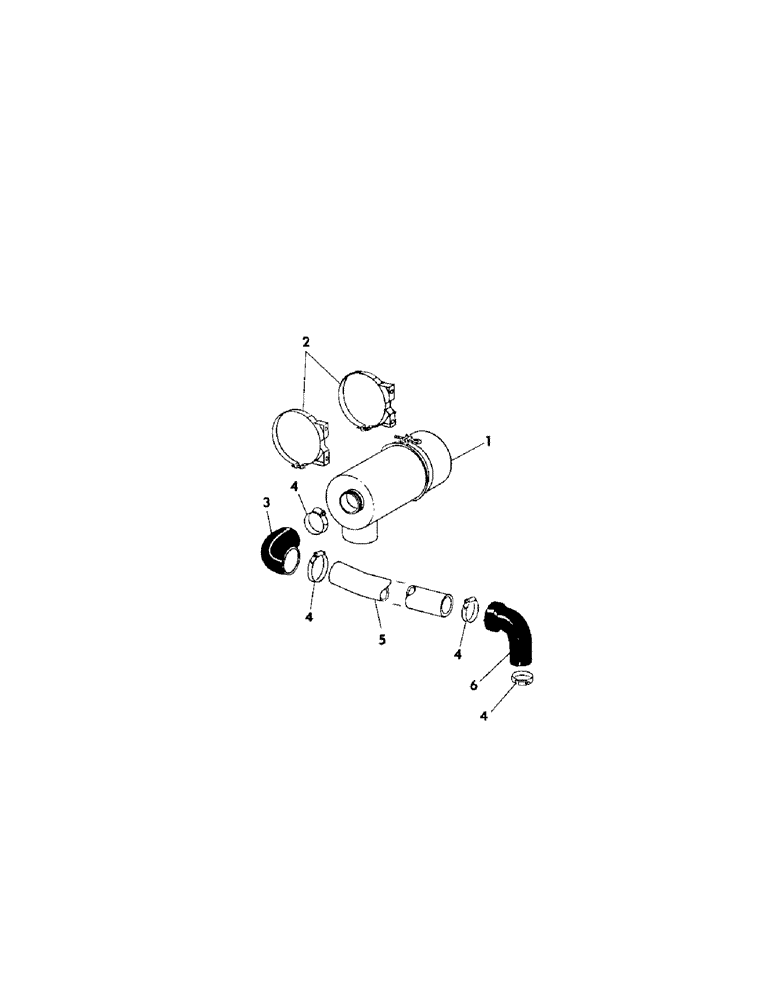

Запчасти Case IH 5500 (12-44[A]) - POWER, AIR CLEANER AND CONNECTIONS D-239 DIESEL ENGINE FOR USE ON 5000 AND 5500 WINDROWERS Power

1

831888C92

CLEANER

ASSY, air dry type, For service parts refer to air cleaner

1шт.

2

103760H1

CLAMP

air cleaner

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

469668R1

WASHER

.406 x .750 x .054

4шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

3

827876C1

INTAKE AIR HOSE,2.50" ID x 5.00", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

HOSE, air cleaner to tube

1шт.

4

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, hose

4шт.

5

828607C1

TUBE,2.5" OD, 26.7, 5" Length

air cleaner

1шт.

6

828608C1

HOSE

intake manifold

1шт.
