Запчасти Case IH 5500 (12-34) - POWER, FUEL SYSTEM D-239 DIESEL ENGINE, FOR USE ON 5000 AND 5500 WINDROWERS Power

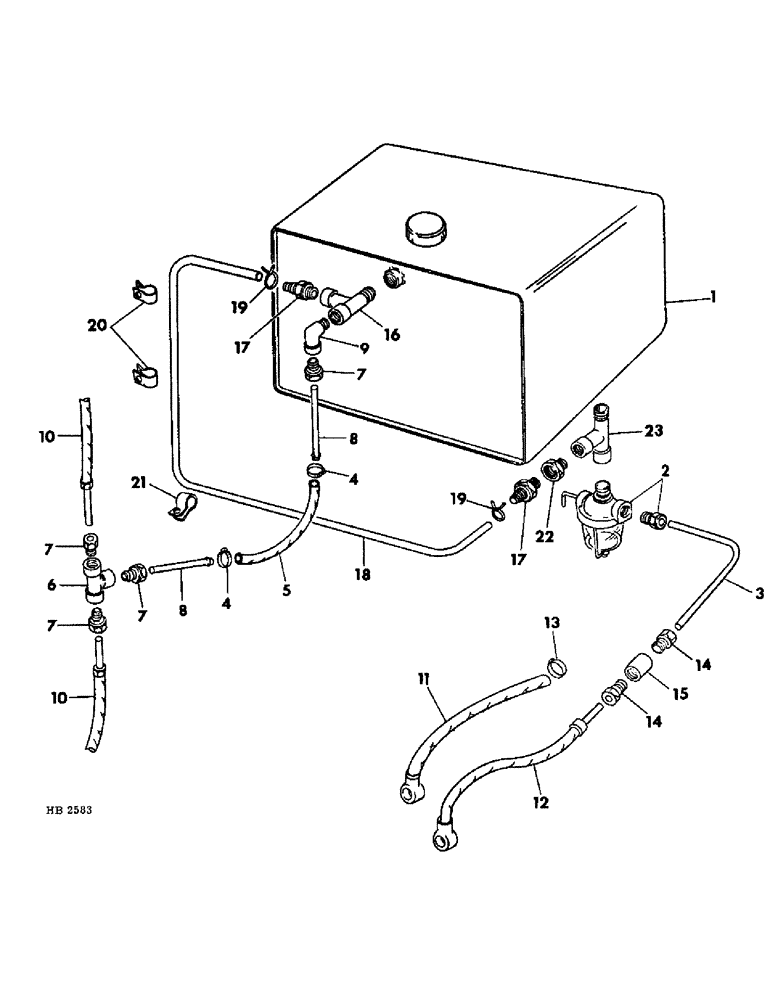

Схема запчастей Case IH 5500 - (12-34) - POWER, FUEL SYSTEM D-239 DIESEL ENGINE, FOR USE ON 5000 AND 5500 WINDROWERS Power

Артикул

Название

Примечание

Количество

1

TANK ASSY, fuel, For service parts refer to fuel tank & supports

1шт.

2

61782C91

STRAINER ASSY.

STRAINER ASSY, fuel, For service parts refer to fuel strainer

1шт.

2

61782C91GV

BOWL

Value, Fuel Strainer

1шт.

3

830035C2

TUBE

fuel supply to filter hose

1шт.

4

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

5

829290C1

HOSE

fuel return

1шт.

6

51542D

TEE, 5/16 tube 1/2"-20

1шт.

7

222-503

TUBE NUT,1/2"-20

NUT, 5/16 hi duty tube

4шт.

8

829289C1

TUBE,0.625" OD, 2" Length

return

2шт.

9

36391D

ELBOW,90 Degree x 1/4" NPT x 1/2"-20

hi duty 90 deg

1шт.

10

LINES, engine fuel connections, For service parts refer to parts catalog Engine 4

1шт.

11

3144655R1

HOSE

LINE, fuel supply, For use w/clamp type fuel connecting line

1шт.

12

3218491R1

HOSE

LINE, fuel supply, For use w/fitting type fuel connecting line

1шт.

13

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

For use w/clamp type fuel connecting line #06, .44/.78 Type F Worm

1шт.

14

222-503

TUBE NUT,1/2"-20

NUT, 5/16 hi duty tube, For use w/fitting type fuel connecting line

2шт.

15

50050D

UNION, 5/16 hi duty tube, For use w/fitting type fuel connecting line

1шт.

16

444148

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1/4 pipe, 1978 season and since

1шт.

17

244325R91

NIPPLE, LUBE

FITTING, hose, 1978 season and since

2шт.

18

831713C1

TUBE, sight gauge, 1978 season and since

1шт.

19

831871C1

CLAMP, hose, 1978 season and since

2шт.

20

831872C1

HOSE CLAMP

CLAMP, closed 1/4 hole x 3/8, 1978 season and since

2шт.

180016

SPRING

1/4-20 x 1-2 hex hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

299404C1

CLAMP

closed 3/8 hole x 3/8, 1978 season and since

1шт.

22

444028

REDUCER,3/8"-18 NPTF x 1/4"-18 Fem NPTF

BUSHING, reducer pipe 3/8 x 1/4, 1978 season and since

1шт.

23

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

3/8 pipe, 1978 season and since

1шт.

Выбрано товаров: 27
