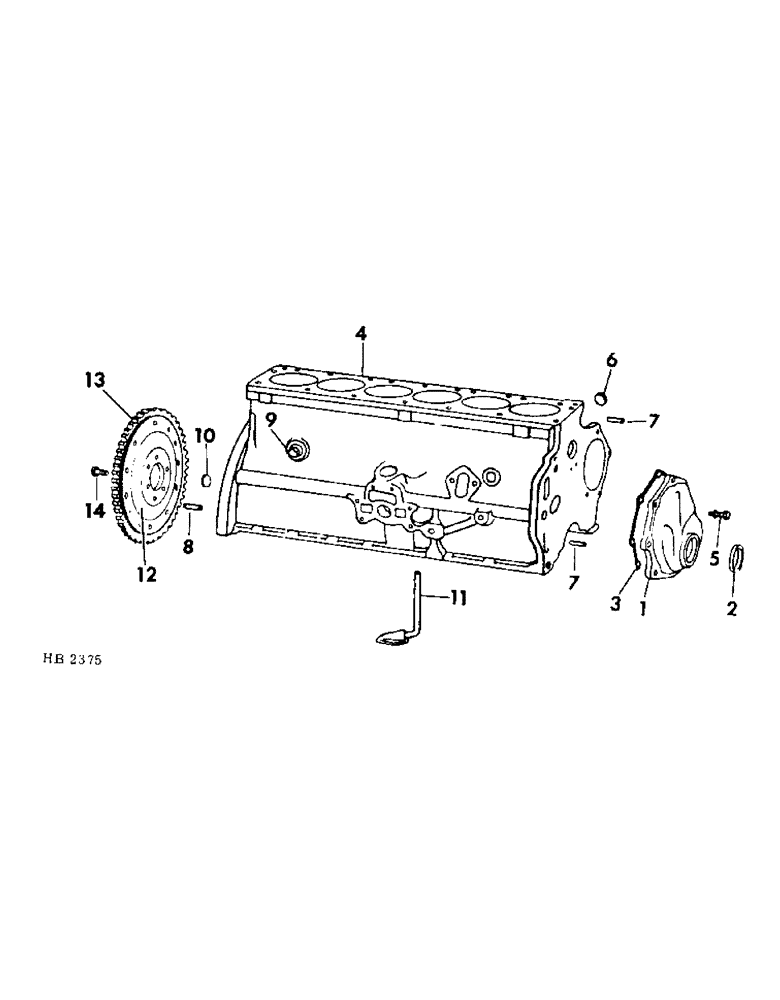

Запчасти Case IH 5500 (12-16) - POWER, HB-225 GAS ENGINE CYLINDER BLOCK Power

1

830499C91

COVER ASSY, timing chain, Includes 1-830500C1 seal, Chrysler P/N 3769960

1шт.

2

830500C1

SEAL

cover, Chrysler P/N 3830108

1шт.

3

830501C1

GASKET

cover, Chrysler P/N 1947554

1шт.

4

BLOCK, engine cylinder, For service order 1-830147C91 engine assy

1шт.

444697

PLUG,Hex Soc, 3/8"-18

3/8-18 oil line front

1шт.

830523C1

PLUG

3/8-18 oil line rear, Chrysler P/N 6028668

1шт.

5

830503C1

BOLT,Hex, 5/16 - 18" x 3/4", Drilled

W/WASHER, 5/16-18 x 3/4 hex-hd, Chrysler P/N 6024246

1шт.

6

830521C1

PLUG, block core hole, Chrysler P/N 2406356

5шт.

7

141195

PIN

block to head dowel 1/4 x .688

2шт.

8

830522C1

PIN

block to plate dowel, Chrysler P/N 1122532

1шт.

9

444619

PIPE CLAMP

PLUG, 1/4-18 water drain

1шт.

10

830524C1

PLUG

camshaft, Chrysler P/N 2402905

1шт.

11

830601C1

PIPE W/STRAINER, oil pump suction, Chrysler P/N 2122867

1шт.

12

830464C91

FLYWHEEL W/RING GEAR, Includes 1-830465C1 gear, Chrysler P/N 2863405

1шт.

13

830465C1

GEAR, ring, Chrysler P/N 1673646

1шт.

14

830466C1

BOLT, flywheel attaching, Chrysler P/N 6030536

6шт.
