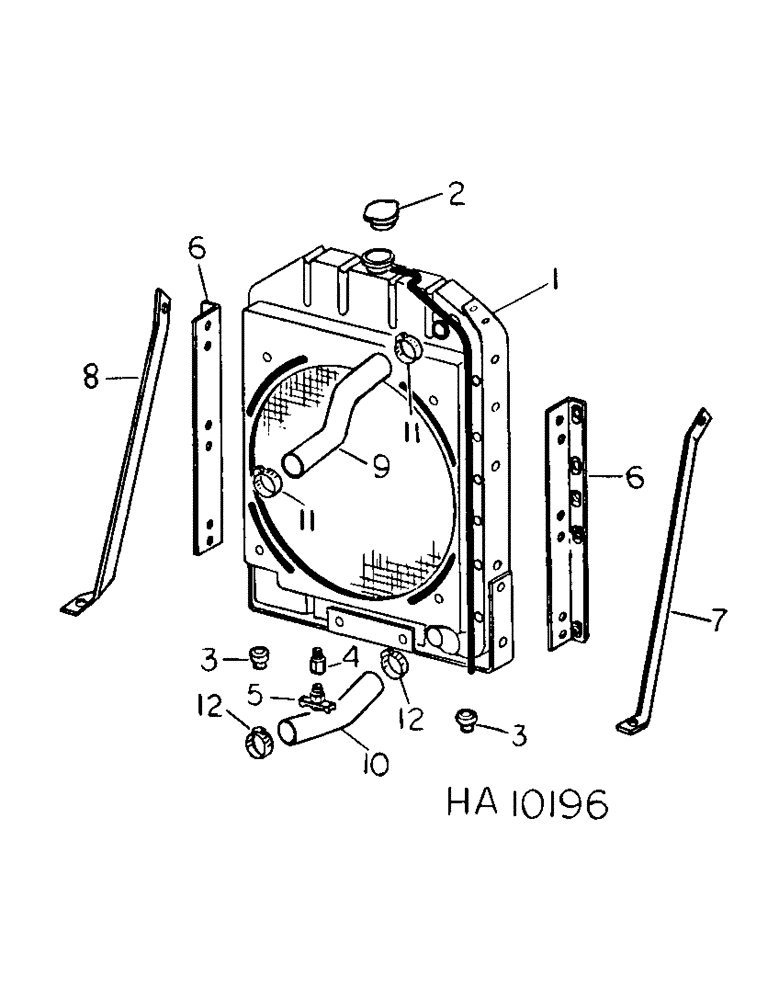

Запчасти Case IH 5500 (06-03) - COOLING, RADIATOR AND CONNECTIONS, D-239 DIESEL ENGINE FOR USE ON 5000 AND 5500 WINDROWERS Cooling

1

827980C1

RADIATOR

ASSY, less cap

1шт.

2

80889R91

COVER

CAP, radiator opt with 118029R91 or 73047R91 cap

1шт.

2

118029R91

RADIATOR CAP

CAP, radiator opt with 80889R91 or 73047R91 cap

1шт.

2

73047R91

CAP

radiator opt with 118029R91 or 80889R91 cap

1шт.

3

400159R1

BUMPER

INSULATOR, radiator rubber

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex hd

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prevailing torque opt with 597670R1 nut

2шт.

597670R1

NUT

1/2-13 prevailing torque opt with 9413967 nut

2шт.

460908R1

WASHER

.531 x 1.500 x .105

2шт.

4

614200R1

ADAPTER

ADAPTOR, radiator drain valve

1шт.

5

614201R1

VALVE

radiator drain

1шт.

6

828231C1

ANGLE

radiator side support w/out welded nuts, For service order 831220C1 angle assy

2шт.

6

831220C1

ANGLE

ASSY, radiator side support with welded nuts

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

7

828682C1

SUPPORT

radiator side LH

1шт.

8

828683C1

SUPPORT

radiator side RH

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex hd

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

9

828609C1

RADIATOR HOSE,1.50" ID x 14.90", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

Upper 1.50" ID x 14.90", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

1шт.

10

830144C2

RADIATOR HOSE,1.50" ID, 2.00" ID x 10.80", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

Lower 1.50" ID, 2.00" ID x 10.80", SAE 20R4 CLASS SC OR SAE 20R4 CLASS R

1шт.

11

995221R1

CLAMP

hose upper

2шт.

12

995222R1

CLAMP

hose lower

2шт.
