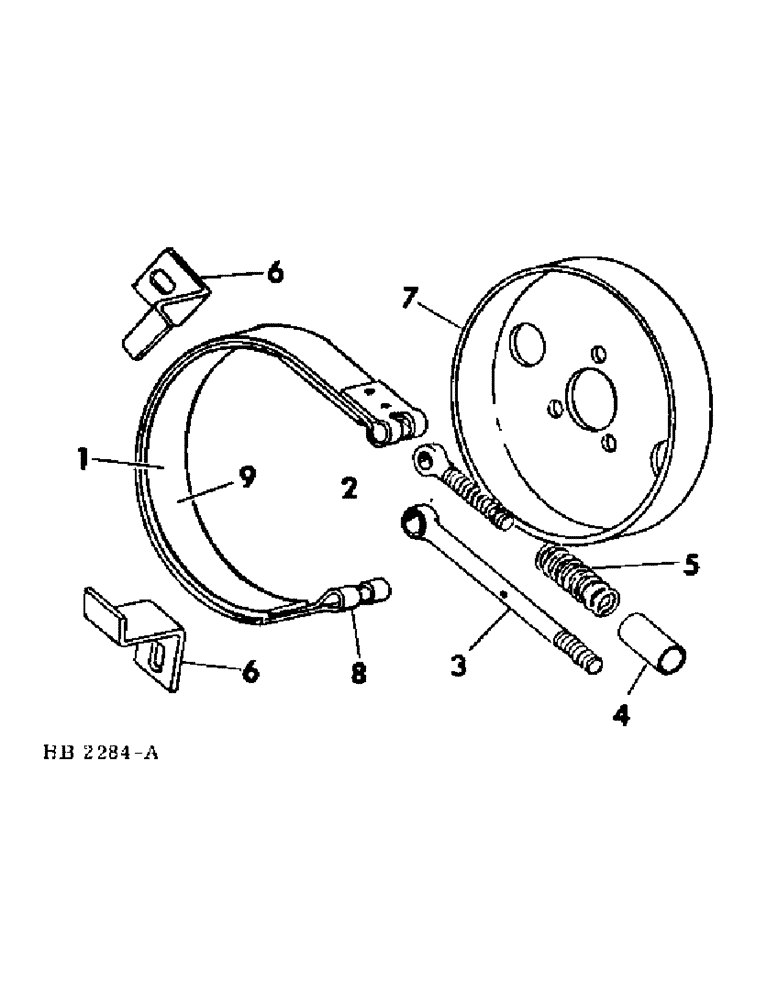

Запчасти Case IH 5500 (04-03) - BRAKES (5.1) - BRAKES

1

828027C92

BAND

ASSY, brake bonded lining type, Consists of

2шт.

NSS

NOT SOLD SEPARAT

LINING

1шт.

NSS

NOT SOLD SEPARAT

STRAP

1шт.

53795V

RIVET,Csk Hd, 3/16" x 5/16"

3/16 x 5/16 ctsk hd tub brass, For use w/rivet type band

10шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1.906 clevis pltd

4шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

2

828719C1

BOLT, 4-1/2 in. length brake band eye, For use on 4000 Windrower prior to serial no. 2701, For use on 5000 Windrower prior to serial no. 1001, For use on 5500 Windrower prior to serial no. 601

2шт.

3

831396C1

BOLT

8 in. length brake band eye, For use on 4000 Windrower serial no. 2701 and since, For use on 5000 Windrower serial no. 1001 and since

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

4

354159R1

SPACER,3/8" Pipe x 13/16"

eye bolt

2шт.

5

343765R1

VALVE SPRING

SPRING, eye bolt

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

6

828598C1

RETAINER

brake band

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

.344 x .750 x .054

4шт.

7

828032C1

DRUM, brake, For connecting parts refer to final drive and brake drum

2шт.

8

STRAP, brake band, Not serviced separately order 1-828027C92 band assy

2шт.

9

LINING, brake band, Not serviced separately order 1-828027C92 band assy

2шт.
