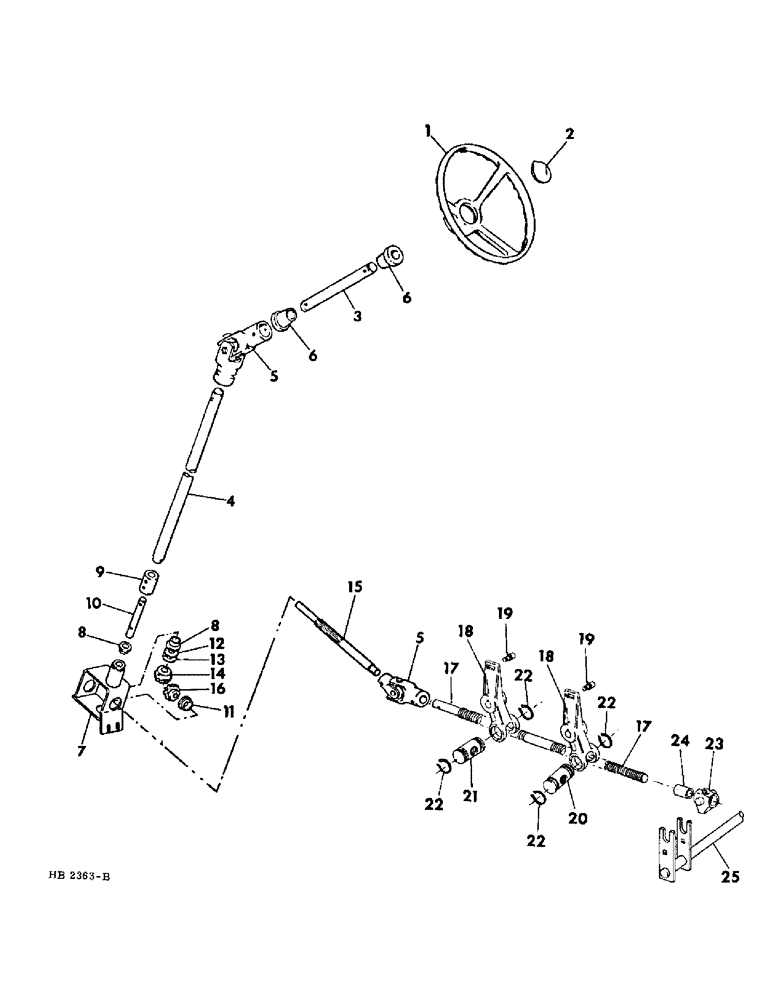

Запчасти Case IH 5000 (05-03) - STEERING, STEERING CONTROLS (04) - STEERING

1

828982C1

WHEEL

steering

1шт.

22337R1

PIN,1/4" x 2 1/2", Coiled

1шт.

21758R1

WASHER

.781 x 1.500 x .067

1шт.

2

828734C1

RETAINER

steering wheel cap

1шт.

3

829493C1

PIN

upper steering rod

1шт.

4

829494C1

SHAFT

steering

1шт.

5

829492C91

JOINT

U-JOINT, steering shaft & universal

2шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

4шт.

6

815264C1

BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L

post rod

2шт.

7

830048C91

SUPPORT ASSY, steering shaft, Includes 2-830053C1 bushing and 1-830054C1 bushing

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

4шт.

8

830053C1

BUSHING

steering pin

2шт.

9

830057C2

HUB

steering lower pin coupling

1шт.

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

10

830058C1

PIN

steering lower

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

11

830054C1

BUSHING

steering u-joint shaft

1шт.

12

852309C1

SHIM

bevel gear (Or as required)

2шт.

13

852309C1

SHIM

bevel gear, Replaces wave washer

1шт.

14

830044C1

GEAR

steering mitre

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

15

830056C2

SHAFT

steering u-joint

1шт.

16

830043C1

GEAR

steering mitre

1шт.

17

830194C2

SHAFT

speed and steering control

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex jam

2шт.

467750R1

WASHER

.781 x 1.500 x .105 (Or as required)

2шт.

18

823169C1

ARM, pintle

2шт.

19

823180C1

STUD

neutral start

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 hex flange lock

1шт.

828388C1

BELLEVILLE WASHER

1/2 spring

2шт.

20

831319C1

PIN, steering pintle arm LH thd

1шт.

21

831320C1

PIN, steering pintle arm RH thd

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90 deg lub

2шт.

608085R1

WASHER

1.406 x 2.000 x .054

1шт.

21794R1

WASHER

1.406 x 2.000 x .033

1шт.

22

659380R1

SNAP RING,#137, Ext

Ring, Snap, , pin #137, Ext

4шт.

23

823199C1

TRUNNION

steering and speed control

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90 deg lub

1шт.

24

823200C1

BUSHING

trunnion

1шт.

25

828269C2

ROD

ROCKSHAFT ASSY, speed control, For connecting parts refer to propulsion speed control section no. 7

1шт.
