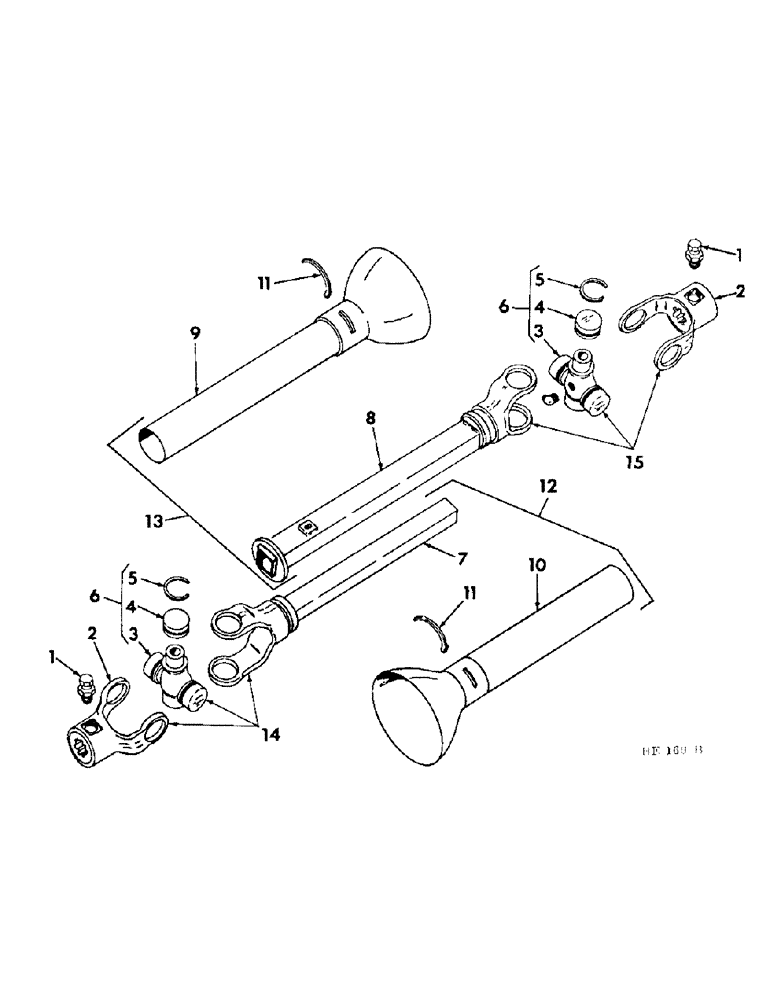

Запчасти Case IH 5000 (07-26) - DRIVE TRAIN, UNIVERSAL JOINT HEADER TO CHASSIS WITH PROTECTIVE SHIELD (04) - Drive Train

1

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 sq-hd cone pt set screw

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 hex jam

2шт.

2

596257R1

YOKE

front and rear connecting

2шт.

3

CROSS, universal center, Not serviced separately order 1-609144R91 cross assy

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

2шт.

4

BEARING, center cross needle, Not serviced separately order 609144R91 cross assy

8шт.

5

609154R1

RING

snap

8шт.

6

609144R91

CROSS

ASSY, center, Consists of

2шт.

NSS

NOT SOLD SEPARAT

BEARING

4шт.

609154R1

RING

4шт.

NSS

NOT SOLD SEPARAT

CROSS

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

1шт.

7

599636R1

YOKE

AND BAR, universal

1шт.

8

599637R2

YOKE

AND TUBE, universal, Includes 1-271432 fitting

1шт.

271432

LUBE NIPPLE,1/4" x .47 lg, Drive

FITTING, 1/4-28 lub drive

1шт.

9

599638R2

SHIELD

inner

1шт.

10

599639R3

SHIELD

outer

1шт.

11

599640R1

KIT

shield bearing service, Consists of 6-nylon bearings

1шт.

12

825002C93

JOINT

ASSY, shaft half w/shield, Consists of

1шт.

599639R3

SHIELD

1шт.

827463C91

JOINT

ASSY

1шт.

13

825003C92

JOINT

ASSY, tube half w/shield, Consists of

1шт.

599638R2

SHIELD

1шт.

827464C91

JOINT

ASSY

1шт.

14

827463C91

JOINT

ASSY, shaft, Consists of

1шт.

599636R1

YOKE

& SHAFT

1шт.

609144R91

CROSS

ASSY

1шт.

596257R1

YOKE

1шт.

124934

HOSE

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW

1шт.

15

827464C91

JOINT

ASSY, tube, Consists of

1шт.

599637R2

YOKE

& TUBE

1шт.

609144R91

CROSS

ASSY

1шт.

596257R1

YOKE

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW

1шт.
