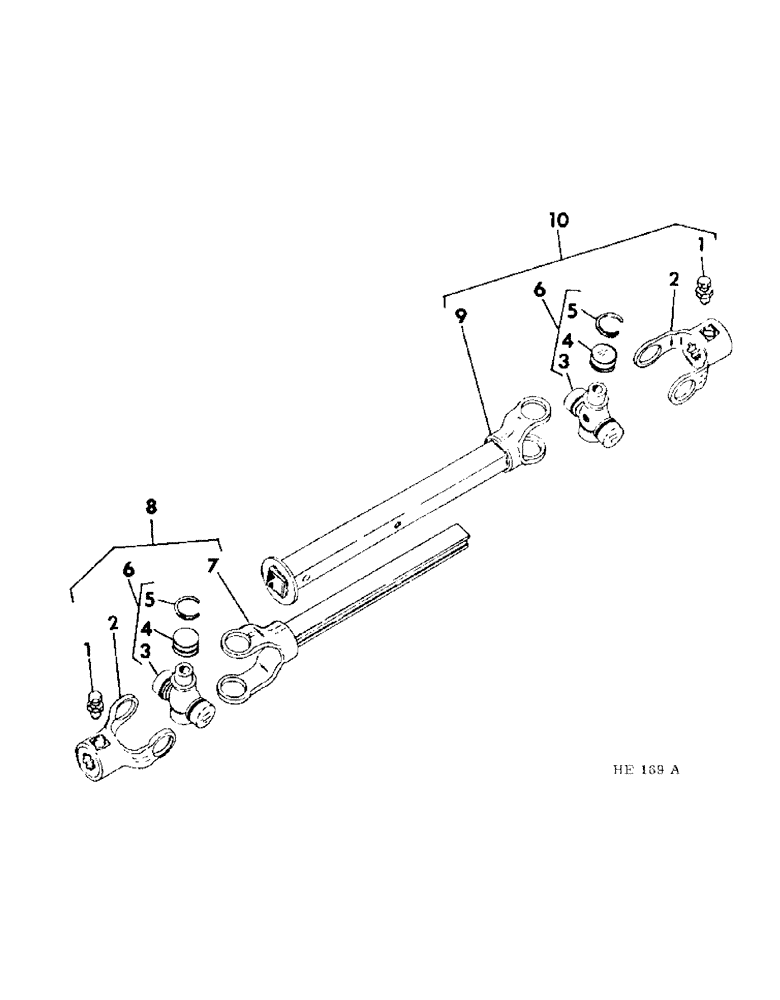

Запчасти Case IH 5000 (07-25) - DRIVE TRAIN, UNIVERSAL JOINT HEADER TO CHASSIS WITH OUT PROTECTIVE SHIELD (04) - Drive Train

1

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 X 1-3/16 sq-hd cone pt set screw

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 hex jam

2шт.

2

596257R1

YOKE

front and rear connecting

2шт.

3

CROSS, universal center, Not serviced separately order 1-609144R91 cross assy

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

2шт.

4

BEARING, center cross needle, Not serviced separately order 609144R91 cross assy

8шт.

5

609154R1

RING

snap

8шт.

6

609144R91

CROSS

ASSY, center, Consists of

2шт.

NSS

NOT SOLD SEPARAT

BEARING

4шт.

609154R1

RING

4шт.

NSS

NOT SOLD SEPARAT

CROSS

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

1шт.

7

596258R91

YOKE AND SHAFT, universal joint, For service order 1-599636R91 joint assy

1шт.

8

596255R91

JOINT

ASSY, shaft half, For service order 1-827463C91 joint assy, Consists of

1шт.

596258R91

YOKE & SHAFT

1шт.

609144R91

CROSS

ASSY

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW

1шт.

9

829157C1

JOINT

YOKE AND TUBE, universal joint, Includes 1-109454 fitting, For service order 1-599637R2 yoke and tube

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

10

828481C91

JOINT

ASSY, tube half, For service order 1-827464C91 joint assy, Consists of

1шт.

829157C1

JOINT

YOKE & TUBE

1шт.

609144R91

CROSS

ASSY

1шт.

596257R1

YOKE

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW

1шт.
