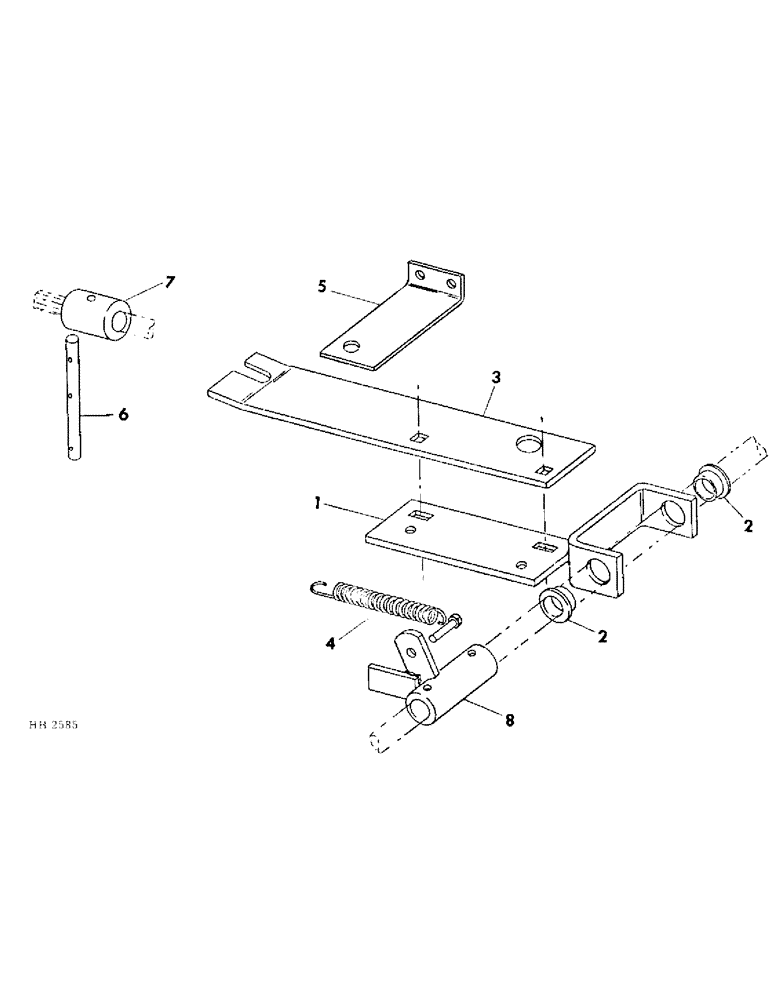

Запчасти Case IH 5000 (07-23) - DRIVE TRAIN, PROPULSION AND STEERING NEUTRAL INTERLOCK (04) - Drive Train

1

831374C91

ARM

ASSY, neutral start, Includes 2-595252R1 bushings

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

interlock stop

1шт.

2

595252R1

BUSHING

arm pivot

2шт.

3

824682C1

BAR

interlock, Replaces 831512C2

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

4

510029R1

SPRING

neutral start

1шт.

5

831659C1

SUPPORT, neutral switch

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

831539C1

PIN

interlock, For use w/rigid steering

1шт.

6

831510C1

PIN

interlock, For use w/tilt steering

1шт.

364436R1

PIN,3/16" x 1", Coiled

3шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

7

831506C1

HUB

interlock pin, For connecting parts refer to steering controls section 5

1шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8-16 x 1/2 hex soc cpt set

1шт.

8

831508C1

ARM

ASSY, brake rockshaft coupling, For connecting parts refer to brake controls section 4

1шт.
