Запчасти Case IH 5000 (07-21) - DRIVE TRAIN, HYDROSTATIC MOTOR-FIXED (04) - Drive Train

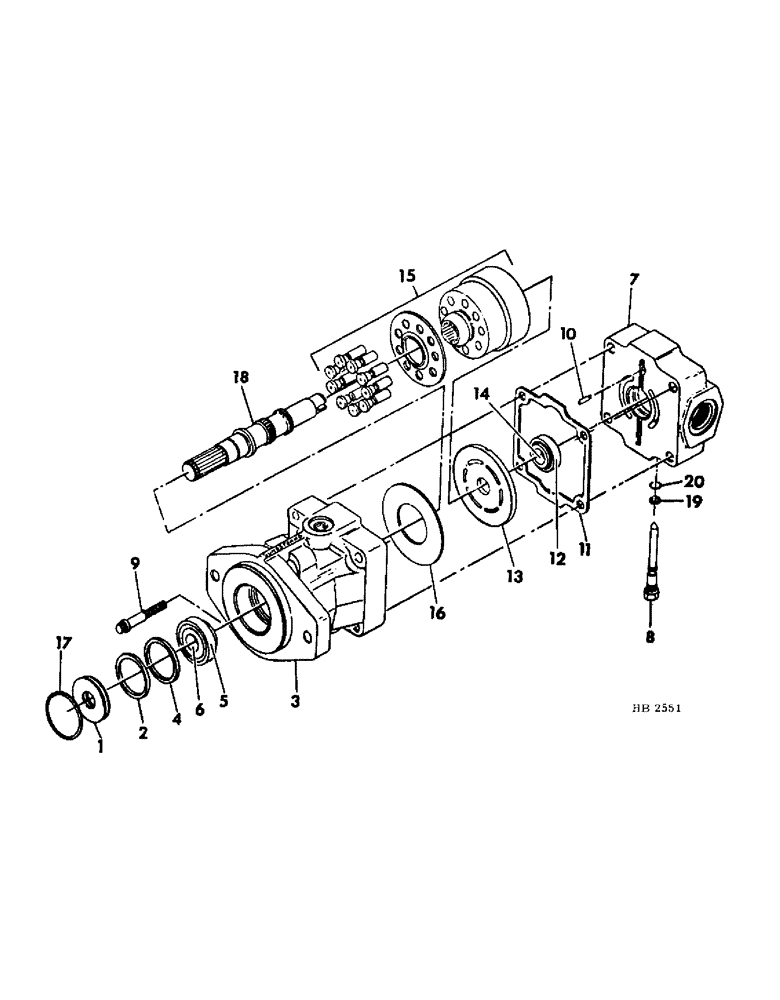

Схема запчастей Case IH 5000 - (07-21) - DRIVE TRAIN, HYDROSTATIC MOTOR-FIXED (04) - Drive Train

Артикул

Название

Примечание

Количество

123063C92

MOTOR

ASSY, hydrostatic fixed, Includes all parts listed

2шт.

1

123100C1

SEAL

shaft lip

1шт.

2

133487C1

RING

bearing retainer

1шт.

3

HOUSING, motor, Not serviced separately order 1-123063C92 motor assy

1шт.

4

133486C1

WASHER

bearing retainer

1шт.

5

572564R1

BEARING CUP

BEARING, cup

1шт.

6

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING, front cone

1шт.

7

HOUSING, end cap, Not serviced separately order 1-123063C92 motor assy

1шт.

8

133484C1

VALVE

by-pass w/9/16-18 unf thread and 3.307 inch length

1шт.

9

133482C1

VALVE

by-pass w/5/8-18 unf thread and 3.195 inch length

1шт.

9

319675R1

SCREW, 7/16 x 2.500 type 8 12 Pt Flg, 7/16"-14 x 2 1/2", G8

4шт.

133481C1

WASHER, plain

4шт.

10

133466C1

PIN

valve plate

1шт.

11

71905C1

GASKET

end cap

1шт.

12

651814R1

BEARING CUP

BEARING, rear cup

1шт.

224331C1

SHIM

bearing cup

1шт.

13

133467C1

PLATE

valve

1шт.

14

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, rear cone

1шт.

14

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

15

133468C91

KIT

cylinder block

1шт.

16

133470C1

PLATE

thrust

1шт.

17

133488C1

RING

lip seal retaining

1шт.

18

133485C1

SHAFT

motor

1шт.

19

71893C1

WASHER, valve back-up, For use w/133484C1 valve

1шт.

19

133483C1

WASHER

valve back-up, For use w/133482C1 valve

1шт.

20

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

valve, For use w/133484C1 valve

1шт.

20

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

valve, For use w/133482C1 valve

1шт.

123099C1

KIT

PACKAGE, gasket and seal, Consist of

1шт.

71905C1

GASKET

1шт.

123100C1

SEAL

1шт.

71893C1

WASHER

1шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 32
