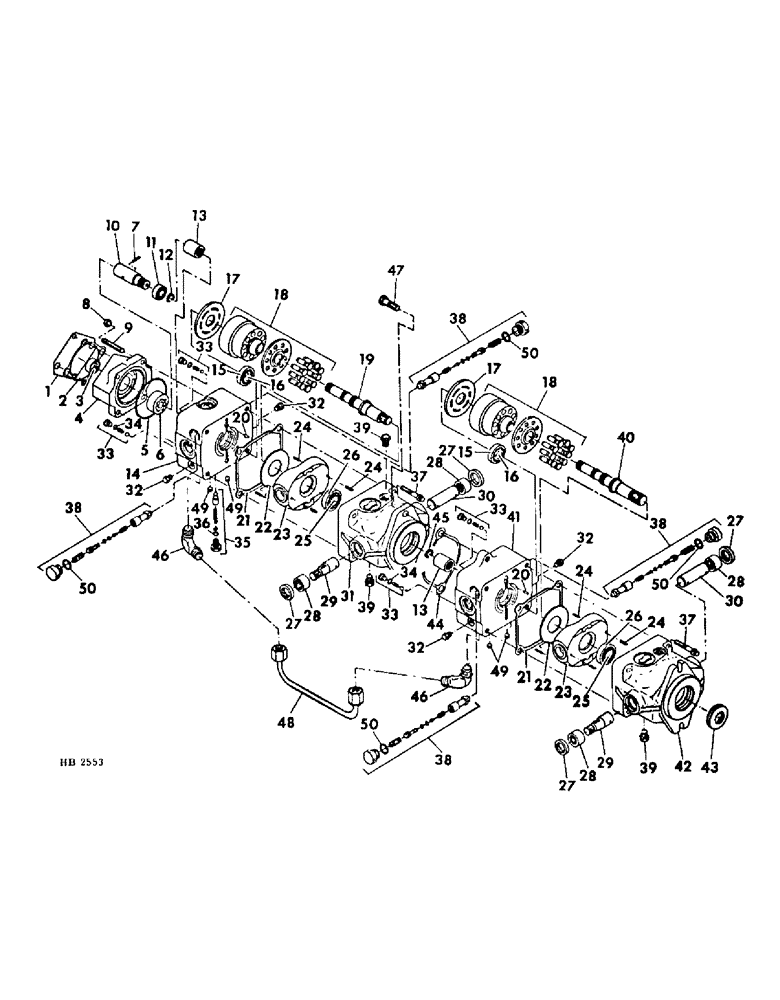

Запчасти Case IH 5000 (07-15) - DRIVE TRAIN, TANDEM PUMP (04) - Drive Train

123061C91

PUMP ASSY, tandem propulsion, For use on 4000 Windrowers prior to serial no. 1451, For use on 5000 Windrowers prior to serial no. 901

1шт.

128138C91

PUMP

ASSY, tandem propulsion, For use on 4000 Windrowers serial no. 1451 and since, For use on 5000 Windrowers serial no. 901 and since, For use on 5500 Windrowers serial no. 501 to 600, Consists of

1шт.

1

COVER, charge pump, Not serviced separately order 1-123091C91 pump assy

1шт.

2

71896C1

GASKET

cover

1шт.

3

BEARING, charge pump needle, Not serviced separately order 1-123091C91 pump assy

1шт.

4

HOUSING, charge pump, Not serviced separately order 1-123091C91 pump assy

1шт.

5

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

charge pump

1шт.

6

GEROTOR ASSY, pump, Not serviced separately order 1-123091C91 pump assy

1шт.

7

133476C1

PIN

shaft

1шт.

8

120376

NUT,5/16"-18, G5

4шт.

9

133479C1

STUD

pump

4шт.

10

133478C1

SHAFT

charge pump drive

1шт.

11

133477C91

BALL BEARING,0.7874" ID x 1.4567" OD x 0.3543"

ASSY, ball

1шт.

12

303004R1

SNAP RING,#78, Ext

1шт.

13

133465C1

COUPLING

pump

2шт.

14

HOUSING, front pump end cap, Not serviced separately order correct pump assy

1шт.

15

651814R1

BEARING CUP

BEARING, front cup

2шт.

16

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, front cone

2шт.

16

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

17

133467C1

PLATE

valve

2шт.

18

133468C91

KIT

cylinder block

2шт.

19

133472C1

SHAFT

front pump

1шт.

20

133466C1

PIN

valve plate

2шт.

21

71895C1

GASKET

end cap

2шт.

22

133470C1

PLATE

thrust

2шт.

23

133469C1

LARGE PLATE

HOUSING, swashplate

2шт.

24

19738R1

PIN,5/16" x 3/4", Coiled

8шт.

25

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING, rear cone (Replaces 463911R1)

2шт.

26

572564R1

BEARING CUP

BEARING, rear cup

2шт.

224331C1

SHIM

bearing cup

1шт.

27

123101C1

SEAL

trunnion shaft lip

4шт.

28

133475C1

BEARING

ASSY, needle

4шт.

29

133474C1

SHAFT

tapered trunnion

2шт.

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

2шт.

30

133473C1

SHAFT

trunnion

2шт.

31

HOUSING, pump front, Not serviced separately order correct pump assy

1шт.

32

9410356

PLUG

7/16-20 str thd hex, Used on 123061C91 pump, 4 used on 128138C91 pump

8шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube per plug

1шт.

33

123094C1

KIT

PACKAGE, check valve, Consists of

4шт.

NSS

NOT SOLD SEPARAT

PLUG

1шт.

NSS

NOT SOLD SEPARAT

BALL

1шт.

NSS

NOT SOLD SEPARAT

SPRING

1шт.

35

123093C1

KIT

PACKAGE, charge reg valve, Consists of

1шт.

NSS

NOT SOLD SEPARAT

PLUG

1шт.

NSS

NOT SOLD SEPARAT

SHIM

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

NSS

NOT SOLD SEPARAT

VALVE

1шт.

NSS

NOT SOLD SEPARAT

SPRING

1шт.

36

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

charge reg valve, Part of 123092C91, 123093C91 and 123095C91 package

1шт.

37

27992R1

SCREW,Hex Soc Hd, 7/16"-14 x 2 1/4"

7/16-14 x 2-1/4 soc-hd cap

4шт.

38

123092C1

KIT

PACKAGE, relief valve, For us w/123061C91 tandem pump assy only

4шт.

39

9410361

PLUG

1-1/16-12 str thd hex

3шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

3шт.

40

133471C1

SHAFT

rear dump

1шт.

41

HOUSING, end cap rear, Not serviced separately order correct pump assy

1шт.

42

HOUSING, pump rear, Not serviced separately order correct pump assy

1шт.

43

123096C1

SEAL

input shaft lip

1шт.

44

71894C1

GASKET

pump

1шт.

45

374790R1

SNAP RING,0.688", Int, #68

Ring, Snap, 0.688", Int, #68

1шт.

46

9410099

ELBOW,45º, 3/4"-16, 37º x 3/4"-16, O-Ring

3/4-16 45 deg 37 deg flared

2шт.

47

138292

SCREW,1/2" - 13 x 1 1/2"

1/2-13 x 1-1/2 soc-hd cap

2шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

48

71904C1

TUBE,500 mm OD, 920 mm Length

ASSY, charge

1шт.

49

PLUG, 1/8-27 pipe -9005001-1200 sundstrand part

4шт.

50

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

relief valve, For use w/123061C91 tandem pump assy only

1шт.

123091C91

KIT

PUMP ASSY, charge, Consists of

1шт.

NSS

NOT SOLD SEPARAT

COVER

1шт.

NSS

NOT SOLD SEPARAT

SCREW

2шт.

NSS

NOT SOLD SEPARAT

SCREW

2шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

NSS

NOT SOLD SEPARAT

GEROTOR

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

133467C1

PLATE

PIN

1шт.

71896C1

GASKET

1шт.

123095C91

GASKET

Gasket and seal, Consist of

1шт.

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

71894C1

GASKET

1шт.

71895C1

GASKET

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

7шт.

71896C1

GASKET

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

34

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Check valve, Part of 123094C1 package

4шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

4шт.
