Запчасти Case IH 5000 (07-14) - DRIVE TRAIN, TWO SPEED VARIABLE CONTROLS (04) - Drive Train

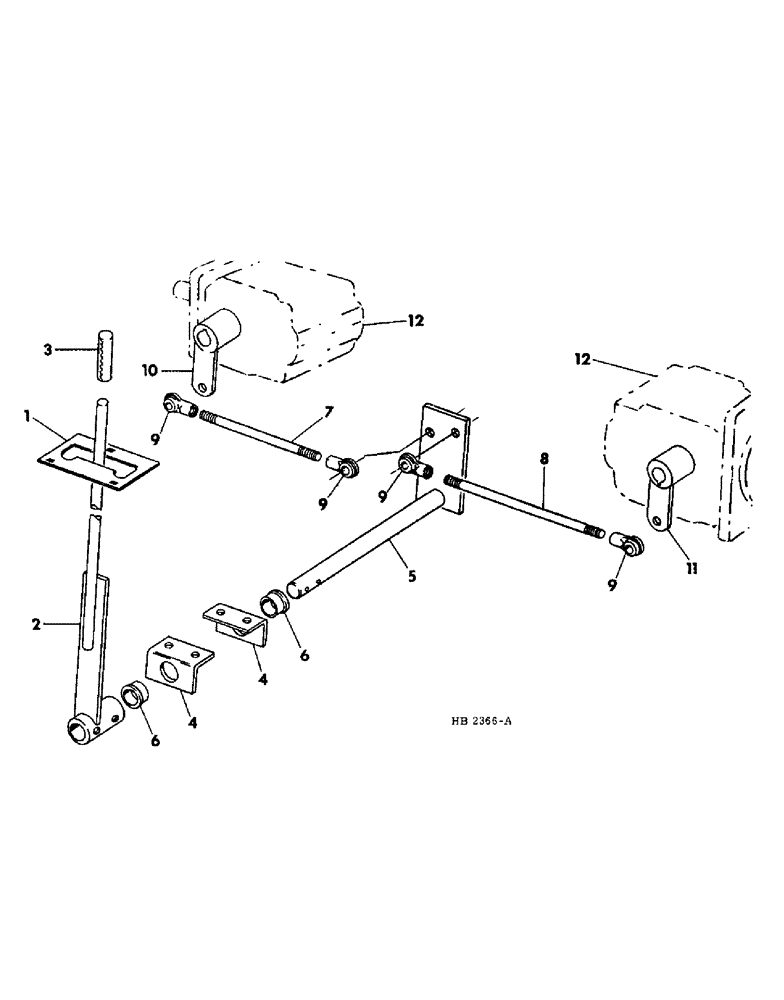

Схема запчастей Case IH 5000 - (07-14) - DRIVE TRAIN, TWO SPEED VARIABLE CONTROLS (04) - Drive Train

Артикул

Название

Примечание

Количество

1

827687C1

BAR, variable control arm reinforcing

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

827810C1

ARM ASSY, variable motor control

1шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

2шт.

3

829541C1

GRIP

control rod handle

1шт.

4

828859C1

ANGLE, control rockshaft support

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

827809C1

ROCKSHAFT MOTOR CONTROL ROD

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

2шт.

6

595252R1

BUSHING

rockshaft pin

2шт.

7

827783C1

ROD

motor arm LH

1шт.

8

827784C1

ROD

motor arm RH

1шт.

9

831772C2

END

1/2-20 rod

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 prev-torque hex lock opt w/597670R1 nut

4шт.

597670R1

NUT

1/2-20 hex

4шт.

120371

NUT,1/2"-20, G5

4шт.

20601R1

WASHER

.531 x 1.250 x .105

4шт.

10

827805C1

ARM

ASSY, motor LH

1шт.

11

830313C1

ARM ASSY, motor RH

1шт.

12

128140C91

MOTOR ASSY, hydrostatic variable, For service parts refer to hydrostatic motor

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

4шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

4шт.

Выбрано товаров: 30
