Запчасти Case IH 5000 (07-13) - DRIVE TRAIN, BEVEL GEAR CASE AND PROPELLER SHAFT (04) - Drive Train

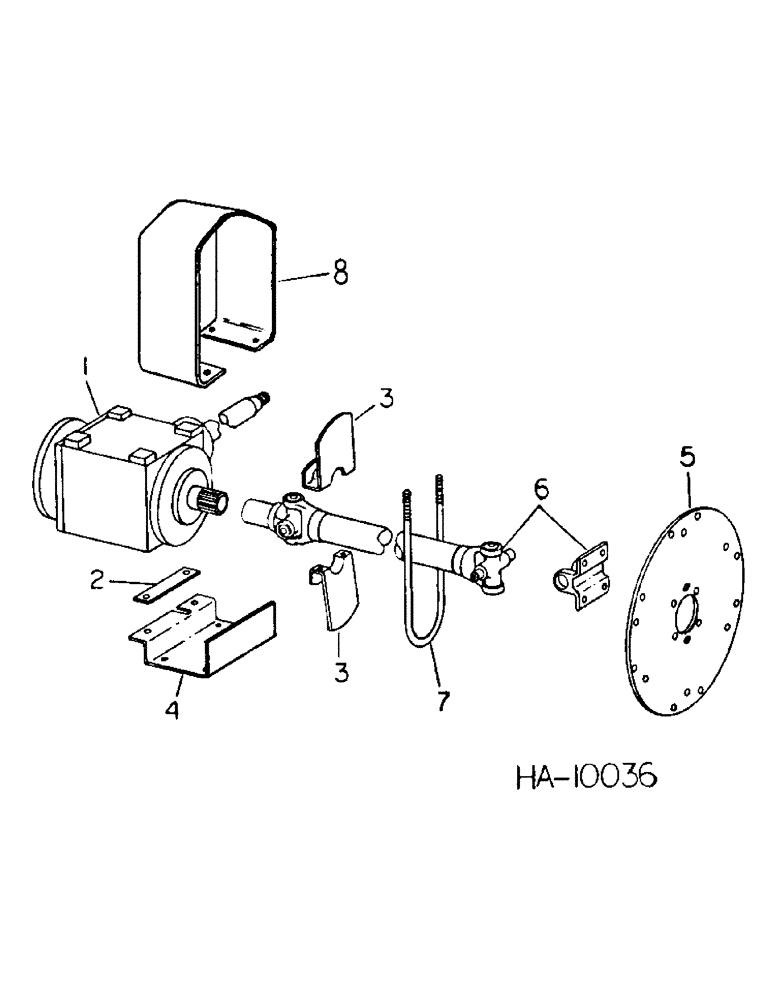

Схема запчастей Case IH 5000 - (07-13) - DRIVE TRAIN, BEVEL GEAR CASE AND PROPELLER SHAFT (04) - Drive Train

Артикул

Название

Примечание

Количество

1

830163C91

CASE

ASSY, bevel gear, For service parts refer to bevel gear case

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

2

830346C1

SHIM

gear case (Or as required)

4шт.

3

830300C2

BLADE

gear case fan

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

830321C1

SHIELD

gear case fan w/overall length 5.8 inch, For service order 1-830884C1 and 830885C1 shield, 4000-prior to serial no. 1450, 5000-prior to serial no. 750, 5500-prior to serial no. 550

1шт.

4

830884C2

SHIELD

gear case fan w/overall length 11.8 inch, 4000-serial no. 1450 and since, 5000-serial no. 750 and since, 5500-serial no., Serial Range: 550-600

1шт.

5

827803C2

PLATE

final drive adaptor

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, For use on C-232 engine

6шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd, For use on HB-225 engine

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, For use on D-239 engine

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Diesel 5/16"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Gas 3/8"

6шт.

6

827804C93

JOINT

ASSY, P.T.O., For service parts refer to power-take-off joint

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

828387C1

BELLEVILLE WASHER

3/8 spring

4шт.

25522R1

NUT,3/8"-16, G8

3/8-16 hex-phc type 8

4шт.

7

829229C1

BOLT,3/8" - 16 x 9 5/8"

U-BOLT, u-joint support

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

8

830736C1

SHIELD

gear case fan upper, For use w/830321C1 shield, For service order 1-830884C1 and 830885C1 shield, 4000-prior to serial no. 1450, 5000-prior to serial no. 750, 5500-prior to serial no. 550

1шт.

8

830885C2

SHIELD

gear case fan upper, For use with 830884C1 shield, 4000-serial no. 1450 and since, 5000-serial no. 750 and since, 5500-serial no., Serial Range: 550-600

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Выбрано товаров: 31
