Запчасти Case IH 5000 (07-11) - DRIVE TRAIN, BEVEL GEAR CASE (04) - Drive Train

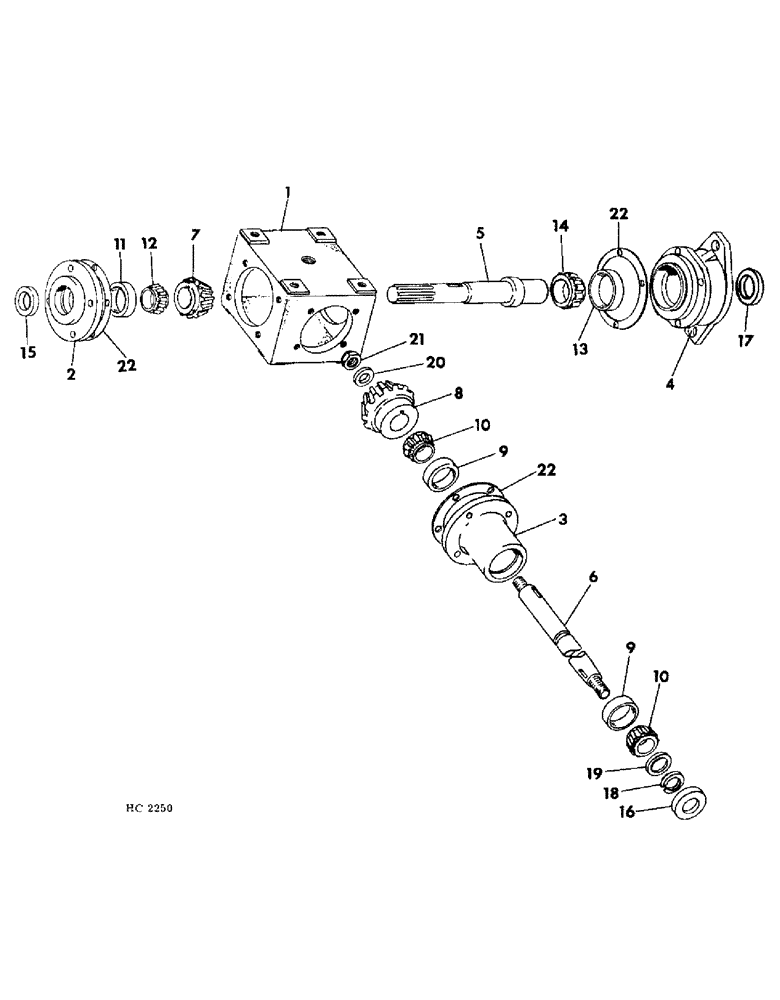

Схема запчастей Case IH 5000 - (07-11) - DRIVE TRAIN, BEVEL GEAR CASE (04) - Drive Train

Артикул

Название

Примечание

Количество

830163C91

CASE

ASSY, bevel gear, Includes all parts listed

1шт.

1

920288C1

CASE

1шт.

444703

PLUG,Hex Soc, 1/2"-14

1/2 hex socket pipe

2шт.

18437R91

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

FITTING, breather

1шт.

920307C1

BUSHING

1шт.

2

827838C1

CAP

end

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

920199C1

HOUSING

pinion

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

829181C1

CAP

mtg end

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

830164C1

SHAFT

output

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

6

828628C1

SHAFT

pinion

1шт.

7

923592C1

GEAR

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

8

923593C1

GEAR

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

9

651817R1

BEARING CUP

CUP, pinion housing bearing

2шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, pinion housing bearing

2шт.

11

350772R1

CUP ASSY.

CUP, end cap bearing

1шт.

12

827845C91

BEARING, ROLLER

CONE, end cap bearing

1шт.

13

453012R1

BEARING CUP

CUP, mtg end cap bearing

1шт.

14

453011R91

ROLLER BEARING,1.5" ID x 2.717" OD x 0.75"

CONE, mtg end cap bearing

1шт.

15

827846C1

OIL SEAL

end cap

1шт.

16

827847C1

OIL SEAL

pinion housing

1шт.

17

827848C1

OIL SEAL

mtg end cap

1шт.

18

548628R1

RING

output shaft snap

1шт.

19

920305C1

WASHER

WASHER, output shaft

1шт.

20

920306C1

WASHER

output gear

1шт.

21

827851C1

NUT

output gear

1шт.

22

928755C1

GASKET

end cap and housing (Or as required)

3шт.

Выбрано товаров: 35
