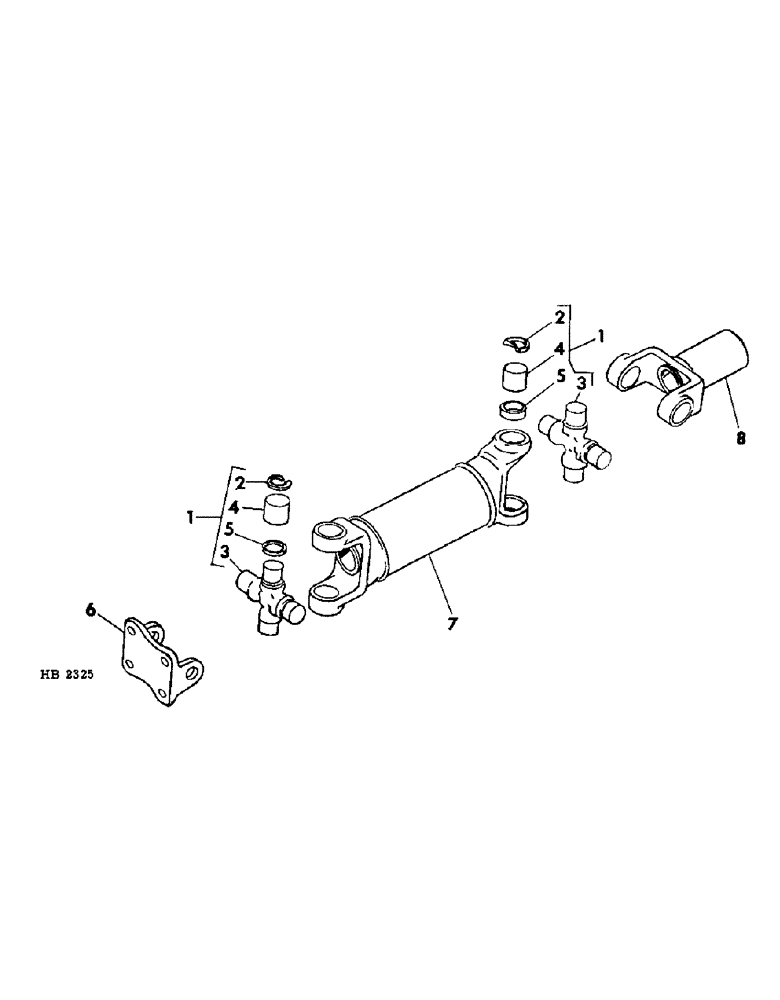

Запчасти Case IH 5000 (07-08) - DRIVE TRAIN, POWER TAKE-OFF JOINT (04) - Drive Train

827804C93

JOINT

U-JOINT ASSY, propeller shaft, Consists of all parts listed

1шт.

1

645573R91

PACKAGE, REPAIR

KIT, spider & bearing, Consists of

2шт.

131591H

RING

4шт.

NSS

NOT SOLD SEPARAT

SPIDER

1шт.

NSS

NOT SOLD SEPARAT

BEARING

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

915221R1

SEAL

GASKET

4шт.

2

131591H

RING, bearing retainer

8шт.

3

SPIDER, u-joint assy, Not serviced separately order 645573R91 kit

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

4

BEARING, spider, Not serviced separately order 645573R91 kit

8шт.

5

915221R1

SEAL

GASKET, spider

8шт.

6

131601H

FLANGE

YOKE, flange

1шт.

7

827623C2

SHAFT

u-joint

1шт.

8

827624C2

YOKE

slip

1шт.
