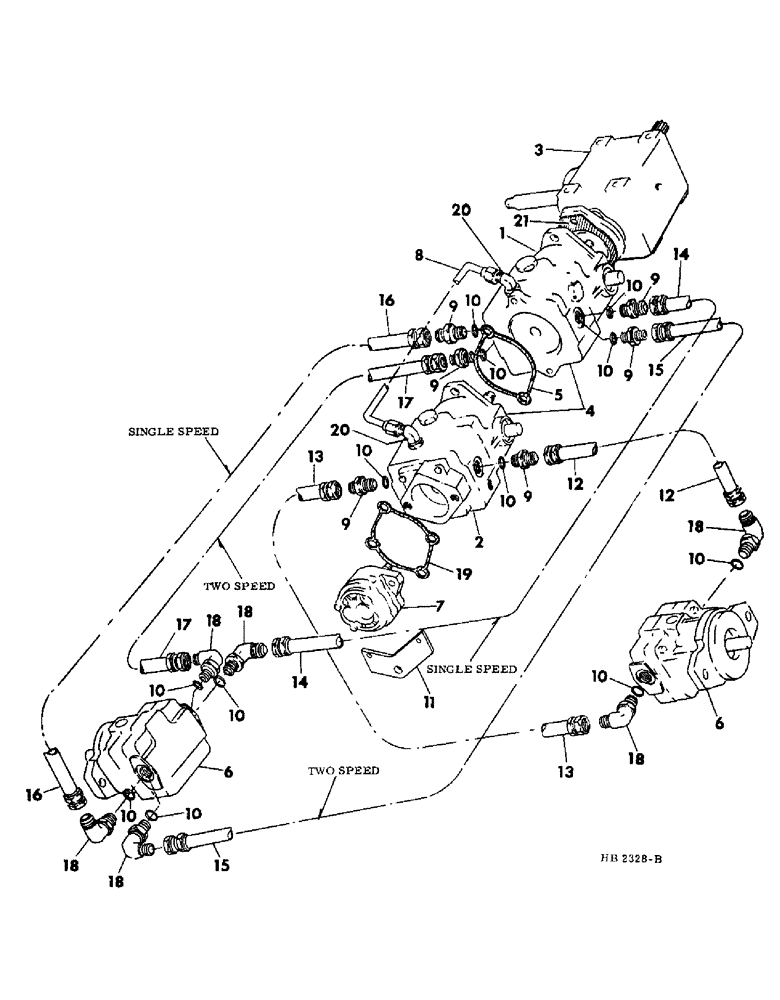

Запчасти Case IH 5000 (07-01) - DRIVE TRAIN, TANDEM PUMP WITH HYDROSTATIC MOTORS AND CONNECTIONS (04) - Drive Train

1

PUMP ASSY, bevel gear case to second tandem pump, For service parts refer to tandem pump

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

PUMP ASSY, auxiliary pump to first pump, For service parts refer to tandem pump

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-3/4 hex hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

3

830163C91

CASE

ASSY, bevel gear, For service parts refer to bevel gear case

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

4

123061C91

PUMP ASSY, tandem propulsion, For use on 4000 Windrower prior to serial no. 1451, For use on 5000 Windrower prior to serial no. 901

1шт.

4

128138C91

PUMP

ASSY, tandem propulsion, For use on 4000 Windrower serial no. 1451 and since, For use on 5000 Windrower serial no. 901 and since, For use on 5500 Windrower serial no. 501 to 600, For service parts refer to tandem pump

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex hd

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

120376

NUT,5/16"-18, G5

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

5

71894C1

GASKET

pump no. 1 to pump no. 2 part of tandem pump assy

1шт.

6

123063C92

MOTOR

ASSY, hydrostatic fixed, For use on 4000 Windrower prior to serial no. 1451, For use on 5000 Windrower prior to serial no. 901

2шт.

6

128139C92

REMAN-HYD MOTOR

MOTOR ASSY, hydrostatic fixed, For use on 4000 Windrower serial no. 1451 and since, For use on 5000 Windrower serial no. 901 to 1000, For use on 5000 Windrower serial no. 1001 and since with fixed single speed hydrostatic motors

2шт.

6

128140C91

MOTOR ASSY, hydrostatic variable, For use on 5000 Windrower serial no. 1001 and since with variable two speed hydrostatic motors, For use on 5500 Windrower serial no. 501 to 600, For service parts refer to hydrostatic motor

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltted

4шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

4шт.

7

PUMP, hydraulic auxiliary, For service parts refer to hydraulic auxiliary pump section 10

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

71904C1

TUBE,500 mm OD, 920 mm Length

no. 1 pump to no. 2 pump part of tandem pump assy

1шт.

9

163915C1

FITTING

hi pressure

4шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in OD tube

8шт.

11

830084C1

SUPPORT, pump mounting front

1шт.

12

827817C1

TUBE

LH motor reverse, For service order 1-832059C1 hose, 1-150776C91 elbow, 1-380633R1 connector and 2-296247R1 o-rings

1шт.

13

827820C1

TUBE

LH motor forward, For use on 4000 & 5000 Windrowers with fixed single speed hydrostatic motors

1шт.

13

829070C1

TUBE

LH motor forward, For use on 5000 & 5500 Windrowers with variable two speed hydrostatic motors, For service on fixed single or variable two speed hydrostatic motors order 1-832059C1 hose, 2-380633R1 connectors and 2-296247R1 o-rings

1шт.

14

827819C1

TUBE

RH motor reverse, For use on 4000 & 5000 Windrowers with fixed hydrostatic motors

1шт.

15

829069C1

TUBE

RH motor reverse, For use on 5000 & 5500 Windrowers with variable two speed hydrostatic motors, For service on fixed single or variable two speed hydrostatic motors order 1-832059C1 hose, 2-830633R1 connectors and 2-296247R1 o-rings

1шт.

16

827818C1

TUBE

RH motor forward, For use on 4000 & 5000 Windrowers with fixed single speed hydrostatic motors, For service order 1-832105C1 hose, 2-380633R1 connector and 2-296247R1 o-rings

1шт.

17

829071C1

TUBE

RH motor forward, For use on 5000 & 5500 Windrowers with variable two speed hydrostatic motors, For service order 1-832105C1 hose, 1-150776C91 elbow, 1-380633R1 connector and 2-296247R1 o-rings

1шт.

18

595408R1

90 ELBOW

adj tube

4шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto Hex Socket

4шт.

19

71896C1

GASKET

utility pump to tandum pump to part of tandem pump assy

1шт.

20

9410099

ELBOW,45º, 3/4"-16, 37º x 3/4"-16, O-Ring

45 deg 37 deg flared tube part of tandem pump assy

2шт.

21

538898R1

GASKET

pump

1шт.
