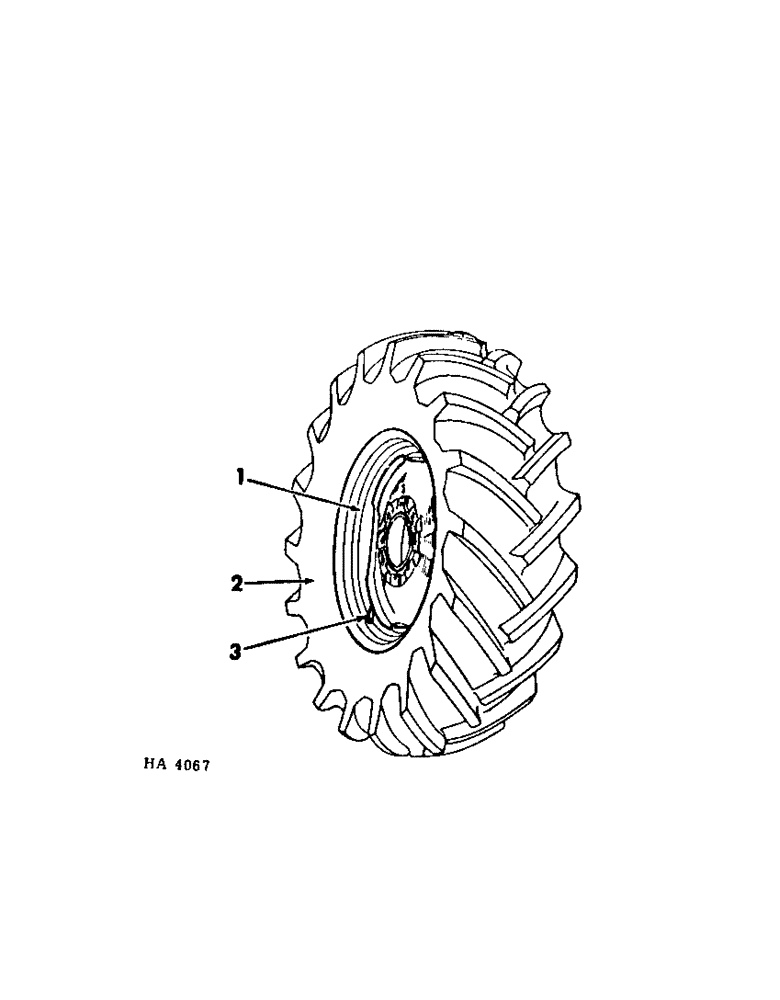

Запчасти Case IH 5000 (15-01) - TRACTION, MAIN WHEEL Wheels & Traction

1

828307C1

WHEEL

W10B-20 main, For use on 4000 Windrower prior to serial no. 3250

2шт.

1

820097C1

WHEEL

16.1 x W11C main, For use on 4000 - 5000 - 5500 Windrowers

2шт.

1

831430C1

RIM

WHEEL, 16.1 x 16 LB main, For use on 4000 Windrowers serial no. 3250 and since with dual rear axles, For use on 5000 Windrowers serial no. 1001 and since with dual rear axles, For use on 5500 Windrowers

2шт.

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

wheel

16шт.

554480R1

WHEEL NUT

wheel

16шт.

2

TIRE, 12.5L-20 4 ply 1-3 tubeless lug type shown, For use with 828307C1 wheel

2шт.

2

TIRE, 16.5L-16.1 6 ply 1-3 tubeless diamond or lug type, For use with 820097C1 wheel

2шт.

2

TIRE, 21.5L-16.1 6 ply R-3 tubeless diamond type, For use with 831430C1 wheel

2шт.

3

387897R91

VALVE STEM

VALVE, TR-415 tire

2шт.
